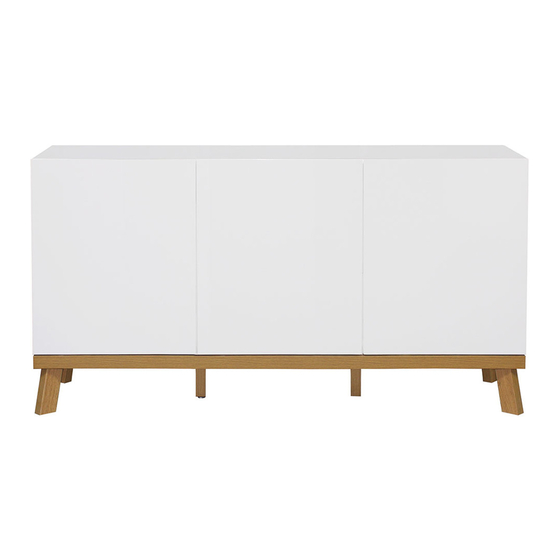

Addi Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
dowel
screw
x8
x20
x28
I
J
K
double
wedge
screw
x8
x8
ended
screw
x2
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
screw
locking
hinge
x36
nut x20
x4
L
M
N
Allen
plastic
long
nut
x4
key x1
glide x4
Allen
bolt x 4
Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
hinge
height
x2
adjuster
x2
O
Q
P
big
sticker
dowel
x4
x4
V
W
X
safety
screw
wall
x2
strap x2
anchor
x2
Wall Strap
Y
Z
wall
washer
screw
x4
x2
1
Advertisement
Related Manuals for Mocka Addi Buffet
Summary of Contents for Mocka Addi Buffet
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 2x bolts (C) into panel [5] as shown. Flip panel [5] and insert 2x bolts (C) into the other side of the panel as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [5] and [6] to the panel [7] with 4x dowel [A] and secure insert 2x bolts (C) into the other side of the panel as shown. with 4x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panel [4] to the panel [7] with 2x dowel (A) and secure with with 4x locking nuts (D). Tighten with a screwdriver. 2x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Cover the holes of panel [2] using 4x stickers (Q) as shown. Attach leg panels [10] to panel [2] and secure with 2x double ended screws (I). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [2] to the panels [3], [4], [5] and [6] with 8x dowels (A) Attach 4x plastic glides (N) to the end of legs [9]. Insert the and secure with 8x screws (B). Tighten with a screwdriver. 2x adjuster (H) into panels [10]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Addi Buffet Assembly Instructions Slide panels [8] between the grooves of panels [3], [4], [5] and [6]. Insert 8x bolts (C) into panel [1]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach 4x hinges (F) to panels [11] and [12], securing with 8x screws (E) locking nuts (D). Tighten with a screwdriver. and attach 2x hinges (G) to panel [11], securing with 4x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 8x screws (K). Tighten with a screwdriver. Attach 2x safety straps (V) Tighten with a screwdriver. to the top of the back side of the unit as shown using 2x washers (Z) and 2x screws (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 (V). Fasten to wall using 2x washers (Z), 2x wall anchors (X) and 2x screws (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
