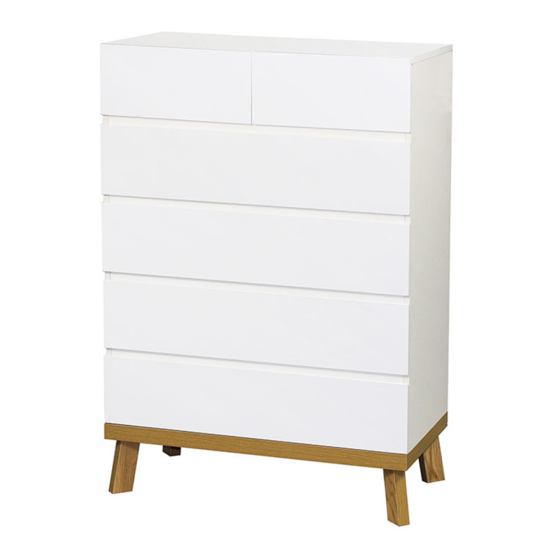

Addi Tallboy
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
D
bolt
dowel
screw
locking
x4
x21
x28
nut x21
L
K
M
Allen
screw
nut
x4
x8
key x1
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
F
G
screw
slide
slide
slide
x60
rail x6
rail x6
rail x6
Q
N
O
P
plastic
long
small
small
bolt
locking
glide x4
Allen
x28
nut x28
bolt x 4

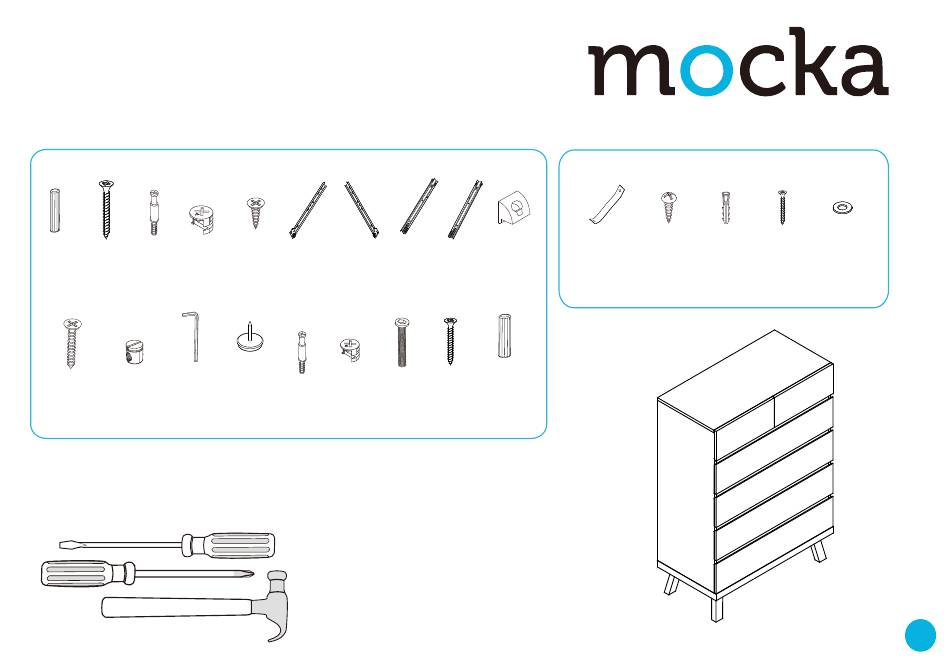

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
J
H
I
slide
wedge
strap x1
x8
rail x6
R
S
screw
big
x33
dowel
x4
V
W
X
safety
screw
wall
x1
anchor
screw
x1
Wall Strap
Y
Z
wall
washer
x2
x1
1
Advertisement
Related Manuals for Mocka Addi Tallboy
Summary of Contents for Mocka Addi Tallboy
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 14x bolts (C) into panels [3] and [4]. Tighten with a screwdriver. other side of the panel as shown and secure with 3x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panel [7] to the panel [5] and secure with 1x screw (R). Attach panel [5] to panel [6] and secure with 1x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panels [8], [9] and [10] to the panel [3] with 5x dowels (A) and secure with 2x locking nuts (D). Tighten with a screwdriver. secure with 5x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Slide panel [11] between the grooves of panels [8] as shown. Attach panel [4] to the panels [6], [7], [8], [9], and [10] with 7x dowels (A) and secure with 7x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach the legs [12] to panel [2] with 4x big dowels (S) and 4x nuts (L) back of the unit, as shown. as shown. Secure with 4x long Allen bolts (Q). Tighten with an Allen key (M). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Slide panel [11] between the grooves of panels [3] and [4]. with 4x screws (B). Tighten with a screwdriver. Attach 4x plastic glides (N) to the end of legs [12]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Insert 6x bolts (C) into panel [1]. Tighten with a screwdriver. Attach panel [1] to the unit with 6x dowels (A) and secure with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Tighten with a screwdriver. Slide panel [17] down along the grooves between to panel [15] as shown. Secure with 4x small screws (E) and panels [15] and [16] to form the base of the drawer. tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Secure with 4x small screws (E) and tighten with a screwdriver. 5x small locking nuts (P). Tighten with a screwdriver. Slide panel [21] down along the grooves between panels [15] and [16] to form the base of the drawer. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 8x screws (K). Tighten with a screwdriver. Attach 1x safety strap (V) to the top of the back side of the unit as shown using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 12 (V). Fasten to wall using 1x washer (Z), 1x wall anchor (X) and 1x screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
