Mocka Addi Entertainment Unit Assembly Instructions Manual

Addi Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C
bolt
dowel screw
x6 x12
x18
H I J
slide wedge
slide
x4
rail x2
rail x2
O Q
P R
long
screw
small small
x14
bolt locking Allen
x10 nut x10
bolt x 4

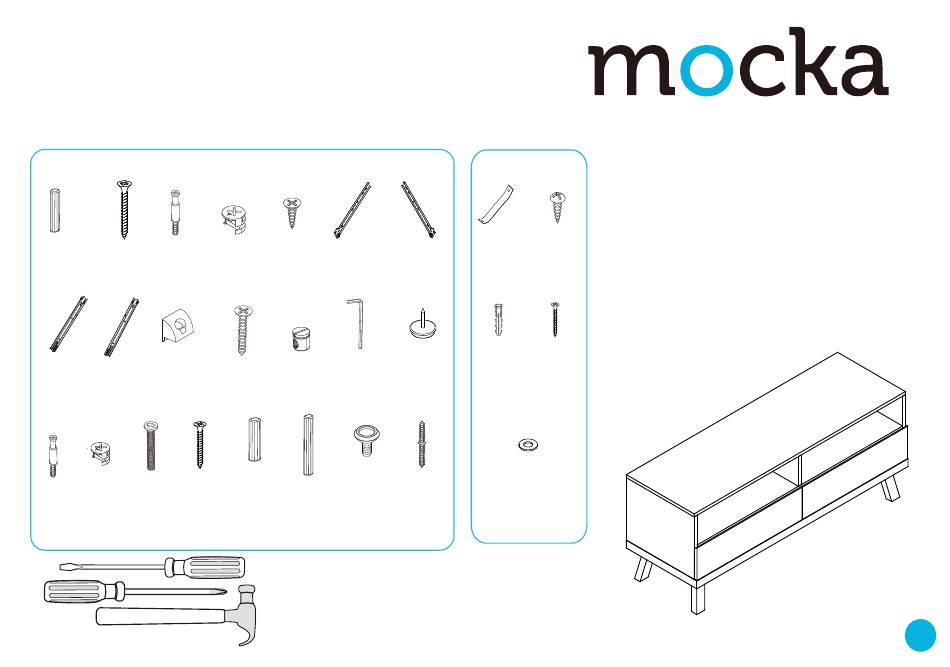

Hardware Supplied
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D E F
screw
locking slide
x20 rail x2
nut x12
K L
M
nut Allen
screw
x4
x4 key x1
S T
U
height
big long
dowel dowel adjuster
x4 x2
x1
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
V W
safety screw
slide
x1
strap x1
rail x2
X Y
N
wall wall
plastic anchor screw
x1
x1
glide x4
A1
Z
washer
double
x2
ended
screw
x1 Wall Strap
WARNING: Any furniture that is not anchored to a wall
has the potential to tip over in certain circumstances, i.e.
if a child attempts to climb up on the furniture or in the
event of an earthquake. Accordingly, we recommend
that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we
recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall
types, but please note that different wall materials may
require different fixing devices from those supplied.
1
