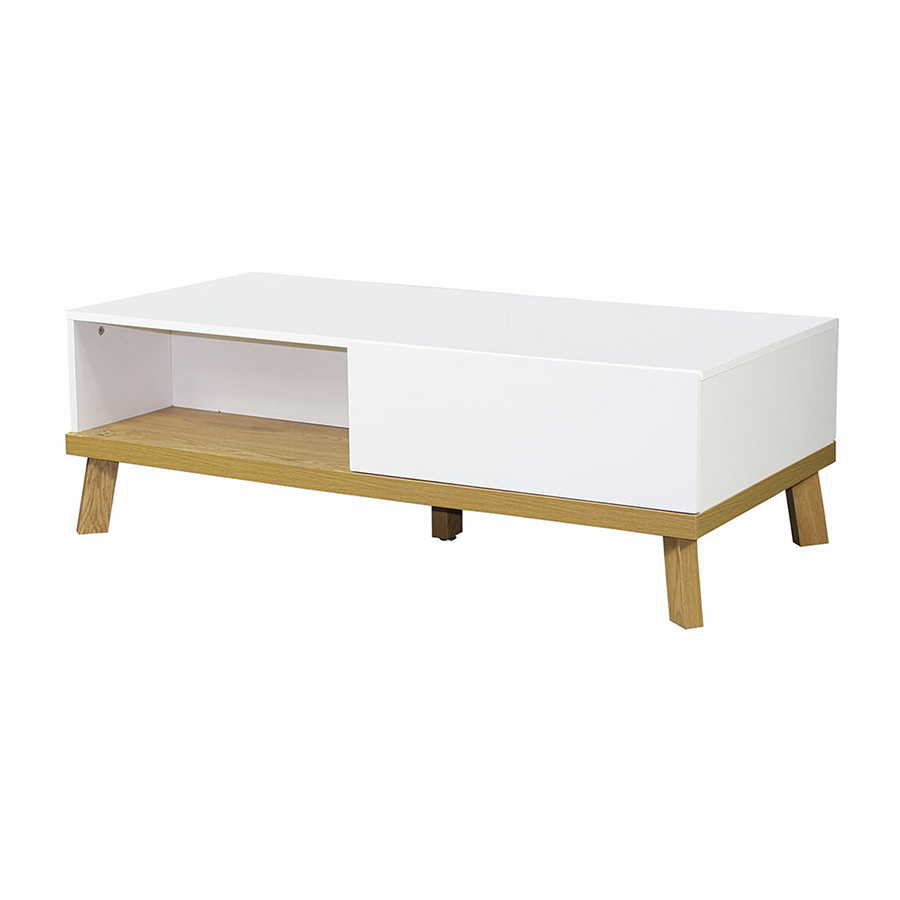

Addi Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
screw
bolt
locking
dowel
x18
x6
x6
nut x6
H
I
J
slide
slide
height
rail x2
rail x2
adjuster
screw x1
x1
Q
O
P
small
small
long
bolt
locking
Allen
x10
nut x 10
bolt x 4
Hardware Supplied
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
screw
slide
slide
x16
rail x2
rail x2
K
L
M
double
ended
plastic
nut
Allen
x4
key x1
glide x4
R
S
T
screw
sticker
big
x12
dowel
x4
x4
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
G
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
N
1
