Mocka Aspen Assembly Instructions Manual

Aspen

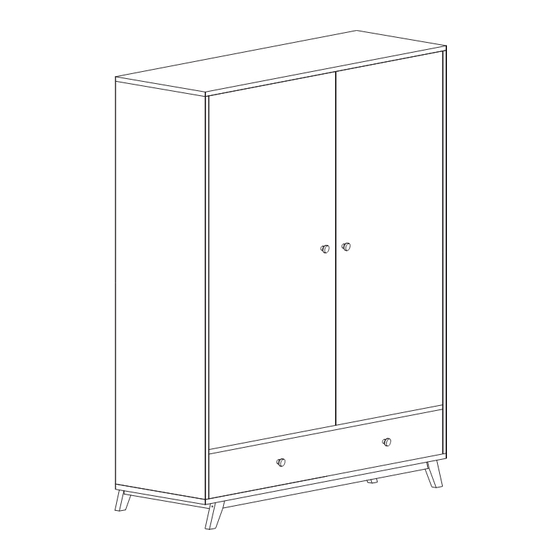

Wardrobe
Thank you for your purchase.
Please follow the instructions below for correct assembly
A C
B
bolt locking dowel
x 26 nut x 26 x 24 screw x 24
G
H
I
L + R
L + R
handle
slide rail
slide rail
x 4
x 2
x 2
O
N
M
screw shelf plug
hinge
x36
x 12
x 6
Hardware Supplied
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
E
D F
small
long medium
screw x 10 screw x 11
K L
J
wedge long
nu t
x16 x 4 screw x4
P Q
small cover
clothes hanger
screw x 8
x 4
support x 4
Phillips & Flathead screwdrivers required.
We recommend using a Flathead screwdriver
to tighten all locking nuts 100% before first use.
WARNING: Any furniture that is not anchored to a wall has
W
the potential to tip over in certain circumstances, i.e. if a
child attempts to climb up on the furniture or in the event
of an earthquake. Accordingly, we recommend that all
furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend
these are used to prevent your product tipping. The fixing
safety long
device provided should fit most wall types, but please
strap screw
note that different wall materials may require different
x2 x2
fixing devices from those supplied.
X Y
wall screw
anchor x2
x2
Z
R
washer
x2
