Mocka Addi Tallboy Assembly Instructions Manual page 2

Addi Tallboy
Assembly Instructions
1
E
F
C
E
CR
G
E
G
C
C
C
4

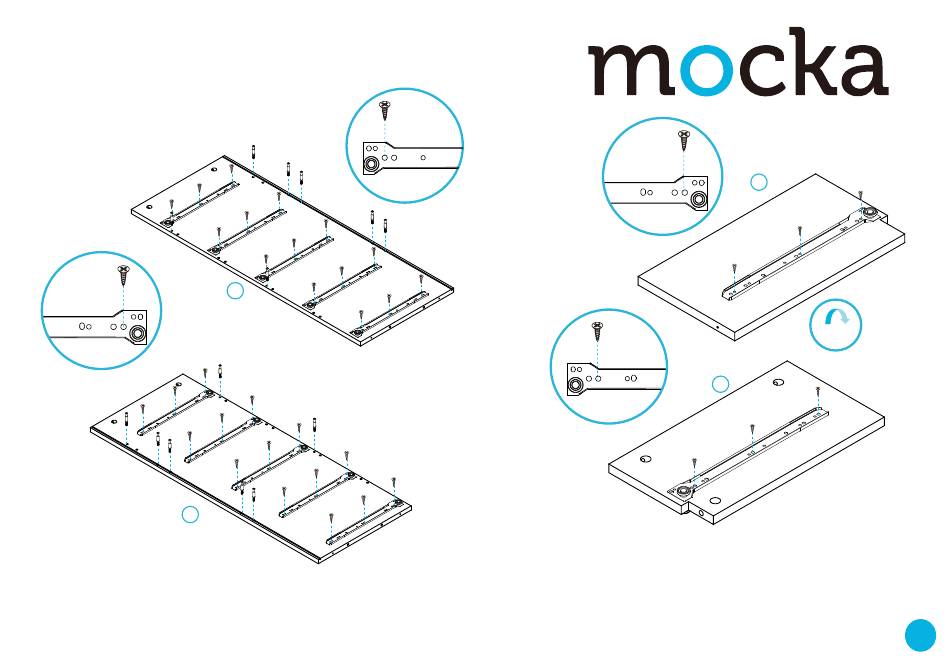

Attach 5x slide rail (F) and 5x slide rail (G) to panels [3] and [4]
as shown and secure with 30x screws (E). Tighten with a screwdriver.
Insert 14x bolts (C) into panels [3] and [4]. Tighten with a screwdriver.
