Addi Tallboy
Assembly Instructions
19
19
19
19
19

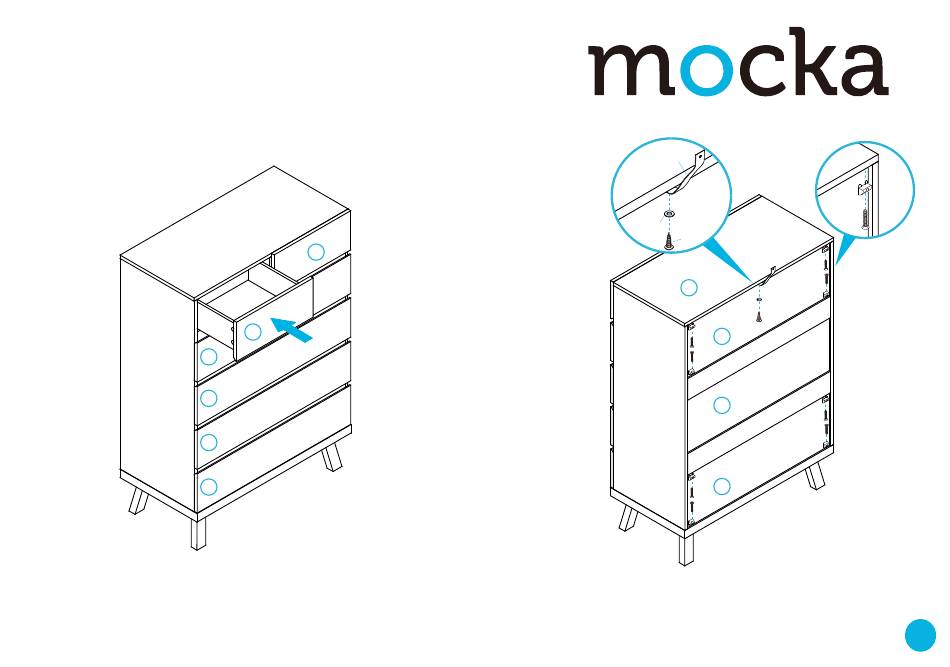

Insert the assembled drawers into the unit ensuring they slide smoothly
along the rails.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
14
13
20
V
Z
Attach 8x wedges (J) into the corners of the back of the unit and secure
with 8x screws (K). Tighten with a screwdriver. Attach 1x safety strap (V)
to the top of the back side of the unit as shown using 1x washer (Z) and
1x screw (W). Tighten with a screwdriver.
J
K
W
J
V
K
1
Z
W
11
11
11
11
