Mocka Avoca Assembly Instructions Manual

Avoca

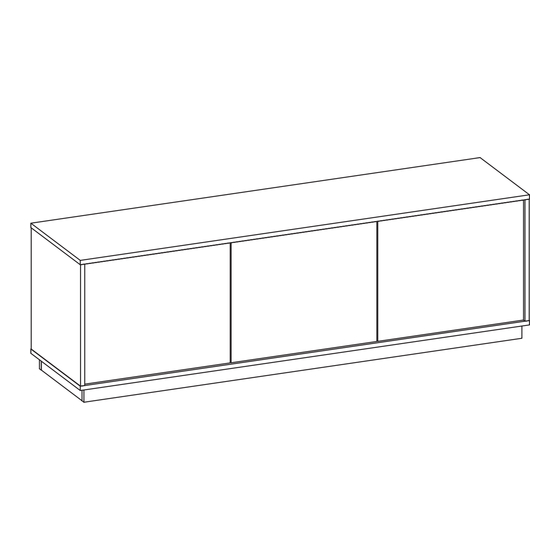

Entertainment Unit
A B
34x 34x
bolt nut
E F
3x 3x
clip spacer
I J
36x 14x
4"14 screw bracket 3"14 screw
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I
C D
24x 10x
dowel 4"35 screw
G H
4x 2x
hinge hinge
K L M
14x 12x 6x
support 3.5"12 screw
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
