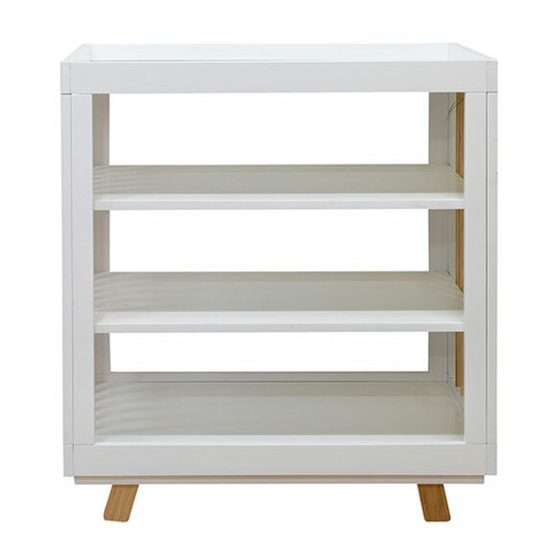

Aspen Change Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
20x
bolt
Hardware Supplied
D
E
1x
1x
screw
wall screw
washer
Wall Strap
Phillips screwdriver required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
B
1x
16x
allen key
bolt
F
G
H
2x
1x
1x
wall anchor
wall strap
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Aspen Change Table
Summary of Contents for Mocka Aspen Change Table
- Page 1 Hardware Supplied screw wall screw washer wall anchor wall strap Wall Strap Phillips screwdriver required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 4x panel [5] to panel [3] with 8x bolt (B). Attach 2x panel [2] to panel [3] with 6x bolt (A). Tighten all bolts with allen key (C). Tighten all bolts with allen key (C). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach 1x panel [1] to panels [2] with 7x bolt (A). Insert 2x panel [4] and attach to panel [1] with 4x bolt (B). Tighten all bolts with allen key (C). Tighten all bolts with allen key (C). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Assembly Instructions Slide 2x panel [6] into the grooves on panels [2]. Attach 1x panel [1] to panels [2] with 7x bolt (A). Tighten all bolts with allen key (C). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Aspen Change Table Assembly Instructions Attach 2x panel [4] to panel [1] with 4x bolt (B). Tighten all bolts with allen key (C). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Use a drill to create a small hole lining up with the safety strap (H). Fasten to wall using 1x wall anchor (G), 1x washer (F) and 1x wall screw (E). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
