2.2. Parts of the Receiver
The operating controls are all located on the front panel.
Battery compartment and SIM card slot are located on the
back. Serial ports and connectors are located on the
bottom of the unit.
2.2.1. Front Panel

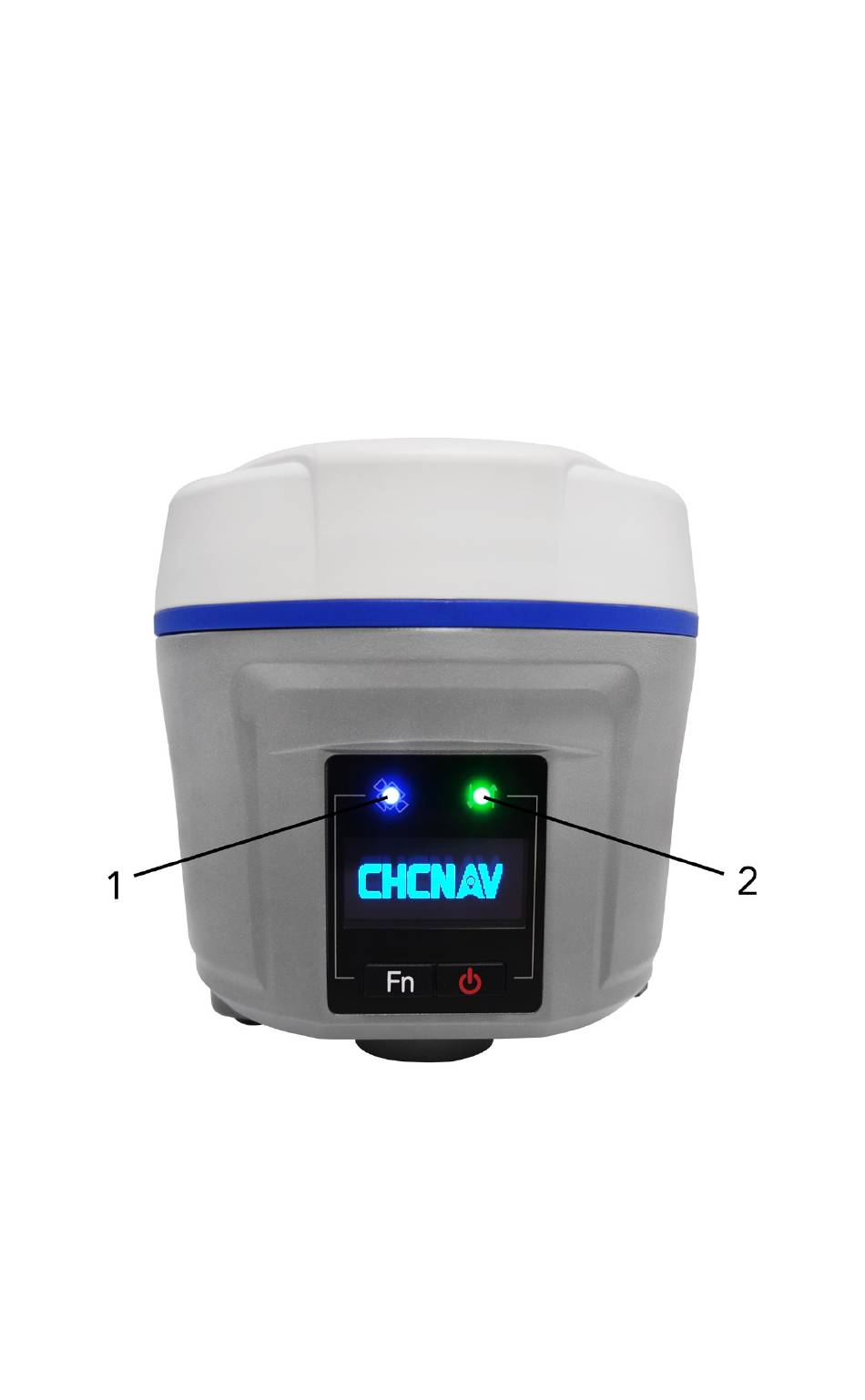

The following figure shows a front view of the receiver.
Front Panel
(Reference chart on the next page)
