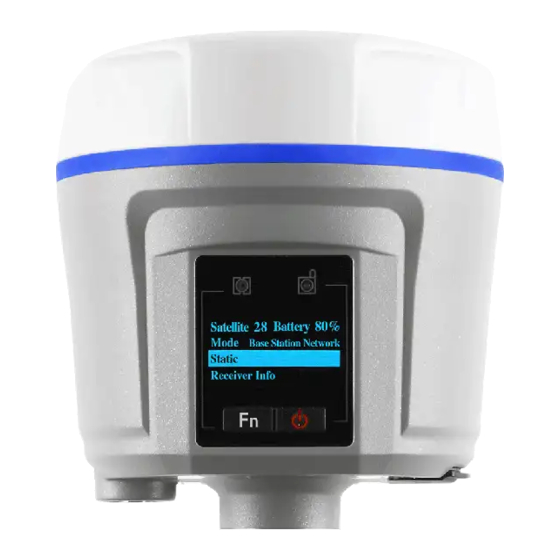

CHC® i80 GNSS Receiver
QuickTour with FieldGenius
(External Radio Base Mode)

Advertisement

loading
Need help?

Need help?

Do you have a question about the i80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CHC i80

Summary of Contents for CHC i80

  • Page 1 CHC® i80 GNSS Receiver QuickTour with FieldGenius (External Radio Base Mode)
  • Page 2 Connect the data link to vehicle battery. Note: the red cable to positive, the black cable to negative. Check all the connection is done then power on the data link. i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)
  • Page 3 [Edit] to select device and linking click [Continue] for next step. method Click on [Select Instrument] Click [Tolerance] tab to set base station satellites mask, PDOP mask and elevation mask. i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)
  • Page 4 Click [Antenna Height] to set the base Note: if you want to measured the slant antenna height height of i80,please refer to the follow figure. i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)
  • Page 5 Make as [CHC], Model as [i80], Bluetooth device. Port as [Bluetooth] → click [Bluetooth Device List] to add bluetooth device 11. Click on the device that matches your device serial number, then click it i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)
  • Page 6 13. Then our target device can be selected in the bluetooth device list. Click [OK] button 15. After successful connection, FieldGenius back [Model Communication] will display the following hint, please click [OK] interface. button i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)
  • Page 7 [Known Geodetic Position], unknow Please click [Set Position] to set the averaged position by clicking [Averaged Geodetic result as base coordinate. Position] and local coordinates by clicking [Local Transformation point] i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)
  • Page 8 16. Select the [Other Device] from the drop-down box then click [Connect] to finish the setting 18. Please check the green LED of i80 whether is flashing. If so, it means the base configuration is successfully. i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)
