CHC i80 Manual
Quicktour with landstar7 external radio base mode
Hide thumbs
Also See for i80:
- User manual (103 pages) ,
- Quick start manual (28 pages) ,
- Maintenance manual (13 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for CHC i80
Summary of Contents for CHC i80

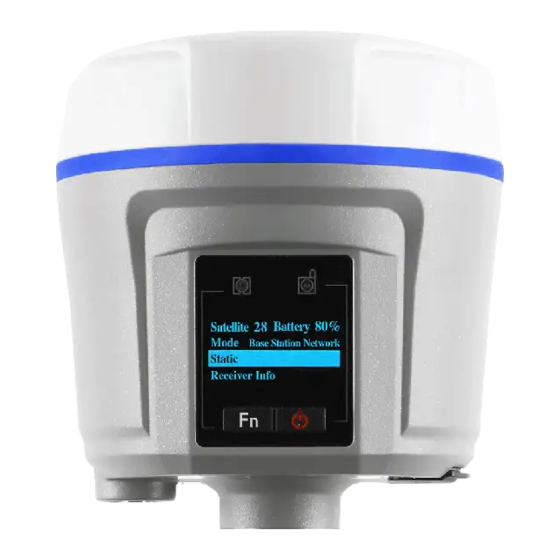

- Page 1 CHC® i80 GNSS Receiver QuickTour with LandStar7 (External Radio Base Mode)
- Page 2 Check all the connection is done then power on the data link. Note: The recommend firmware version of i80 is 1.3.42 or higher. If not, please contact local dealer or CHC Support for latest firmware. i80 GNSS Receiver Quick Tour with LandStar7 (External Radio Base)
- Page 3 System to use. Then select the [Coordinate System] to After select Coordinate System, please click choose the coordinate system of the project. [Select] button to confirm. Then selected coordinate system is available i80 GNSS Receiver Quick Tour with LandStar7 (External Radio Base)
- Page 4 After that, user can confirm parameters of coordinate system. Click [Config] tab then click [Connect] Please click [Accept] button to finish the icon to enter the connection interface. coordinate system selecting. i80 GNSS Receiver Quick Tour with LandStar7 (External Radio Base)
-
Page 5: Bluetooth Connection
(2) Please click [Bluetooth Manager] to search bluetooth device around. If there are several paired bluetooth devices , users can directly select them in list. (4) Please click [Pair] to connect the bluetooth device. i80 GNSS Receiver Quick Tour with LandStar7 (External Radio Base) - Page 6 (6) Click [Connect] button to build the connection. (5) Then the device can be selected in the bluetooth manager list. i80 GNSS Receiver Quick Tour with LandStar7 (External Radio Base)
- Page 7 WiFi is 12345678 (2) Switch on the WiFi module by the top switch, click refresh button to search the hot spot around. Then select the target device in the list. i80 GNSS Receiver Quick Tour with LandStar7 (External Radio Base)
- Page 8 10. Click [New] button to create a work mode. 11. Please switch on RTK function, select the work mode as Manual Base, Date Link as External Radio, Correction Format RTCM3.2, Bandrate as 9600, Elevation Mask i80 GNSS Receiver Quick Tour with LandStar7 (External Radio Base)
- Page 9 14. Then the base coordinate should be set. User can edit the base antenna height here. If the base is started on the unknown position, please click [Get Pos] to start the base. i80 GNSS Receiver Quick Tour with LandStar7 (External Radio Base)
- Page 10 If so, it means the base configuration is successfully. Note: if you want to measured the slant height of i80,please refer to the following i80 GNSS Receiver Quick Tour with LandStar7 (External Radio Base)
