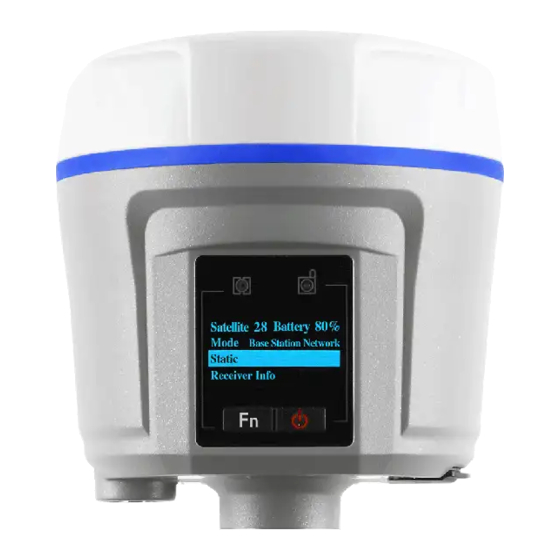

- Page 1 CHC® i80 GNSS Receiver QuickTour with FieldGenius (PDA Network Mode)
- Page 2 Insert the SIM card to data collector, screw the rover receiver on the pole, and put the Controller adapter in the right place like the figure. Click on the [connections]-[Wireless Manager] i80 GNSS Receiver Quick Tour with FieldGenius (PDA Network Mode)
- Page 3 Click on [Menu]-[Wifi setting] to connect to Wifi hotspot Finally click on [OK] on lower left corner. Then the connection will be created and you can open your browser to access any website to check. i80 GNSS Receiver Quick Tour with FieldGenius (PDA Network Mode)
- Page 4 Long press the [My connection] then click [Connect] Click on the [connections] Then the connection will be created and you can open your browser to access any website to check. i80 GNSS Receiver Quick Tour with FieldGenius (PDA Network Mode)
- Page 5 LED lights are on. Click on [start] and then FieldGenius. Click on [Select Instrument] Click [New Project] to create a project or Click [Open] to open one exist project. i80 GNSS Receiver Quick Tour with FieldGenius (PDA Network Mode)
- Page 6 Make as [CHC], Model as [i80], Click [Antenna Height] tab to set the Port as [Bluetooth] → click [Bluetooth Device antenna height of the receiver List] to add bluetooth device i80 GNSS Receiver Quick Tour with FieldGenius (PDA Network Mode)
- Page 7 10. Click [Search] to search the around Bluetooth device. 12. Type in the PIN Code of the bluetooth then click [OK] button to finish the device edit. i80 GNSS Receiver Quick Tour with FieldGenius (PDA Network Mode)
- Page 8 15. Please select the Source Type as NTRIP. drop-down box then click [Connect] button. Click [Press to modify] button to create a The software will build the connection to your NTRIP account information. device i80 GNSS Receiver Quick Tour with FieldGenius (PDA Network Mode)
- Page 9 CORS you want to use then click [Select] Type in your CORS information in the blank. Then click [Ok] button Then click [Ok] button to finish setting i80 GNSS Receiver Quick Tour with FieldGenius (PDA Network Mode)
- Page 10 18. Then the green LED will flash and the states will become [Autonomous] to [float] then to [fix],which means the rover is getting the correction data from base. 19. The survey work can be done with the i80 GNSS Receiver Quick Tour with FieldGenius (PDA Network Mode)
