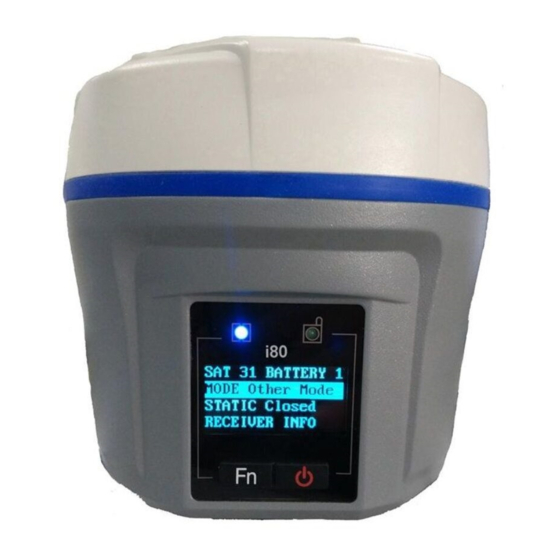

- Page 1 CHC® i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover Mode)
- Page 2 Click [Projects] icon in [Project] menu to create or open a project. Note: The recommend firmware version of i80 is 1.3.42 or higher. If not, please contact local dealer or CHC Support for latest firmware. i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover)
- Page 3 Then selected coordinate system is available In the CRS selection menu, please click [Add] in the pre-define list, please click [Select] button to add pre-define coordinate system in button to confirm. i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover)
- Page 4 After that, user can confirm parameters of coordinate system. Please click [Accept] button to finish the Click [Config] tab then click [Connect] coordinate system selecting. icon to enter the connection interface. i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover)
-
Page 5: Bluetooth Connection
(2) Please click [Bluetooth Manager] to search bluetooth device around. If there are several paired bluetooth devices , users can directly select them in list. i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover) - Page 6 (4) Please click [Pair] to connect the (6) Click [Connect] button to build the bluetooth device. connection. (5) Then the device can be selected in the bluetooth manager list. i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover)
- Page 7 WiFi is 12345678. (2) Switch on the WiFi module by the top switch, click refresh button to search the hot spot around. Then select the target device in the list. i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover)
- Page 8 10. Click [New] button to create a work mode. 11. Please select the work mode as Auto Rover, Datalink as Radio, Datalink as Radio then LandStar 7 will read receiver’s available UHF parameters automatically. Set protocol as i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover)
- Page 9 13. Now, the work mode is available in the list. Please select the work mode then click [Accept] button. After setting, please click [Save] button to i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover)
- Page 10 14. Then the green LED will flash and the states will come into [Fix], which means the rover is getting the correction data from base. 15. Please click the [Survey]-[Map] to start the survey job. i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover)
