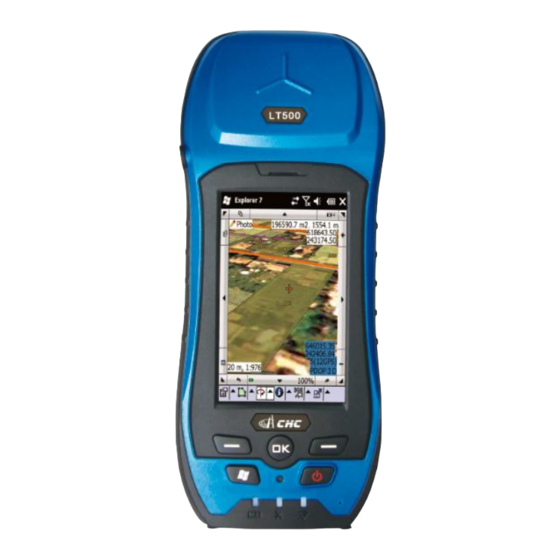

CHC LT500 Getting Started Manual

Gnss/gis handheld receiver
Hide thumbs Also See for LT500:
Table of Contents

Advertisement

Quick Links

Download this manual
il
LT500 | G
S
G
ETTING
TARTED
UIDE
GNSS/GIS H
R
ANDHELD
ECEIVER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CHC LT500

Summary of Contents for CHC LT500

  • Page 1 LT500 | G ETTING TARTED UIDE GNSS/GIS H ANDHELD ECEIVER...
  • Page 2 Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LT500 Getting Started Guide – Revision 1.0 Sep 2014...
  • Page 3 Changes or modifications made to this equipment not expressly approved by Shanghai Huace Navigation Technology Ltd. may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    Table of Contents Introduction ............................. 1 1.1. Technical Assistance ......................1 1.2. Your Comments ........................1 Overview ............................2 2.1. Features ..........................2 2.2. Specifications ........................2 Description ............................4 First-Time Use ..........................6 4.1. Inserting the Battery, Storage card and SIM card .............. 6 4.2.

  • Page 5: Introduction

    1. I NTRODUCTION Thank you for choosing LT500 GNSS Handheld Receiver. This Getting Started Guide will provide useful information about your receiver. It will also guide you through your first steps of using LT500 in the field. 1.1. T ECHNICAL...

  • Page 6: Overview

    VERVIEW 2.1. F EATURES LT500 is a handheld GNSS RTK receiver and a precision GIS data collector that incorporate a survey-grade professional L1/L2 GNSS core engine as well as Microsoft Windows Mobile® WEHH operating system. LT500 comes in a rugged design suitable for all your demanding survey and construction environment as well as numerous mapping applications.
  • Page 7 Shock : survive a 1.5 meters drop onto concrete Electrical Li-ion battery capacity : 6800 mAh Battery life : up to 12 hours Package content 1x LT500 Handheld GNSS Receiver 1x Li-Ion battery 1x AC Adapter 1x Stylus 1x 16GB memory card 1x USB Data Cable ...

  • Page 8: Description

    3. D ESCRIPTION Front view GNSS Antenna External Antenna Connector Speaker Touch Screen Function Keys Power Button Reboot Button Indicator Light Microphone  Page 4...
  • Page 9 Rear view Camera Laser alignment Touch pen Battery SD card slot Data cable Connector  Page 5...

  • Page 10: First-Time Use

    Connect the AC adapter to a power plug.  Connect data cable to the LT500 to start charging the battery. If the receiver is off, a charging icon will display on the screen. If the receiver is on, a charging icon will show on the top right corner of the screen.

  • Page 11: Turning The Device On/Off Or Standby

    ONNECT TO FFICE OMPUTER  To install software or access to the LT500, you can use your office computer and a Microsoft ActiveSync connection to transfer the installation files from the computer to LT500.  It means Microsoft Windows Mobile Device Center or ActiveSync should first be installed on your computer.

  • Page 12: Installing Software

    Select and click on the installation file to install, or if the installation file runs only on LT500, please copy the file to LT500, double click it to install. You can also copy files to LT500’s relevant location to save it.
  • Page 13  Open GNSSViewer software: o Run “My Device”-“Program Files”-“GNSSViewer”. o The symbol “GNSSViewer” will appearing at the bottom right corner of the main screen when the software is running. Double click the icon will take you come back to software interface. o Choose Com6 and 57600 for connecting GPS Port.

  • Page 14: Using The Camera

    4.8. U SING THE CAMERA  Press the Camera key to enter in the picture taking mode.  Press the Camera Key again to take a picture.  Click the OK icon on the top right corner to exit. 4.9. E STABLISHING IRELESS CONNECTION LUETOOTH...

  • Page 15: Getting Started With Survce 3

    5. G CE 3 ETTING STARTED WITH Configure the LT500 1. Go to Start menu --> Settings --> System 2. Select External GPS icon 3. On the Software port tab: select COM4 4. Then on the Hardware port tab: select COM3 and Baud: 57600 Start SurvCE 3: 1.

  • Page 16: Getting Started With Digiterra Explorer 7

    3. Finally select the proper script from the /Scripts/CHC folder in the installation directory on the Settings > Command tab > Command File button and then you can connect to the GNSS receiver on the GPS > Status panel. Available scripts for LT500: LT500-GLONASS.txt LT500-NTRIP.txt LT500-SBAS.txt Note: Users should run the scripts when switching connection from SurvCE to DigiTerra.

  • Page 17: Outputting Nmea 0183 Data From The 9-Pin Port

    NMEA 0183 UTPUTTING DATA FROM THE PIN PORT The LT500 can output the default NMEA 0183 V2.2 messages at 1Hz: GPGGA, GPGSA, GPGSV, GPGST, GPRMC. 1. Go to Start menu --> Settings --> System 2. Select External GPS icon 3. On the Software port tab: select COM6 4.

  • Page 18: Frequent Settings

    8. F REQUENT ETTINGS  Stylus Setting Go to Start-->Settings-->System-->Screen Click Align Screen to start the stylus setting.  Backlight Setting Go to Start-->Settings-->System -->Backlight, Adjust settings according to your requirements.  Power Setting Go to Start-->Settings-->System-->Power-->Advanced, Adjust settings according to your requirements. ...
  • Page 19 CHC - Shanghai HuaCE Navigation T echnology Ltd. Building 35, n° 680 Guiping Road 200233 Shanghai – China T el : +86 21 542 60 273 Fax : +86 21 649 50 963 Email : sales@chcnav.com | www.chcnav.com  Page 15...
