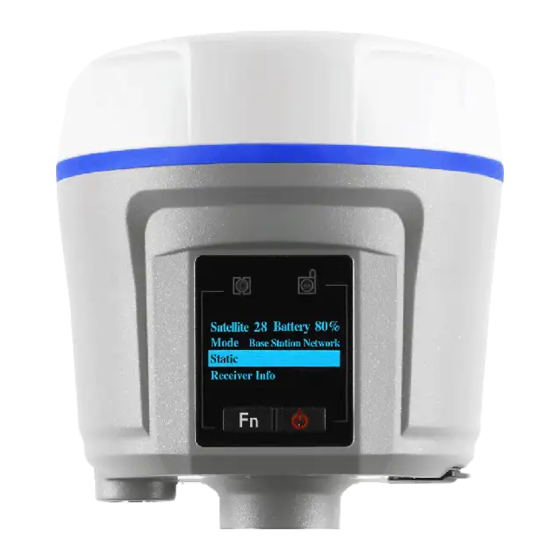

CHC® i80 GNSS Receiver
QuickTour with FieldGenius
(Internal UHF Base Mode)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i80 and is the answer not in the manual?

Questions and answers

Related Manuals for CHC i80

Summary of Contents for CHC i80

  • Page 1 CHC® i80 GNSS Receiver QuickTour with FieldGenius (Internal UHF Base Mode)
  • Page 2 Click [Open] to open one exist project. Note: The recommend firmware version of i80 is 1.3.36 or higher. If not, please contact local dealer or CHC Support for latest firmware. i80 GNSS Receiver Quick Tour with FieldGenius (Internal UHF Base)
  • Page 3 [Continue] for next step. click [Edit] to select device and linking method Click on [Select Instrument] Click [Tolerance] tab to set base station satellites mask, PDOP mask and elevation mask. i80 GNSS Receiver Quick Tour with FieldGenius (Internal UHF Base)
  • Page 4 Click [Antenna Height] to set the base Note: if you want to measured the slant antenna height height of i80,please refer to the follow figure. i80 GNSS Receiver Quick Tour with FieldGenius (Internal UHF Base)
  • Page 5 Make as [CHC], Model as [i80], Bluetooth device. Port as [Bluetooth] → click [Bluetooth Device List] to add bluetooth device 11. Click on the device that matches your device serial number, then click it i80 GNSS Receiver Quick Tour with FieldGenius (Internal UHF Base)
  • Page 6 13. Then our target device can be selected in the bluetooth device list. Click [OK] button 15. After successful connection, FieldGenius back [Model Communication] will display the following hint, please click [OK] interface. button i80 GNSS Receiver Quick Tour with FieldGenius (Internal UHF Base)
  • Page 7 Please click [Set Position] to set the averaged clicking [Known Geodetic Position], unknow result as base coordinate. position by clicking [Averaged Geodetic Position] and local coordinates by clicking [Local Transformation point] i80 GNSS Receiver Quick Tour with FieldGenius (Internal UHF Base)
  • Page 8 [fix],which means the rover is getting [Ok] the correction data from base. 19. The survey work can be done with the Note: the protocol and the frequency must be the same between Base and Rover. i80 GNSS Receiver Quick Tour with FieldGenius (Internal UHF Base)
