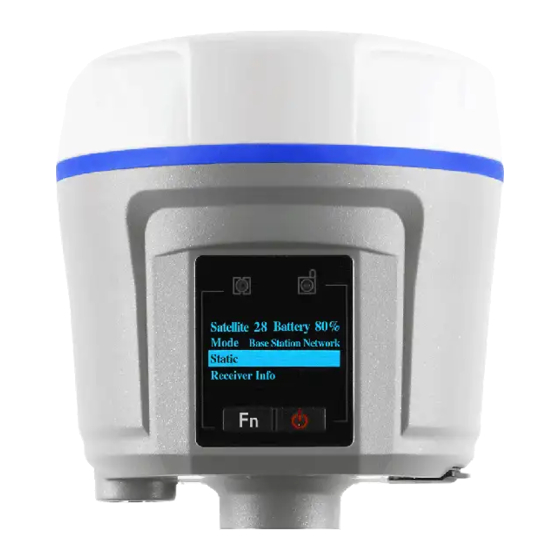

- Page 1 CHC® i80 GNSS Receiver Quick Tour with SurvCE (External Radio Base Mode)
- Page 2 3 slots to Antenna (with 5 meter cable), Battery (with Power Cable) and Base (with GPS to Data link Cable) separately. And the connection order should follow the figure i80 GNSS Receiver Quick Tour with SurvCE (External Radio Base)
- Page 3 Enter a job name and select a projection Click [Current] [Manufacturer] in CHC→select [Model] in i80 Click [Comms] tab→select [Type] in Bluetooth→select [BT Type] in Windows Mobile and then click the icon i80 GNSS Receiver Quick Tour with SurvCE (External Radio Base)
- Page 4 BT device around Bluetooth connection Click on the device that matches your 11. Click [Receiver] tab to set the antenna height info device serial number, then click the icon i80 GNSS Receiver Quick Tour with SurvCE (External Radio Base)
- Page 5 12. Click [RTK] tab and set device to [Cable coordinates or Generic Device] and set the message type A:From known position then click icon i80 GNSS Receiver Quick Tour with SurvCE (External Radio Base)
- Page 6 [Read From GPS] 16. After start the base, the base file can be saved or not Set the points number need to be collected then click the icon i80 GNSS Receiver Quick Tour with SurvCE (External Radio Base)
- Page 7 Up and Down button to set channel, Output Switch Button to set transmitting power as project need. Note: P&F information is the most important, the bigger the power, the longer distance it i80 GNSS Receiver Quick Tour with SurvCE (External Radio Base)
