QuadraTop
This Replacement Top kit is designed to fit on your 4 Dr Jeep® Wrangler when
the original soft top or hard top has been completely removed. Before begin-
NOTICE
ning your installation of this product, you will need to remove your existing soft
top fabric, hardware or Hard top.
Loss of vehicle control involves risk of death or serious injury, particularly to
parts of your body not restrained within vehicle. This product is intended for
weather protection only and should not be relied upon to contain occupants
in the event of an accident or to protect from either ground contact or falling
objects. To reduce risk of accident or injury:
•
ALWAYS WEAR SEATBELTS
WARNING
•
Always keep head, arms & body parts within vehicle.
•
Fully secure or stow the soft top before driving according to instructions.
Never try to latch or fold soft top while driving. Do not use if damaged or
worn.
•
Read and follow all instructions & warnings accompanying this product, in
your vehicle owner's manual and Off Road Driving Supplement.
RISK OF EYE INJURY. Safety glasses should be worn at all times while install-
CAUTION
ing or maintaining this product.
PART LIST:
TOP DECK/HEADER AND REAR BOWS ASSEMBLY QTY 1
DRIVER SIDE QUARTER WINDOW
PASSENGER SIDE QUARTER WINDOW
REAR WINDOW
CENTER BOW ASSEMBLY
DRIVER SIDE DOOR SURROUND
PASSENGER SIDE DOOR SURROUND
DOOR SURROUND RUBBER
DOOR SURRUND SCREWS
DOOR SURROND KNOBS
TAILGATE BAR
TAILGATE BAR CORNER MOUNTS
CORNER MOUNTS SHORT KNOBS
REAR BOW SCREWS AND NUTS
REAR BRACKET SCREWS & NUTS
REAR MAIN BRACKET SCREWS AND NUTS
4MM ALLEN WRENCH
REAR MAIN BRACKET SCREW M8
5MM ALLEN WRENCH

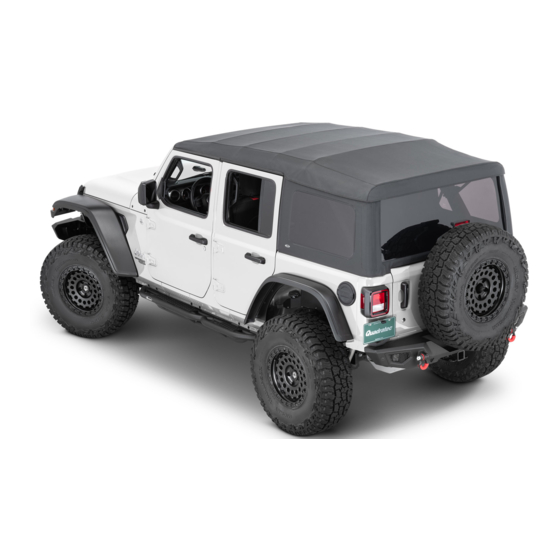

Complete Soft Top
®
for 2018- Current
4 Door Jeep
Wrangler JLU
®
Item
11113.2435
#
QTY 1
QTY 1
QTY 1
QTY 1
QTY 1
QTY 1
QTY 2
QTY 1
QTY 8
QTY 2
QTY 4
QTY 8
QTY 4
QTY 2
QTY 2
QTY 1
QTY 4
QTY 1
REQUIRED TOOLS:
SAFETY GLASSES
SOCKET WRENCH
10MM SOCKET & DRIVER
PHILLIPS HEAD SCREW DRIVER
Advertisement
Related Manuals for Quadratec QuadraTop 11113.2435
Summary of Contents for Quadratec QuadraTop 11113.2435
- Page 1 QuadraTop Complete Soft Top ® for 2018- Current 4 Door Jeep Wrangler JLU ® Item 11113.2435 This Replacement Top kit is designed to fit on your 4 Dr Jeep® Wrangler when the original soft top or hard top has been completely removed. Before begin- NOTICE ning your installation of this product, you will need to remove your existing soft top fabric, hardware or Hard top.
- Page 2 You CAN be moderately HURT and also may suffer property damage if you don’t follow instructions. Careful attention is required to this instruction or operation but does general- ly not relate to personal injury. Damage to your Quadratec® product or other NOTICE property may result if you don’t follow instructions.
- Page 3 FIG 2 Step 2: Secure Front Door Sur- rounds to the Roll Bar Locate the set of screw knobs and Passenger Front door surround the driver’s side front door surrounds (Fig 2). There should be 2 sets four knobs. See fig 1. These knobs go on the front and rear holes of Driver Front door surround...
- Page 4 Step 4: Install & Secure Rear Door FIG 9 Surrounds to the Roll Bar Locate the assembled Driver’s side rear door surround previously in- stalled in step 3.(Fig 9) and a set of FIG 10 screw knobs. On the bottom of the vertical pillar portion of the assembled door surround are two pins as shown in FIG 10 that will be inserted into the body tub.
- Page 5 Step 5: Installing the Center Bow #1 FIG 18 & #2 Center Bow #1 Center Bow #2 Locate the center bow #1 (Fig 18). Each Bow has been labeled to make identification easier. Loosen the screws holding on the top brackets. With the help of a friend, place the Quick release end on the bottom of the bow leg over the second vertical...
- Page 6 There are a pair of screws and nuts Step 8: Installing the rear bow #1 to installed on the rear leg bracket from the rear leg bracket factory. Remove these screws and nuts Locate the rear bow #1, (FIG27), using a 10mm socket wrench and the and the driver side rear leg bracket included 5mm Allen head tool and set #1(FIG26) installed from factory on the...
- Page 7 Step 10: Hook and Loop Rear bow #1 Flap sewn Fold the Rear Bow #1 and the rear leg #1 to the back (FIG 36). Rear Bow #1 FIG 37 FIG 38 FIG 39 Driver side Rear Bow #1 bow arm FIG 36 Hook In the deck there are three flaps sewn...
- Page 8 Step 12: Installing the top Deck (Continued) FIG 45 Once lined up with the bow mount Quick release bracket, install the header assembly by pulling out the quick release knob and push over the mount until you hear a “click”(FIG45). Tighten the bow mount Bow mount brackets brackets on the front door surround with the included 4mm allen wrench (FIG45a).
- Page 9 Step 13: Installing the side quarter FIG 56 windows Locate the drivers rear quarter window. Line up the driver’s side Quarter win- dow to the zipper on the deck and zip it as shown in FIG’s 56 & 57 On the rear of the quarter window there FIG 57 is a corner support installed (FIG 58).
- Page 10 When removing the quarter windows from the Top deck, make NOTICE sure the zipper is completely out of the “zipper box” before remov- ing the window. See fig 66 & 66a FIG 66 FIG 66a Step 15: Securing the Side and Rear Windows to the Vehicle FIG 68 FIG 67...
- Page 11 FIG 75 FIG 76 FIG 77 Once the Tailgate bar in secure, Close the hook and loops side flaps (FIG75) and the upper rear flaps (FIG 76 & 77). Then, secure the rear zipper cover flap as shown in Figs 78 & 79. Repeat this procedure on the passenger side. FIG 78 FIG 79 Using Your Complete Soft Top...
- Page 12 Using Your Complete Soft Top- Continued FIG 83 Fully Open Front Option #2 Fully Opened Driver and Passenger Sunroof For the next position you will need to slide the two side straps towards the header as shown in fig 83a and Option #2 push the front bow in the center of the folded back “sunroof”...
- Page 13 FIG 85 Fully Open rear TheThe front header arms must be secure to the third bow mount bracket and the fabric/ bows must be layered back before the WARNING vehicle is driven! Failure to secu- re these bow mounts will cause the top to potentially fly off the vehicle causing damage to the Option #4...
- Page 14 FIG 88 Using Your Fastback Soft Top Continued To secure your soft top, locate the two side tension straps (fig 88). Hook the end of strap under the belt rail (fig 89), insert the other side of the FIG 89 tension strap through the strap that is sewn onto the top for shipping located on the front leg, see fig 90.
- Page 15 (do not use “polished” out using the window polish listed the brush on the window glass!). You on page 15 (Available at Quadratec.com). can also use special soft top clean- ers Water/Fabric: In the event of seeping available on our website and shown on page 15.
- Page 16 Quadratec, Inc. 1028 der shall, upon Quadratec inspection and Saunders Lane, West Chester, PA 19380. at Quadratec’s option, be either repair or replacement of product or parts (new or This Limited Warranty is the only warranty refurbished) covered under this Limited Warranty.
