4. Adjust the Lens Focus Range and Zoom Viewing (This Function is only apply for FD-300Ap)
I.

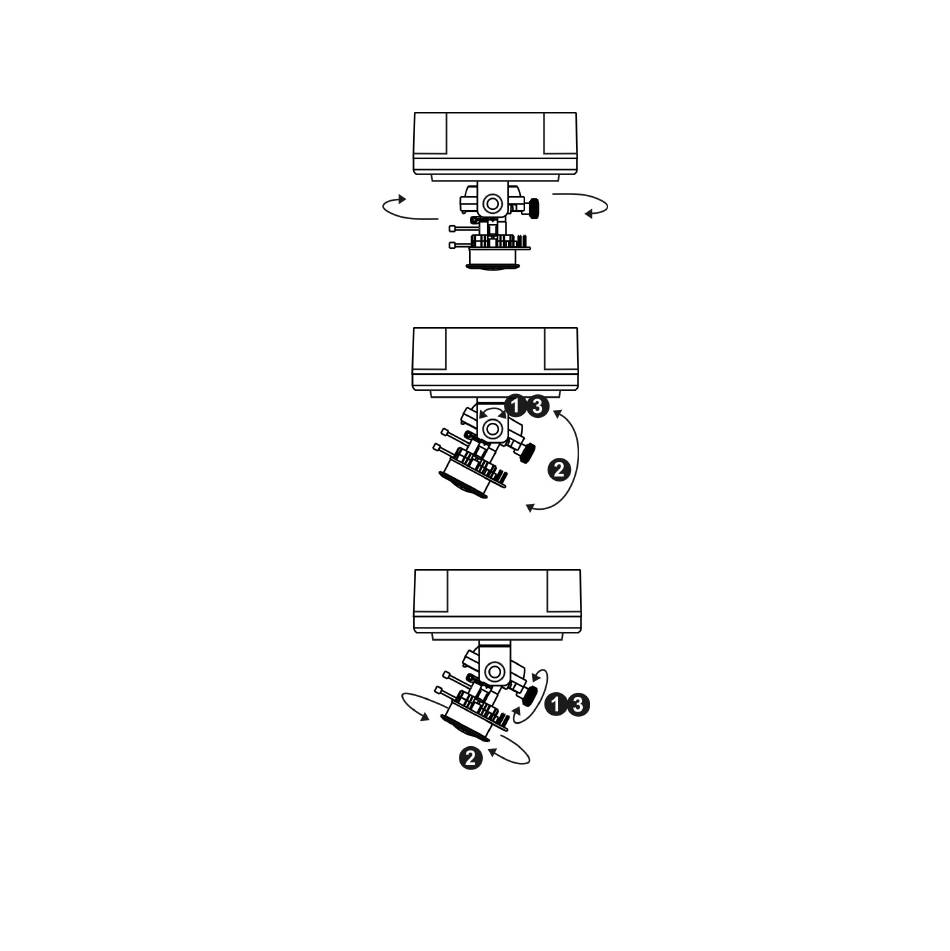

How to adjust the Lens angle?
1)
Release the pan screw and then rotate the lens to left or right. After completion, tighten the pan
screw.
2)
Release the tilt screw on both side of the device and then rotate the lens to up or down. After
completion, tighten the tilt screw.
3)
Release the video adjustment screw and then adjust the lens direction. After completion,
tighten the video adjustment screw.
6
