Step 2 .Hardware Installation

WARNING - Do not mount the camera on a soft material. The camera may fall

and be damaged.

This document is for easy installation purpose only; please refer to the user

manual for more details.

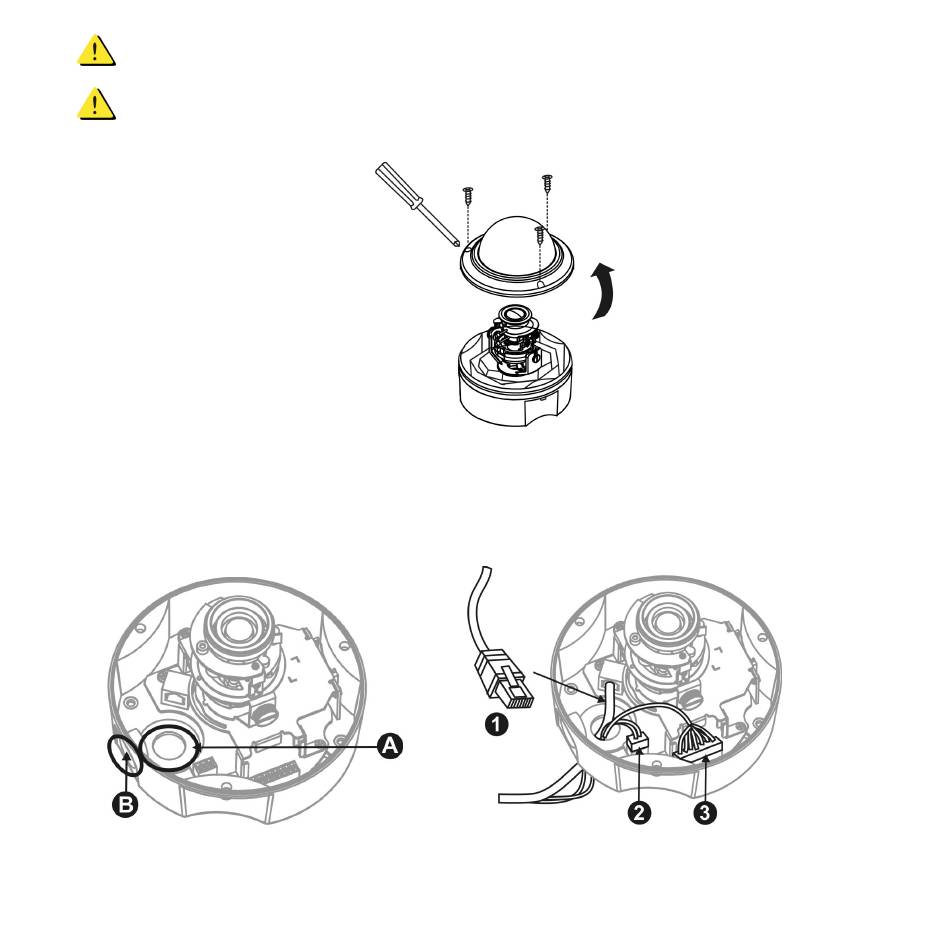

1. Remove the dome cover from the camera device.

I. PoE, Power, DIDO, Audio Connection

Insert the PoE(1) / DC12V(2), DIDO and Audio cable(3) through conduit hole A or B.
