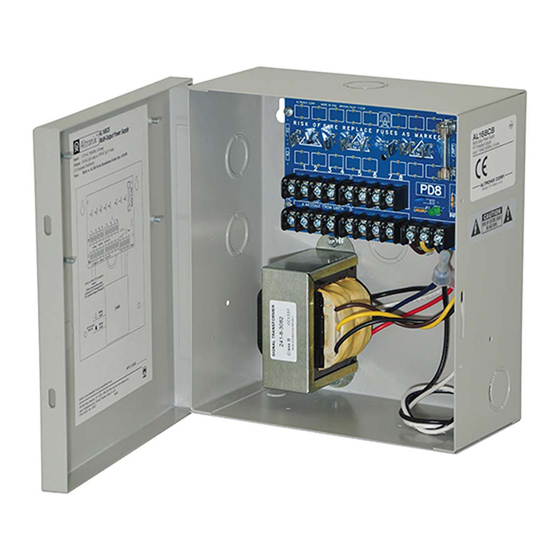

AL168 Series
Multi-Output Power Supplies
Installation Guide
Models Include:
AL168CB
- 16VAC @ 6A (100VA) or
18VAC @ 5.5A (100VA).
- Eight (8) PTC protected outputs.
AL168175CB
- 16VAC @ 10A (175VA).
- Eight (8) PTC protected outputs.
AL168300CB
- 16VAC @ 18A (350VA) or
18VAC @ 16A (350VA).
- Eight (8) PTC protected outputs.
Rev. 070109
AL168300CBM
- 16VAC @ 18A (350VA) or
18VAC @ 16A (350VA).
- Eight (8) PTC protected outputs.
AL168600CB
- 16VAC @ 40A (700VA) or
18VAC @ 36A (700VA).
- Eight (8) PTC protected outputs.
More than just power.
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL168 Series
Summary of Contents for Altronix AL168 Series
- Page 1 AL168 Series Multi-Output Power Supplies Installation Guide Models Include: AL168CB AL168300CBM - 16VAC @ 6A (100VA) or - 16VAC @ 18A (350VA) or 18VAC @ 5.5A (100VA). 18VAC @ 16A (350VA). - Eight (8) PTC protected outputs. - Eight (8) PTC protected outputs.
-
Page 2: Specifications
Overview: Altronix AL168CB Series Multi-Output Power Supplies provide 16VAC/18VAC distributed via eight (8) auto- resettable PTC protected outputs for powering multiple security system or access control panels. Eight (8) Output AL168 Reference Chart: Total Number Output Output of PTC Current... -
Page 3: Terminal Identification
7. Turn main switch to the “RESET” (ON) position (except AL168CB) (Figs. 2-5, pgs. 5-8). 8. Green LED will illuminate when unit is powered. 9. Upon completion of the wiring secure enclosure door with screws (supplied). Caution: Equipment to be installed/serviced by authorized/trained personnel only. Shut branch circuit power before installing/servicing equipment. - Page 4 Fig. 1 - AL168CB Input 115VAC, 50/60Hz, 0.9A Voltage Selection Configuration 16VAC Output (Yellow) (Black) 18VAC Output (Black) (Yellow) - 4 - AL168CB Series...
- Page 5 Fig. 2 - AL168175CB Illuminated Power Switch Input 115VAC, 50/60Hz, 1.45A AL168CB Series - 5 -...
- Page 6 Fig. 3 - AL168300CB Input 115VAC, 50/60Hz, 2.7A Voltage Selection Configuration 16VAC Output (Yellow) (Black) 18VAC Output (Black) (Yellow) - 6 - AL168CB Series...
- Page 7 Fig. 4 - AL168300CBM Illuminated Power Switch Input 115VAC, 50/60Hz, 2.7A Voltage Selection Configuration 16VAC Output (Yellow) (Black) 18VAC Output (Black) (Yellow) AL168CB Series - 7 -...
- Page 8 Fig. 5 - AL168600CB Illuminated Power Switch Input 115VAC, 50/60Hz, 5.4A Voltage Selection Configuration 16VAC Output (Yellow) (Black) 18VAC Output (Black) (Yellow) - 8 - AL168CB Series...
- Page 9 Notes: AL168CB Series - 9 -...
- Page 10 Enclosure Dimensions (H x W x D) for AL168CB 8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm) 7.25” (184.15mm) 3.625” (184.15mm) 1.25” (31.75mm) 3.5” (88.9mm) 0.6” 0.6” 1.25” 6.05” (15.24mm) (15.24mm) (31.75mm) (153.67mm) 1.125” 1.125” (28.575mm) (28.575mm) 2” (50.8mm) 2”...
- Page 11 Enclosure Dimensions (H x W x D) for AL168300CBM and AL168175CB 8.5” x 7.5” x 3.875” (215.9mm x 191mm x 98.4mm) 3.63” (92.2mm) 1.25” (31.75mm) 3.85” (97.79mm) 7.25” (184.15mm) 0.6” 1.25” 1.25” (15.24mm) 0.6” (31.75mm) (31.75mm) (15.24mm) 1” 1” (25.4mm) (25.4mm) 0.9”...
- Page 12 (267mm) (25mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIAL168CB Series C20R...
