Ltech LT-200 Quick Start Manual

7. Attention:
7.1 The product shall be installed and serviced by the qualified person.
7.2 This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure
it is mounted in a water proof enclosure.
7.3 Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
7.4 Please check if the output voltage of the LED power supply used comply with the working voltage
of the product.
7.5 Please ensure that adequate sized cable is used from the controller to the LED lights to carry the
current. Please also ensure that the cable is secured tightly in the connector.
7.6 Ensure all wire connections and polarities are correct before applying power to avoid any damages
to the LED lights.
7.7 If a fault occurs, please return the product to your supplier. Do not attempt to fix this product by yourself.
8. Warranty Agreement:
8.1 We provide lifelong technical assistance with this product:
A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement
if cover manufacturing faults only.
For faults beyond the 5-year warranty, we reserve the right to charge for time and parts.
8.2 Warranty exclusions below:
Any man-made damages caused from improper operation, or connecting to excess voltage and
overloading.
The product appears to have excessive physical damage.
Damage due to natural disasters and force majeure.
Warranty label, fragile label and unique barcode label have been damaged.
The product has been replaced by a brand new product.
8.3 Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
LTECH shall not be liable for any incidental or consequential damages for breach of any stipulation
in this warranty.
8.4 Any amendment or adjustment to this warranty must be approved in writing by LTECH only.
★ This manual only applies to this model. LTECH reserves the right to make changes without prior
notice.

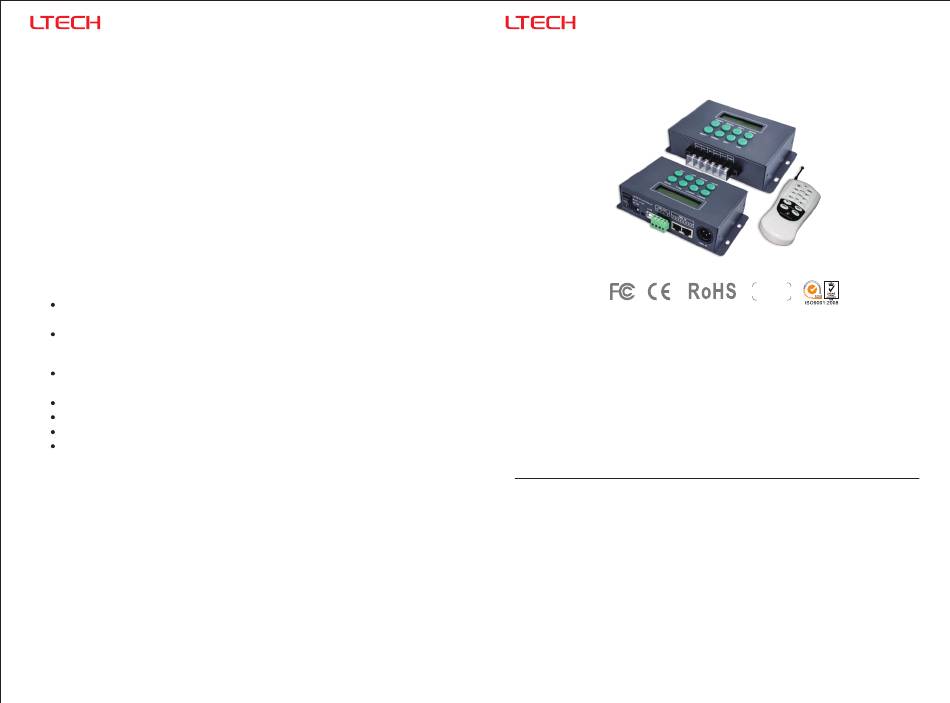

LT-200 LED Digital Controller
8
www.ltech-led.com Update Time: 2018.09.21

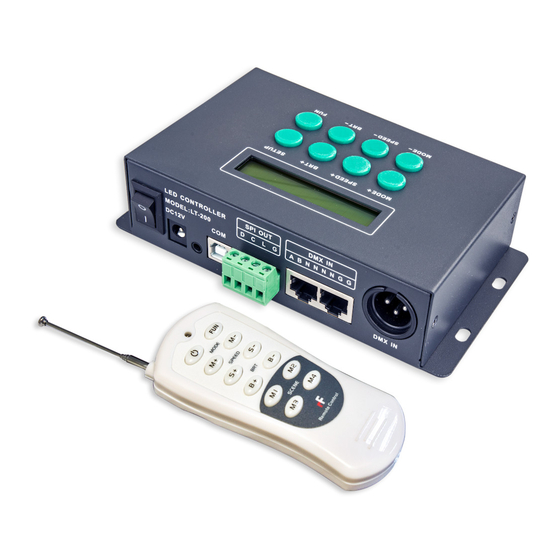

LED Digital Controller
LT-200 controls LED with the following compatible ICs: LPD1101/6803/8803/8806, WS2801/2803/2811/2812,
UCS1903/1909/1912/2903/6909/6912, TM1804/1809/1812, TLS3001/3002, P9813, D705.
Supporting international standard protocol DMX512/1990 interface, with DMX administration mode to invoke
the built-in functions for choosing mode, speed, brightness, types and direction changing by DMX512
console. Furthermore, it has the DMX decoder mode, customers could use DMX512 console to program
& control every channel of the LEDs with the compatible ICs listed above. (0-100% dimming range, program
any lighting effect required).
Built-in LCD operator display, powerful but simple easy to use. Two ways to adjust modes, speed & brightness
either by RF remote or controller itself.
1. Product Parameter:
LT-200 LED Digital Controller
Working Voltage:
12Vdc
(with a power adapter)
Power Consumption:
<2W
Output Signal:
SPI(TTL)
3rd Part Port: DMX512
Change Mode:
540 Modes
2. Function Features:
2.1 Built-in a LCD screen, simple to set up parameters.
2.2 Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in
any time, Monday to Sunday or holiday.
2.3 540 lighting modes. Such as 7 static color, sync jumping and smooth, color flow, color chasing, smooth
flow, meteor trailing, etc.
2.4 Multi-level changing speed, brightness, RGB grey scales adjustment, effect of movement direction, etc.
2.5 Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
LT-200 LED Digital Controller
LT-200
warranty
5 years
Control Qty:
1024 Pixels
Working Temperature: -30℃~65℃
Dimension:
L163×W125×H40mm
Package Size:
L269×W129×H46mm
Weight (G.W): 820g
1
