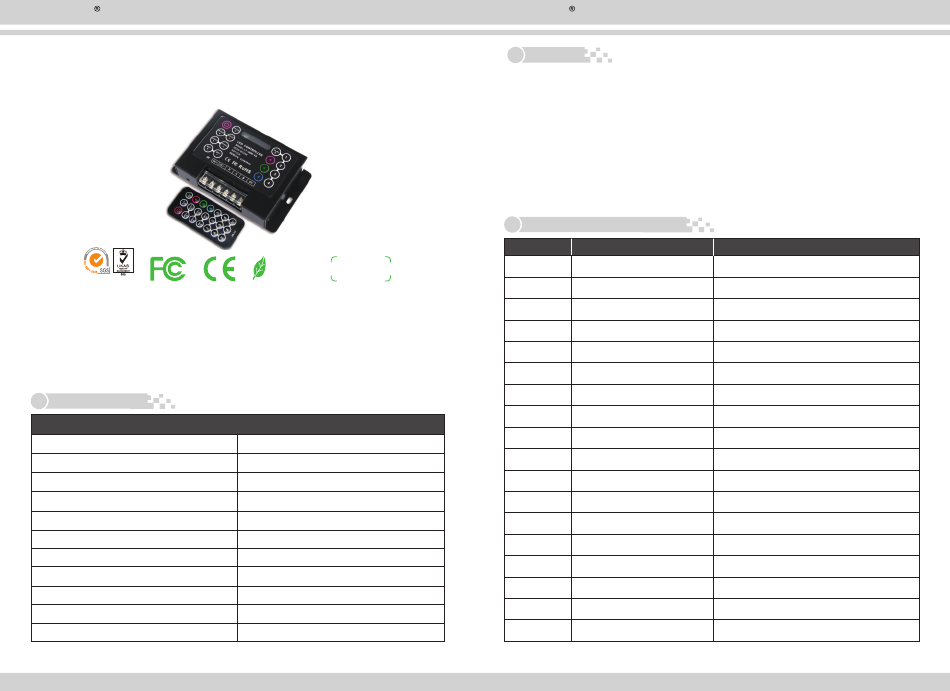

Ltech LT-3800-6A Quick Start Manual

LTECH
LT-3800-6A
LED RGB Controller
ISO9001:2008

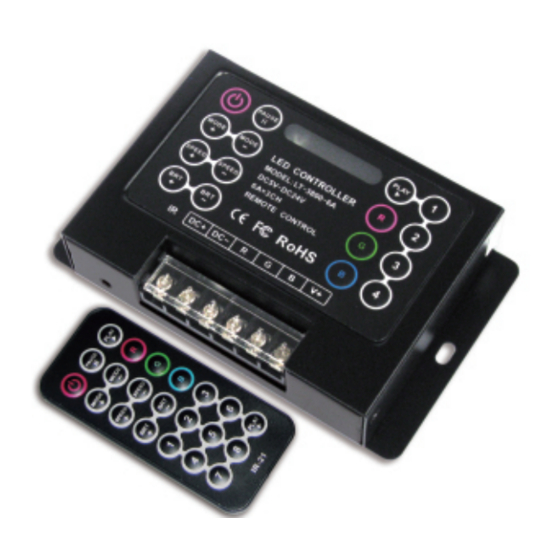

LT-3800-6A RGB controller is a unique DIY version as well as a powerful
combination that can control color changes of LED lights with 4-pin 3- channels
(Common anode), built-in 18 modes with touch functional buttons,provided
with IR wireless remote control panel, users can control color changes of LED
light by pressing the button on the controller or on the remote control panel,
very users friendly.
1. Technical Specs
LT-3800-6A Constant voltage controller
Power supply chosen
Input voltage
Max load current
Max load power
Changing mode
Scale level
Static dimming
Working temperature
Dimension
Package Size
Weight (G.W)
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
LT-3800-6A LED RGB Controller Manual
RoHS
warranty
3 years
COMPLIANT
DC CV SMPS
DC5V～DC24V
6A/CH 3CH Max 18A ×
90W/216W/432W(5V/12V/24V)
18 modes
256 steps per RGB
mixing up 4096 colors
℃ ℃
-30 -65
L142×W73×H30mm
L145×W88×H46mm
350g
1
Tel: +86 756 620 8823
LTECH
2. Features
1. Automatic switch from DC5-DC24V.
2. With 24 Buttons IR Wireless remote control, reliable control distance can
reach as far as 10m.
3. Several DIY Storage Buttons, to record your favorite effect .
4. 0-100% dimming and 16 levels of static brightness per RGB, can mix 4096 colors.
5. 3-Channel RGB full color control, maximum outputs 6A per Channel.
6. 256 Grey steps per RGB, color-smooth effect is gentle and accurate.
7.Can choose changing speed separately and adjust the brightness of each mode.
8.Can rest at current color and color depth by selecting PAUSE function.
9. Working with our LT-3060, can expand power unlimitedly.
3. Tables of changing modes
Sequence Modes
1
Static red
Static green
2
3
Static blue
Static yellow
4
5 Static purple
6
Static cyan
7
Static white
8
3 color skipping
9
7 color skipping
10
White color strobe
11
3 color smooth
12
Full color smooth
13 RG color smooth
RB color smooth
14
GB color smooth
15
White color fade & change
16
Cycle mode
17
RGB static dimming
18
LT@LTECHONLINE.COM
Fax: +86 756 620 8833
LT-3800-6A LED RGB Controller Manual
Description
Brightness adjustable
Brightness adjustable
Brightness adjustable
Brightness adjustable
Brightness adjustable
Brightness adjustable
Brightness adjustable
Brightness and speed adjustable
Brightness and speed adjustable
Brightness and speed adjustable
Brightness and speed adjustable
Brightness and speed adjustable
Brightness and speed adjustable
Brightness and speed adjustable
Brightness and speed adjustable
Brightness and speed adjustable
8-16 mode cycle
16 levels of brightness per RGB
2
WWW.LTECHONLINE.COM
