Summary of Contents for Ltech LT-310
- Page 1 LT-310-DC12V-DC24V Multi-functional Full-color Controller Manual 1 / 8 LT-310 Functional Full-color Controller V3.00 Version Manual (Please kindly read this manual before use Zhuhai Ltech Electronics Co Ltd Web: www.ltech-led.com T：+86-0756-6133283...
- Page 2 LT-310-DC12V-DC24V Multi-functional Full-color Controller Manual 2 / 8 ， Forword， Thanks for choosing LTECH Multifunctional LED Controller. We strongly recommend you to read this manual carefully before the installation and usage. Make sure you have completely understood the instructions so as to ensure normal working of the controller, be familiar with all of the operating skills.
- Page 3 LT-310-DC12V-DC24V Multi-functional Full-color Controller Manual 3 / 8 waterproof housing for outdoor use. 4、 Make sure correct connection to avoid fire and damage caused by short circuit. 5、 Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature..
-
Page 4: Brief Introduction

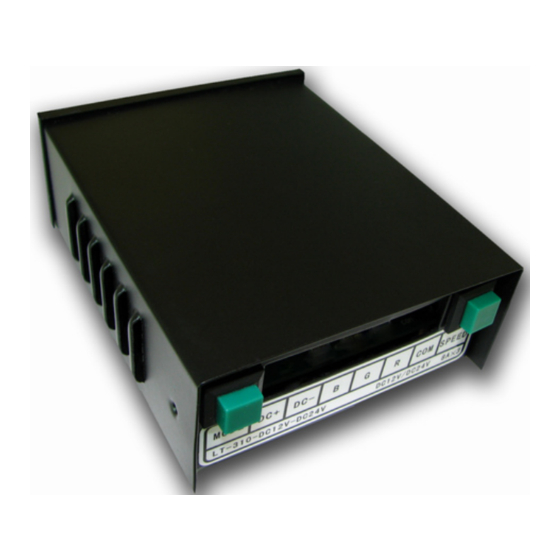

LT-310-DC12V-DC24V Multi-functional Full-color Controller Manual 4 / 8 Brief introduction LT-310B-DC12V-DC24V Multifunctional Full-color Controller is professionally used to control RGB color changes of Led lights with 4 pin-cable 3 channels (common plus), It has up to 25 color change patterns, such as locked single color, color jumping, screening, color smooth and so on color modes. - Page 5 LT-310-DC12V-DC24V Multi-functional Full-color Controller Manual 5 / 8 Part No LT-310B-DC12V-DC24V Input Vol: DC12V-DC24V Mode：25 color change patterns Output Vol: equal to input vol Protection: overload/heat protection Output Load Cur: 8A/route×3 Operating Tem: -35℃－70℃ Power Consumption: ＜1W Dimension: L135×W95×H40(mm) Package Dimension：...
- Page 6 LT-310-DC12V-DC24V Multi-functional Full-color Controller Manual 6 / 8 Press again, go to the first pattern (Static black) and back to normal cycle, from 1 to 24, not include the 25 pattern, ex-factory default is auto cycle. 2. SPEED button is for adjusting the change speed.
- Page 7 LT-310-DC12V-DC24V Multi-functional Full-color Controller Manual 7 / 8 RB CHANGE RB jumping GB CHANGE GB jumping WHITE CHANGE White screen flicker COLOR SMOOTH 7 colors gradual change RGB SMOOTH 3 colors gradual change RG SMOOTH RG gradual change RB SMOOTH...
- Page 8 LT-310-DC12V-DC24V Multi-functional Full-color Controller Manual 8 / 8 LT-310 Controller & LT-390 Power extension Module Zhuhai Ltech Electronics Co Ltd Web: www.ltech-led.com T：+86-0756-6133283...
