Ltech WiFi-102 LED Controller User Manual

LED Controller
WiFi-102
ISO9001:2008
With the improvement of people's living standard, more and more products are linked to mobile devices like
smart phones, tablet PCs, which makes life simple and intelligence. Using the emerging mobile device to
control LED lighting products becomes the aspirations of each customer. As a result, WiFi-102 controller
appeared, with the installation of controlling software on mobile devices like Android & IOS phones, tablet PCs.
they can remote control LED lighting products through WiFi, which makes LED control more intelligent and
humanization.
One WiFi - 102 controller can be used as dimmer, CT controller, even RGB controller. which means a significant
saving to middleman who need to stock up, now one product will realize your three desires.
In addition, this model has DIY function, Users can get any effect they want based on our controlling software
If you don't have any mobile devices with the controlling software at hand, you could also use our touch
controller-T series (T1, T2, T3) to control it , which provides more choices!
WiFi and remote wireless control operate based on the global universal 2.4 GH frequency range, By using the
same 2.4G antenna, the space pollution caused by WiFi and remote control using wireless signal from different
frequency range will be largely reduced.
1. Product arameter p
WiFi-102 Technical parameters
Power supply LED CV SMPS
Input voltage DC12V~DC24V
Output current Max 3A*3
Output control flexibly control single color, cold warm color, RGB LED lighting fixture
Control distance Max 100m
RGB color change mode 32 fixed modes, 8 DIY modes
Scene mode 9
℃ ℃
Operating temperature
-20 ~50
Dimensions L127.6×W73×H44.5mm
Package size L135×W80×H50mm
Weight (G.W) 290g
Software Technical parameters
Platform
Android 2.1 or above, IOS4.3 or above, with the wifi function
Size Android(2.2MB), iOS(3.4MB)
Language English
Category Tool
Others
Free, Plug-in-free
RoHS
warranty
3 years
COMPLIANT
z
1

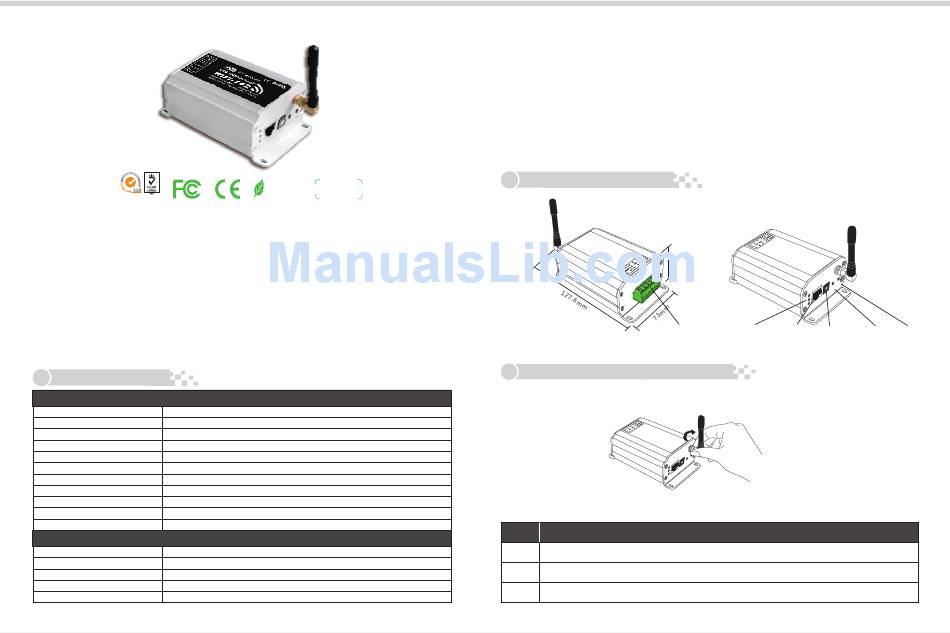

2. Configuration Diagram
. 5 m
4 4
Power input/LED output
Side A
3. Controller operating instructions
1. Install / uninstall ANT
Install the WiFi antenna clockwise, uninstall anticlockwise
R U N
E Y
T K
N K
LI E X
X
R X /T
ANT installation instruction
2. Work status indicator instructions
indicator
light
The indicator flashes quickly about 25 seconds during the electric initialization. Flashes once per second after
RUN
initialization finished.
The indicator light stays lit when the mobile device connects with WIFI controller, and turns off when not
LINK
connected.
RX/TX
The indicator light turns on when the controller receives or transmits the WiFi data. Turns off in the free time.
m
E N E
S C
F F
/O
N O N
R U
S S ID
E Y
K T K
L IN E X
X
/T
R X
Indicator EXT Key RJ45 SSID code switch
Side B
N
FU
C H
AT
M
ID
S S
instructions
2
on/off scene
