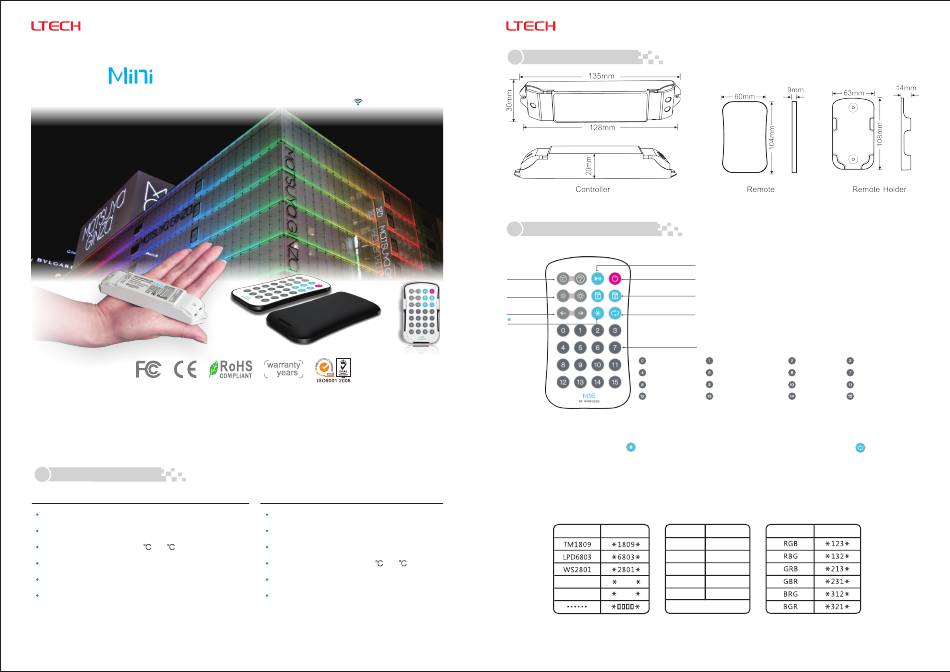

Ltech SPI-16 Quick Start Manual

SPI-16
LED Fantastic controller

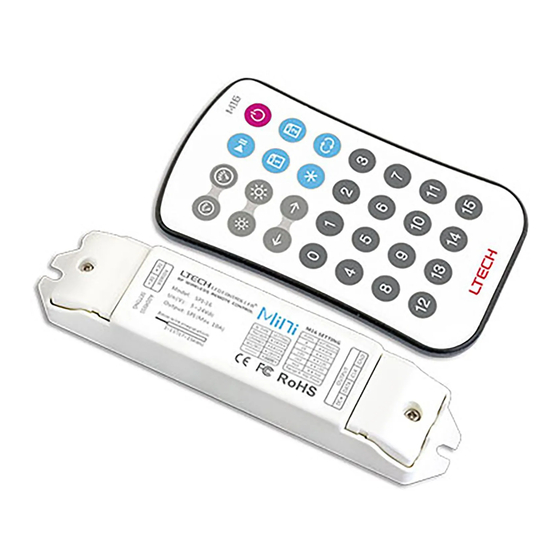

SPI-16 is a Mini LED pixel controller, equipped with RF remote M16, almost able to control all IC-driven LED
lights. Compact and powerful, various built-in changing effects and customized scene modes can bring you
fantastic color!
By RF remote control M16, you can select from a variety of dynamic lighting effects, set controlled pixels
quantity, adjust the changing speed and brightness, change the lighting moving direction, adjust RGB
sequence, select the IC type, store and play customized scene etc.
1. Product Parameter:
SPI-16 Controller:
P ower Input 5~24Vdc :
Output : SPI
Working Temperature:
-30 ~55
Dimensions: L135×W30×H20(mm)
Weight(N.W.): 47g
Compatible driving IC:
Many kinds, can be customized also
Package Size: L132×W198×H22(mm)
★
Connect power supply to pixel LEDs separately, in case of overvoltage, overcurrent to the receiver.
Receiver only supply a signal to the LEDs.
SPI-16 LED Fantastic controller
RF WIRELESS
Wall-mounted
5
M16 Remote:
Working Voltage: 3V (battery CR2032)
Working Frequency: 433.92MHz
Remote Distance: 30m
Working Temperature: -30 ~55
Dimensions: L104×W58×H9(mm)
Weight(N.W.): 42g
Total Weight(G.W.):
135g
1
2. Product Dimension:
3. The Remote Instruction:
Pause/Continue
On/Off
Speed
Scene Keys
Brightness
Long press to save
the current scene
Direction
Loop Playback
Setting Key
0-15
Mode Keys
7 Colors Jump
7 Colors Horse Race
6 Colors Trail
6 Colors Float
Other Setting Instructions of Remote
Loop playback: Short press key, then continuous press any 0-15 numeric keys, last press
1.
Controller will play cycle the corresponding mode of the numeric key.
Method for selecting IC / RGB Sequence:
2.
Can control the following pixel LEDs: TM1804/TM1809/TM1812/UCS1903/UCS1909/UCS1912/UCS2903/
UCS2909/UCS2912/WS2811/WS2812 in factory default.
Manipulate table for choosing ICs, RGB order or pixel No..
IC Type Setting e.g. Pixel
8
16
100
160
TLS3001 3001
P9813 9813
360
Range: 8-360 pixels
[Attn ]: The running light of SPI-16 controller flashes 2s means set completed.
When setting IC type, pixel number and RGB order, select multiple keys at uniformed speed. Not too fast.
SPI-16 LED Fantastic controller
The Learning ID Method:
The receiver and remote are Pre-synced at factory. If deleted
accidentally, the sync method is as follows (multiple remotes
could be synced to one receiver):
Learning ID:
Short press "ID learning button" on the SPI-16 receiver, the running
light is on. Then press any keys on the remote M16, the running
light flicker several times, activated.
Canceling ID:
Press "ID learning button" on the SPI-16 receiver in 5s, the running
light flicker several times, canceled.
7 Colors Flash 7 Colors Fade 7 Colors Smooth
7 Colors Circle Horse Race 7 Colors Flow 7 Colors Gradients Flow
6 Colors Circle Trail Gradients Trail White Meteor
6 Colors Double Trail Color White Float Bi-color Float
key to finish.
Setting e.g. RGB Order Setting
**
008
**
016
**
100
**
160
**
360
2
