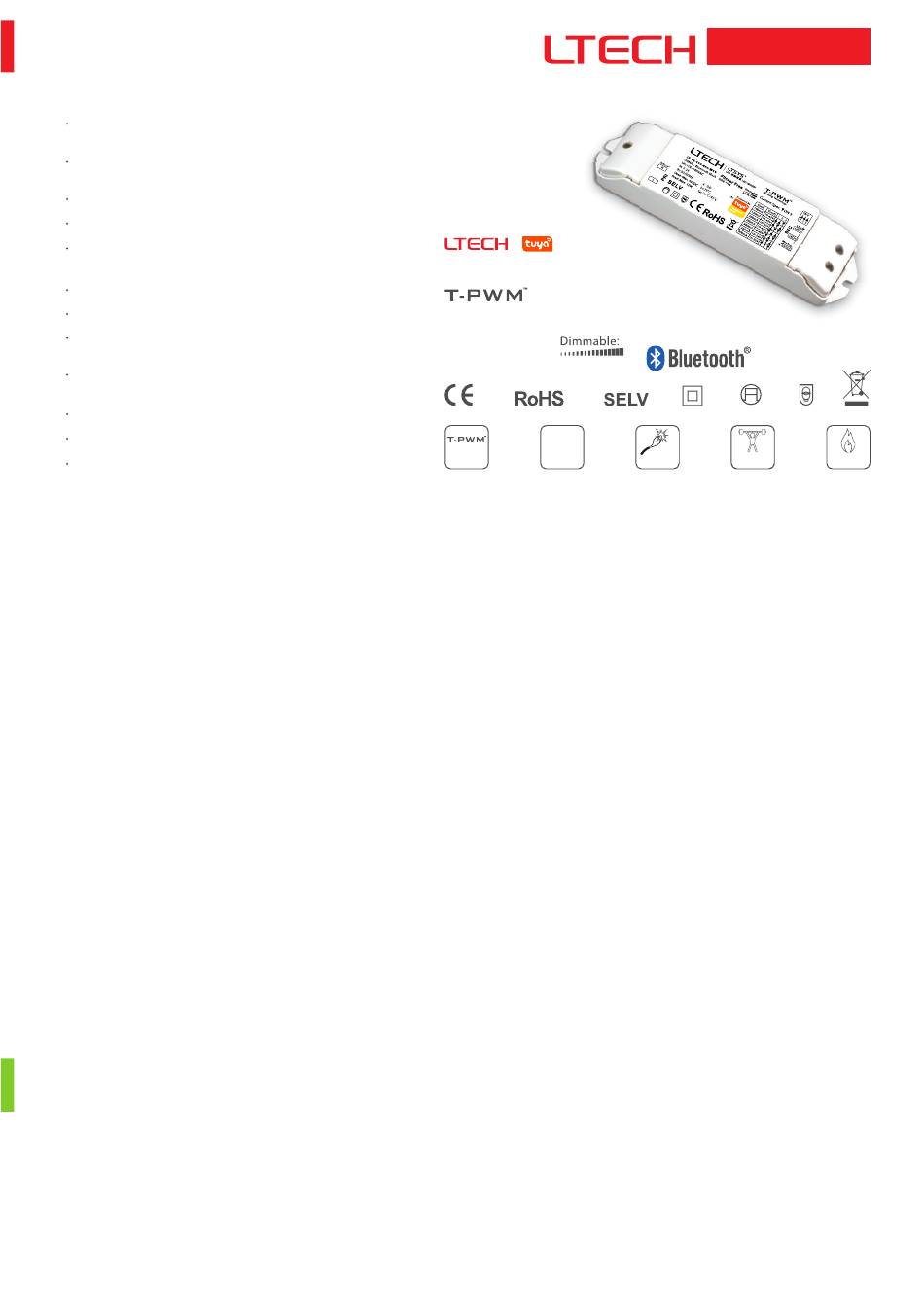

Ltech T-PWM SE-12-100-400-W1Y Manual

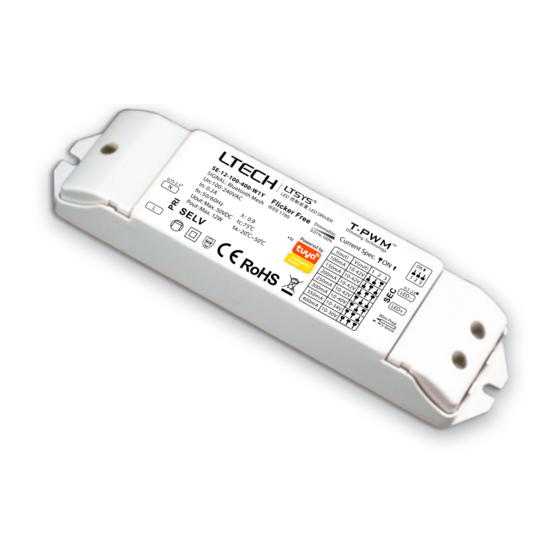

SE-12-100-400-W1Y
Intelligent LED Driver
Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective
housings with small size and light weight.
Bluetooth Mesh & Tuya application protocol with high networking
capability are reliable and stable.
Support control iOS or Android devices through Bluetooth connection.
With soft-on and fade-in dimming function enhancing visual comfort.
T-PWM™dimming technology allows continuous and flicker-free
images under high-speed shooting.
0-100% flicker-free dimming with high frequency exemption level.
Dimming from 0~100%, down to 0.01%.
Innovative thermal management technology protects the power
life intelligently.
Overheat, over voltage , overload, short circuit protection and
automatic recovery.
Suitable for indoor light applications ofⅠ/Ⅱ/Ⅲ
type.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).
Technical Specs
Wireless type: Tuya Bluetooth Mesh
Output voltage: 9-42Vdc
Max output voltage: 50Vdc
Output current: 100-400mA
1W~12W
Load power range:
Flicker level: No visible flicker/High frequency
exemption level
Dimming range:
0~100%, 0.01% depth dimming
LF current ripple (< : <1%
120Hz)
Current accuracy:
±5%
Ripple & noise:
≤2V
PWM dimming frequency:
≤3600Hz
Protection
Overvoltage protection: Shut down the output and recover automatically
once it exceeds no-load voltage.
Overload protection: Shut down the output and recover automatically
once it exceeds 1.02 times of the max load power.
Overheat protection: Intelligently adjust or turn off the output current if the
PCB temperature ≥110°C, and recover automatically
Short circuit protection: When short circuit occurs, shut down the output and
recover automatically.
Others
Dimensions(LxWxH): 167x41x32mm
(Constant Current)
Package size(LxWxH): 168x43x35mm
|
Strategic Partnership
Super depth dimming technology
Flicker-free
IEEE 1789
0 . 0 1 - 1 0 0 %
Flicker-free
Super depth
IEEE 1789
dimming technology
Input voltage: 100-240Vac (120-300Vdc)
Frequency: 0/50/60Hz
Input current: 115Vac≤0.2A, 230Vac≤0.1A
Power factor: PF≥0.95/115Vac , PF≥0.85/230Vac (Full load)
80%
Efficiency (Typ):
Inrush current: Cold start5A@230Vac (Test twidth=40 us tested under
50% lpeak)
Anti surge:
L-N: 1kV
Leakage current:
<0.24mA/230Vac
Working temperature:
ta: -20 ~ 50°C tc: 75°C
Working humidity: 20 ~ 95%RH, non-condensing
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Vibration:
Safety & EMC
Withstand voltage:
Insulation resistance:
Safety standards:
EMC emission:
EMC immunity:
Strobe test standard:
Gross weight : 120g±10g
— 01 —
Tuya Bluetooth Mesh
Overload
Short circuit
protection
protection
I/P-O/P:3750Vac
I/P-O/P:500Vdc/1min/25°C/70%RH≥10MΩ
IEC/EN61347-1, IEC/EN61347-2-13
EN55015, EN61000-3-2 , IEC61000-3-3
EN61000-4-2,3,4,5,6,8,11, EN61547
IEEE 1789
www.ltech-led.com
Overheat
protection
