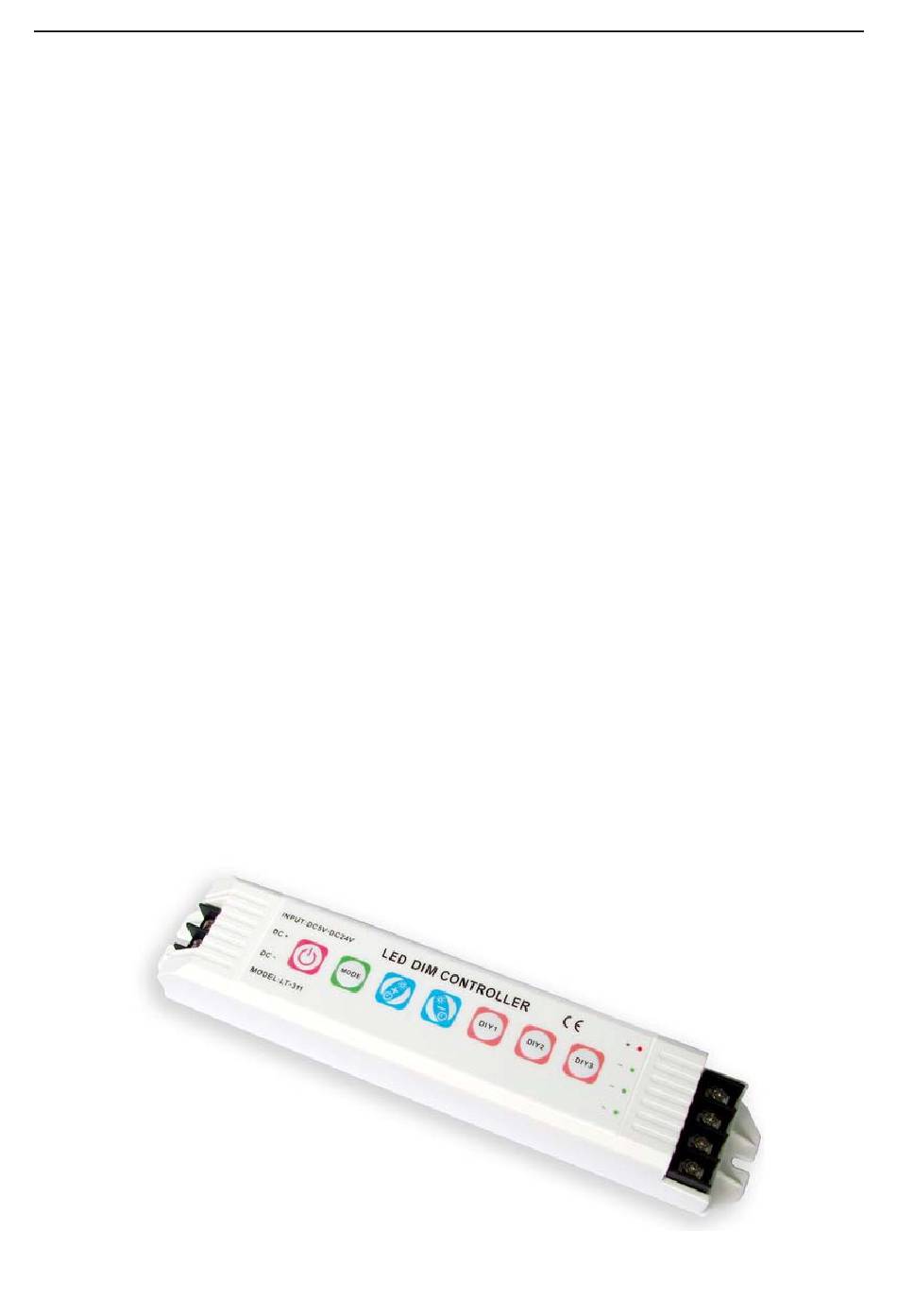

- Page 1 LT -311 Multi-functional LED Dim Controll V2.0 Page 1 of 9 LT-311 LED Dim controller V2.00 USER INSTRUCTIONS...
- Page 2 Page 2 of 9 ， Forword， Thanks for choosing our LT-311 Dim Controller. Before installation and use, we strongly recommend you to read through this manual carefully. If device has been damaged during transport, please report it to your supplier immediately.
-
Page 3: Product Brief

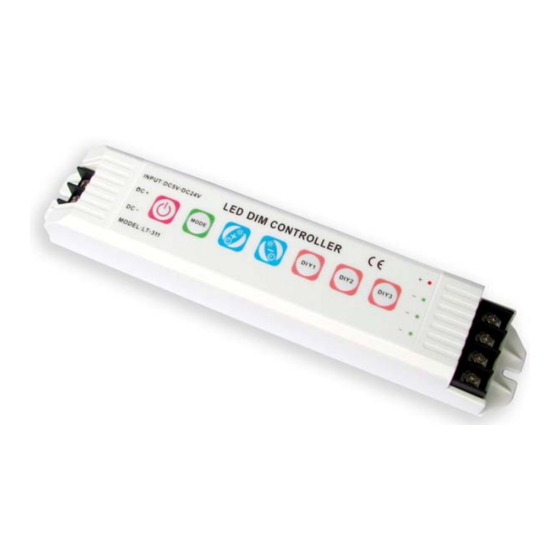

V2.0 Page 3 of 9 Product Brief LT-311 multi-functional LED Dim controller is dedicated to control single color changes (common anode), LED lamp’s brightness and synchronic color changing effect. Extensively used in all kinds of LED lighting decoration. If used together with our LT-3060 power amplifier，each can control twice the quantity of LED lights by every adding one more, which can achieve the unlimited output power repeating. - Page 4 LT -311 Multi-functional LED Dim Controller V2.0 Page 4 of 9 adjustment, 7、 0%、25%、50%、75%、100% brightness easy select, 8、 3 DIY modes, 9、 Remote controllable（option）. Ⅲ. Size Ⅳ.Tables of changing modes Sequence Modes Description Static brightness 1 0% brightness，support BRT adjustment Static brightness 2 25% brightness，support BRT adjustment Static brightness 3...
- Page 5 LT -311 Multi-functional LED Dim Controller V2.0 Page 5 of 9 color 8 levels speed adjustment, skipping Gradual dark and 8 levels speed adjustment, gradual bright Ⅴ. Operating instructions The controller has 7 function keys: ON/OFF、MODE、BRT/ SPEED+、BRT/ SPEED-、DIY1、DIY2、 DIY3 Sign Button Description on/off key：...
- Page 6 LT -311 Multi-functional LED Dim Controller V2.0 Page 6 of 9 BRT/ SPEED-: BRT/ SPEED- press it at the BRT status to decrease the brightness， press it at the Speed status to decrease the speed DIY1： Press it for 3 seconds，LED flashes DIY1 twice，and then remember the current brightness or color changing effect and...
- Page 7 LT -311 Multi-functional LED Dim Controller V2.0 Page 7 of 9 2. Collect to single color high power LED lamps, the controller provides controlling signals only; the lights need extra power based on the specific working voltage of the lights. Each controller theoretically can control unlimited quantity of the lamps.
- Page 8 LT -311 Multi-functional LED Dim Controller V2.0 Page 8 of 9 2、 Method Two：Connect the controller and the amplifier by a method of “hand in hand”. 3、 Method Three：The LED modules are followed by amplifiers in series.
- Page 9 LT -311 Multi-functional LED Dim Controller V2.0 Page 9 of 9 Ⅷ. Exception Handles Malfunction Causation Settle 1、 No power from plug 1、 Check the socket 2、 Check the malfunction， 2、 Power supply No Light protector works re-power on 3、 Incorrect connection 3、...
