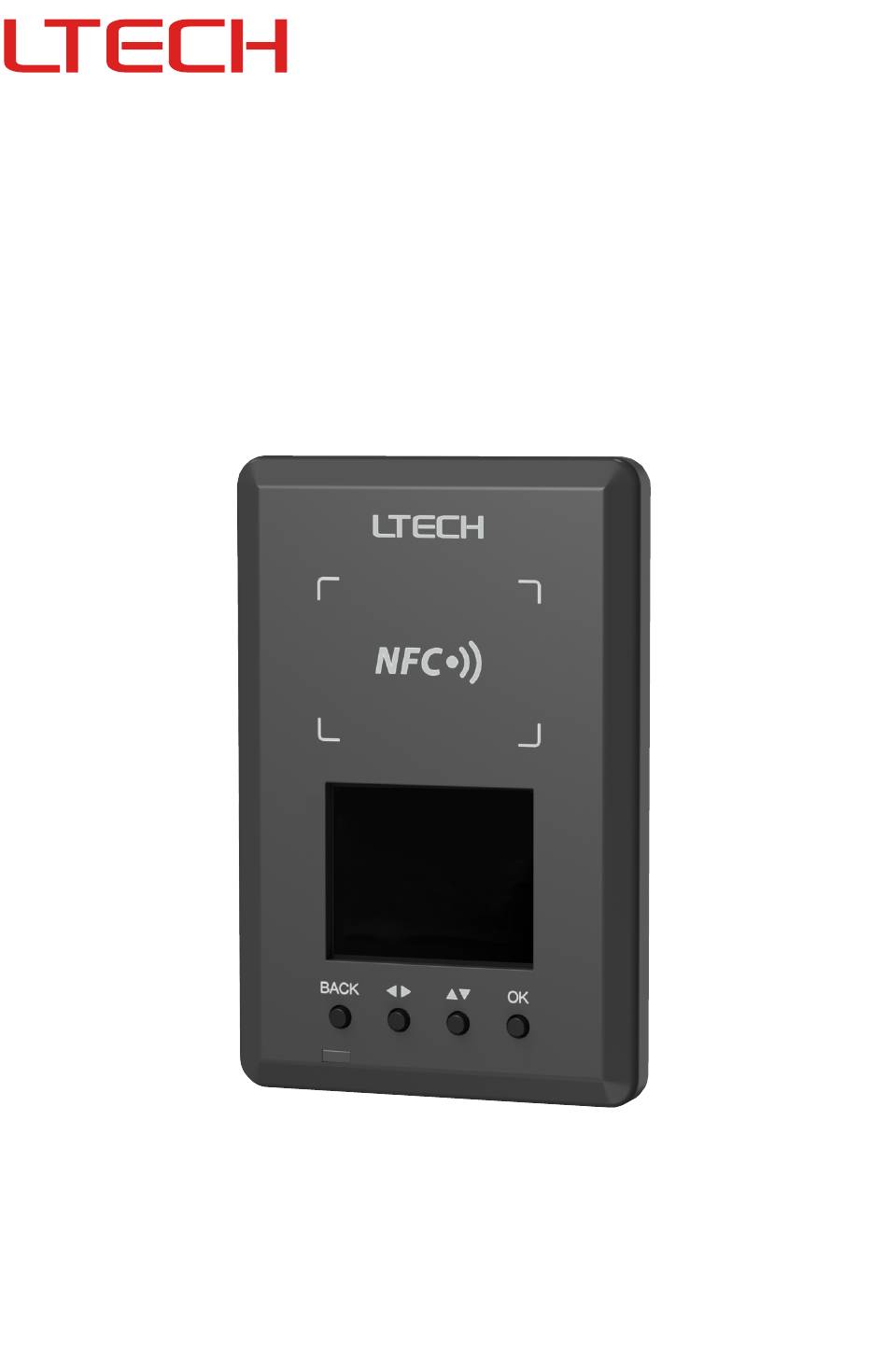

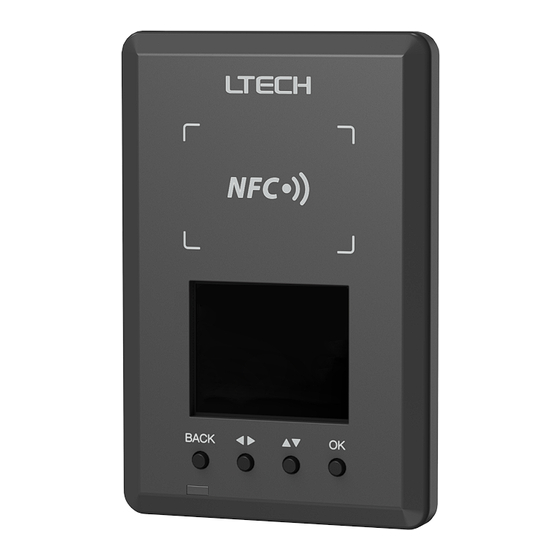

- Page 1 LT-NFC NFC Programmer Manual www.ltech-led.com...
-
Page 2: Product Introduction
Product Introduction Change the driver parameters on the NFC programmer and the modified parameters can be written to batch drivers to improve project efficiency; Use your NFC-capable phone to read the driver parameters and change them depending on the needs. Then hold your phone close to the drivers to write the advanced parameters to the drivers;... -
Page 3: Technical Specs
Technical Specs Product Name NFCProgrammer Model LT-NFC Communication Mode Bluetooth, NFC WorkingVoltage 5Vdc WorkingCurrent 500mA Working Temperature 0°C~40°C Net Weight Dimensions(LxWxH) 69×104×12.5mm Package Size(LxWxH) 95×106×25mm Dimensions Unit： mm 12.5 Front view Side view... -
Page 4: Screen Display
Screen Display Buttons Short press “BACK” button to return to the previous page Long press “BACK” button for 2s to return to the home page BACK Short press “ ” button to select parameter Short press “ ” button to modify parameter Short press “OK”... - Page 5 NFC Programmer Instructions Change the driver parameters on the NFC programmer and the modified parameters can be written to batch drivers. Before you start to set driver parameters on the programmer, please power off the programmer first. NFC logo on the driver 1.
- Page 6 3.Change driver parameters (such as: Output current/address) 3.1Set output current ” button to select In the programmer’s main interface, press “ “Iout” and press “OK” button to go to the editing interface. Then press“”to modify the parameter value and press“”to select the next digit and edit.
- Page 7 4.Write parameters to LED drivers In the programmer’s main interface, press “ ” button to select 【 Ready to Write】, then press “OK” button and the screen now shows【Ready to Write】. Next, keep the sensing area of the pro- grammer close to the NFC logo on the driver. When the screen displays “Write succeeded”, it means the parameters have been successfully modified.
- Page 8 Use the NFC Lighting APP Scan the QR code below with your mobile phone and follow the pro- mpts to complete the APP installation (According to performance requirements, you need to use a NFC-capable Android phone, or an iphone 8 and later that are compatible with iOS 13 or higher). Before you start to set driver parameters on the programmer, please power off the programmer first.
- Page 9 Cancel 2. Edit parameters Click【 Parameters】 to edit output current, address, dimming inter- face and the advanced parameters like advanced DALI template and more (Editable parameters might vary depending on the types of drivers).
- Page 10 3.Write parameters to LED driver After parameter settings are done, click【 Write】 in the upper right corner and keep your phone close to the NFC logo on the driver. When the screen displays "Write succeeded", it means the driver parameters have been successfully modified.
- Page 11 DALI template DALI template 2.Apply advanced template In the “Parameter settings” interface , tap【 Advanced DALI template】 to select the created template and write it to the driver by tapping 【Confirm】 .
- Page 12 Read/Write on NFC programmer Connect your NFC-capable phone to the NFC programmer and use your phone to read the driver parameters, edit the solution and save it to the NFC programmer. So the advanced parameters can be written to batch drivers. 1.
- Page 13 2. Read LED driver In the interface of programmer information, choose any of the solu- tions to edit, then hold your phone close to the NFC logo on the driver to read driver parameters. Cancel 3. Edit parameters Click 【 Parameters】 to edit output current, address, dimming inter- face and the advanced parameters like advanced DAL template and more (Editable parameters might vary depending on the types of drivers).
- Page 14 EditSOL1 4. Write parameters to LED driver When the programmer screen displays “Sync SOL1 succeeded”, press the “BACK” button to return to the home page and press the “ ” button to switch to “APP solutions”. Then press “OK” button to go to the solution interface and press “...
- Page 15 Advanced DALI template Integrate the functions of the DALI lighting system, edit the DALI group and lighting effects for scenes, then save them to the advan- ced template to achieve lighting programming. 1. Create advanced template In the interface of programmer information, tap【 DALI template on programmer】...
- Page 16 2. Apply advanced template In the “Parameter settings” interface , tap 【Advanced DALI tem- plate】 to select the created template and write it to the driver by tapping【OK】.
-
Page 17: Firmware Upgrade
Firmware upgrade 1. Turn on Bluetooth on your phone and power the NFC program- mer using the USB cable. Press “ ” button on the programmer to switch to “BLE connection” then press “OK” button to put it into BLE connection state. On the APP home page, tap【 Read/Write on NFC programmer】... -
Page 18: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this war- ranty, and release in written form shall prevail. www.ltech-led.com...
