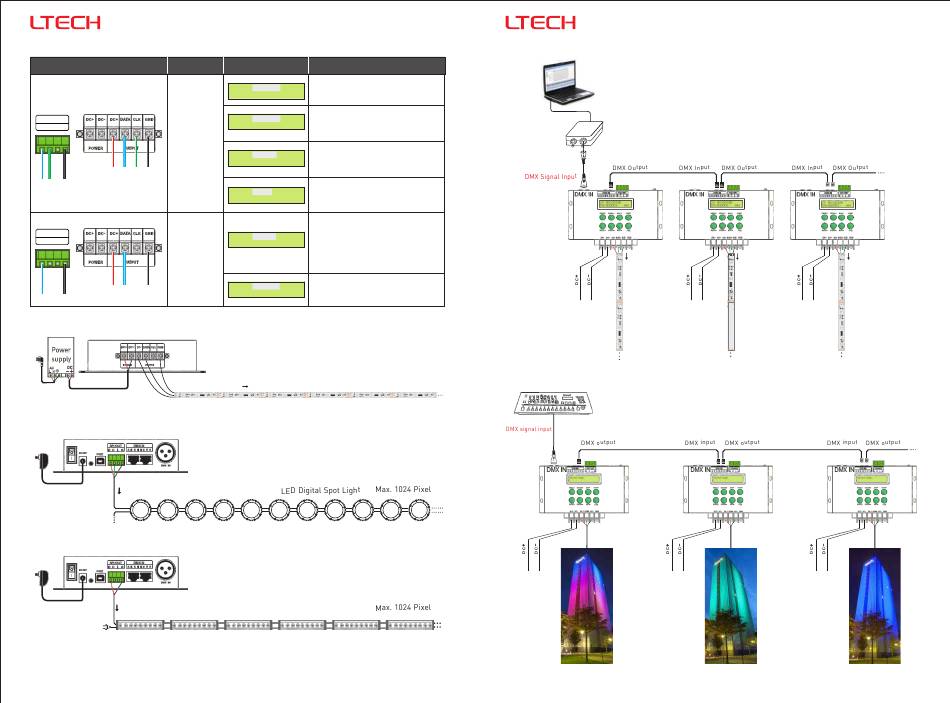

Ltech LT-200 Quick Start Manual page 4

6. Wiring Diagram:
Wiring Method Signal cable
SPI OUT
D C L G
Two cables
DATA CLK
SPI OUT
D C L G
Single cable
DATA
.
6 1 Sharing power supply
SPI Signal Output
12Vdc
6 . 2 Power-up separately
Adapter
100-240Vac
SPI Signal Output
12Vdc
48Vdc
Adapter
100-240Vac
SPI Signal Output
12Vdc
220Vac
LT-200 LED Digital Controller
Choosing IC Compatible ICs
LPD6803, LPD1101, D705
:
CHIP LPD6803
ORDER RGB :
UCS6909, UCS6912
:
CHIP LPD8806
LPD8803 LPD8806 ,
ORDER RGB :
:
CHIP WS2801
WS2801 WS2803 ,
:
ORDER RGB
:
CHIP P9813
P9813
:
ORDER RGB
TM1804 , TM 1809 , TM 1812, TM1914,
TM1914A, UCS1903, UCS1909,
CHIP : TM1809
UCS1912, UCS2903, UCS2909,
ORDER RGB :
UCS2912, WS2811, WS2812,
KL592D, GS8206(BGR), SM16703
CHIP : TLS3001
TLS3001 TLS3002 ,
ORDER RGB :
Digital LED Strip
Hi-power Wall Washer
6
.
6 3 Connected with DMX 512 computer console to realize DMX decoding function.
DMX 512
USB-DMX
Signal converter
Computer
Console
SPI Signal Output
LED Strip
Power Input Power Input
12Vdc
6.4 Connected with DMX 512 manual console, realizing DMX administrative function.
DMX Manual console
Power input Power input
12Vdc 12Vdc
LT-200 LED Digital Controller
SPI Signal Output SPI Signal Output
LED Strip LED Strip
Power Input
12Vdc 12Vdc
Power input
12Vdc
