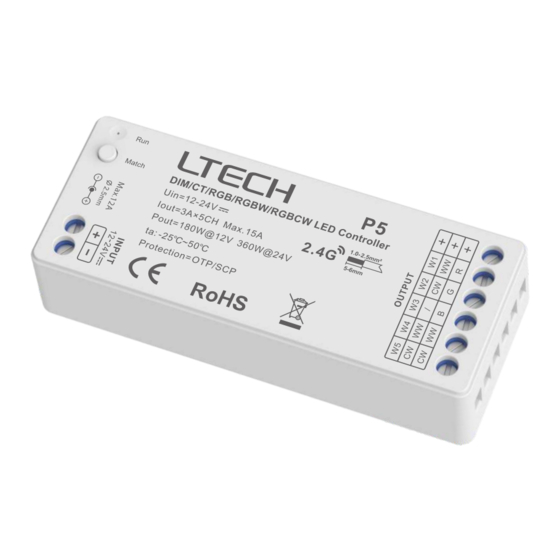

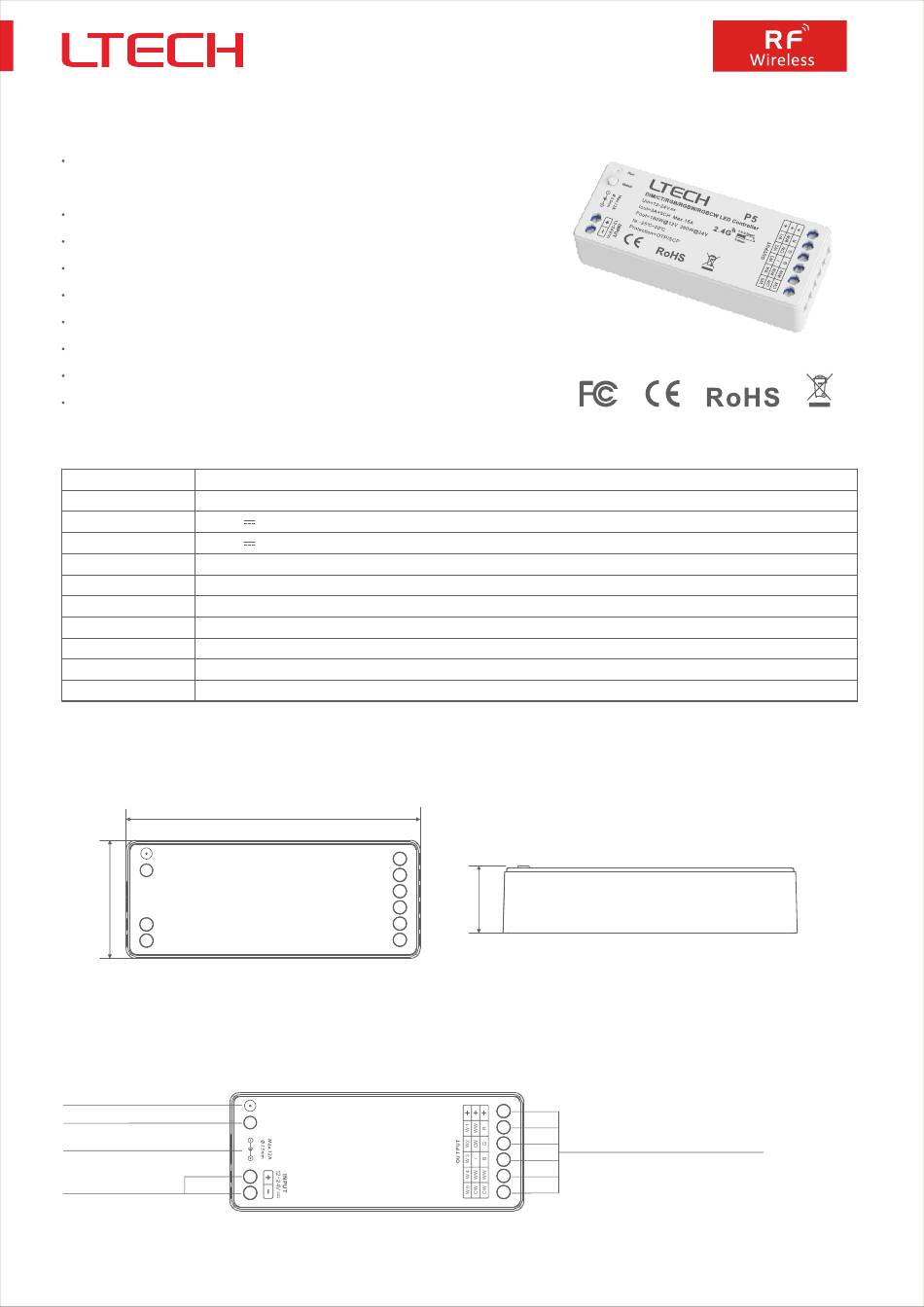

Ltech P5 Quick Start Manual

DIM/CT/RGB/RGBW/RGBCW
LED

Controller
Small size and light weight. The housing is made from V0 flame retardant
PC materials from SAMSUNG/COVESTRO.
With soft-on and fade-in dimming function, enhancing your visual comfort.
2.4GHz wireless signal , no signal wire needed.
5 channels with constant voltage output.
Control DIM, CT, RGB, RGBW, RGBCW light.
Work with a MINI series RF 2.4GHz remote.
Built-in 12 dynamic modes.
One controller can be controlled by 10 remotes.
Sync dynamic effects between controllers in the same group/zone.

Technical Specs

Model P5
Input Signal RF2.4GHz
Input Voltage 12-24V
Output Voltage
12-24V
Load Current 3A×5CH Max. 15A
Load Power
180W@12V 360W@24V
Protection

Over Temperature Protection, Anti Reverse Connection Protection


Working Temp.
-25°C
~
50°C




Dimension L91×W37×H21(mm)




Package Size
L94×W39×H22(mm)
Weight(G.W.) 46g
Product Size
Uu :
mm
it
37

Terminal Description

Running light
ID learning button
DC power supply
12-24Vdc power inpu
91
Run
Match
P5
1 1
21
W5 W4 W3 W2 W1 +
CW WW /
CW WW B
P5
LED lamp connection
Dimming
CW WW +





Color temperature
+
G R RGB/RGBW/RGBCW control
