- Page 1 RGBW Controller RGBW 2.4GHz Touch RGBW Sync/Zone 8 Zones Sync/Zone 2 in 1 Scene 3 × Charging Scene-mode...
-
Page 2: Product Size

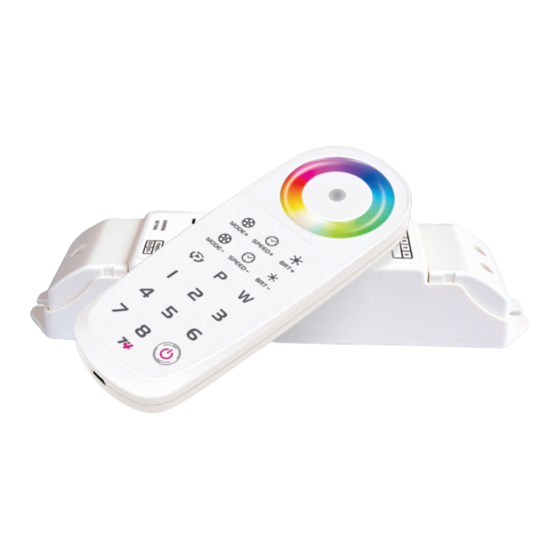

LED RGBW Controller 1. Product Size: LED RGBW Controller 27mm 60mm 145mm Remote Remote Holder 175mm T4-CV T4-CC 170mm T4 is the 2.4GHz RF wireless sync/zone RGBW controller which adopts 4 global initiate technology. It has powerful function that general RF remote control can’t realize, especially in wireless connection between receivers to realize sync dynamic change effect. - Page 3 LED RGBW Controller 2. Technical Specs: T4 Remote T4-CV Receiver T4-CC Receiver Charging Voltage: Input Voltage: 5～24Vdc Input Voltage: 5Vdc(Built-in lithium battery) 12～48Vdc Working Current: Current Load: 5A×4CH Max 20A Output Voltage: <30mA 3～46Vdc Working Frequency: Output Power: Current Load: 2.4GHz CC 350/700/1050mA×4CH RF Remote Distance:...
- Page 4 LED RGBW Controller 4. The Learning ID Method: Learning ID: 1. Turn on the receiver and remote. 2. Short press "ID learning button" on the receiver, the running light keeps on, then long press “1-8" zone-selection keys on the remote, the running light returns to flash (the buzzer long beep, the green light flashes 3 times), activated.
-
Page 5: Remote Instructions
LED RGBW Controller 6. Remote Instructions: Built-in two control programs, it is convenient for user’s different habits and place, free switching the two programs. Highlights Highlights Control Unlimited Receivers Zone Control Arbitrarily or Synchronously. Sync Control. Programmable Function. Programmable Function. 8 Save Keys. - Page 6 LED RGBW Controller The Usage of The Programming “P” : A. Sync Program: Long press the key in 2 seconds, the buzzer long beep, means enter the programming mode. 2) Color selection: Short press a key from “1-8" in order, then press Sync Status “MODE”...
- Page 7 LED RGBW Controller The Usage of The Programming “P” : B. Zone Program: Long press the key in 2 seconds, the buzzer long beep, means enter the programming mode. Sync Status 2) Color selection: Short press a key from “1-8" in order, then press Indicator Light Touch Color Circle key or “touch color circle”...
- Page 8 LED RGBW Controller 7. Tables of Changing Mode: Color Press button to switch the 3 types Press Button Jumping Smooth Strobe to Switch color Black Static Red Red strobe Red fade out and fade in Green Static Green Green fade out and fade in Green strobe Blue Static Blue...
-
Page 9: Wiring Diagram
LED RGBW Controller 8. Wiring Diagram: 5-24Vdc 5-24Vdc 5-24Vdc 12-48Vdc 12-48Vdc 12-48Vdc …… OUTPUT OUTPUT OUTPUT Round LED Panel Light Panel Light Panel Light — 8 —... - Page 10 LED RGBW Controller 9. Other Special Functions: A. Reset Function: Feature: Reset function is available when remote operates abnormally. Operation: Long press the 2 keys simultaneously, release after 3 seconds, the remote will auto off, undo for more than 1 minute, means reset completed.
-
Page 11: Warranty Agreement
LED RGBW Controller 10. Attention: A. The product shall be installed and serviced by the qualified person. B. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure. C. - Page 12 Applied Range Parameters Charging voltage: DC5V (Built-in lithium battery) Architectural ornament: business area, airport, subway station. Working current: ≤30mA Interior decoration: hotel, shopping mall, square, restaurant, Working frequency: 2.4GHz pub, home furnishing, etc. Remote distance: 30m Signboard, billboard. With USB charging port Anywhere else, where uses LED for dimming, color temperature Zone 1 and full color adjustment.
