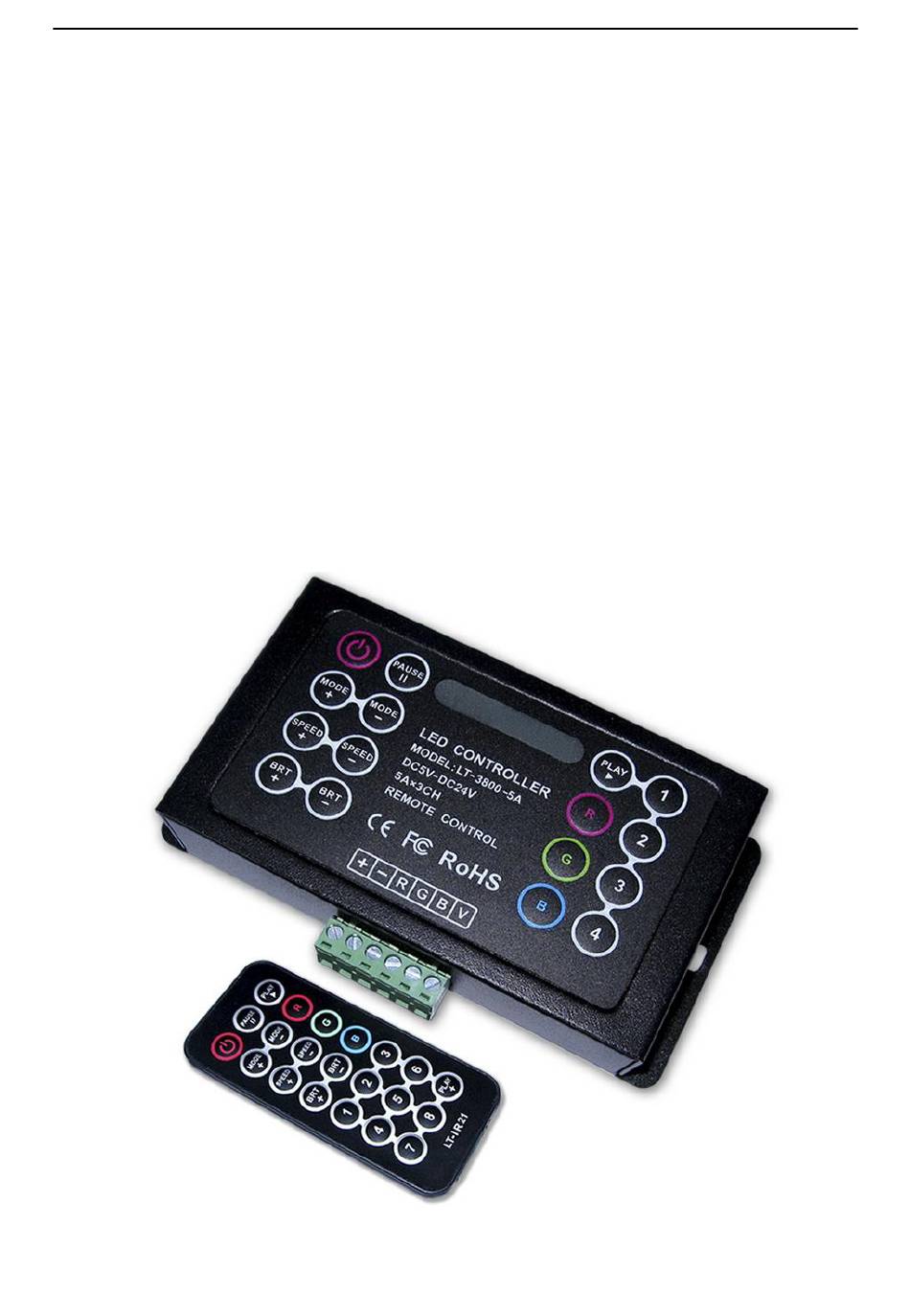

- Page 1 LT -3800-5A Multi-function LED Controller User Instructions Page 1 of 10 LT-3800-5A LED Multi-function Controller USER INSTRUCTION (Pls kindly read through instructions before use)
-
Page 2: After-Sales

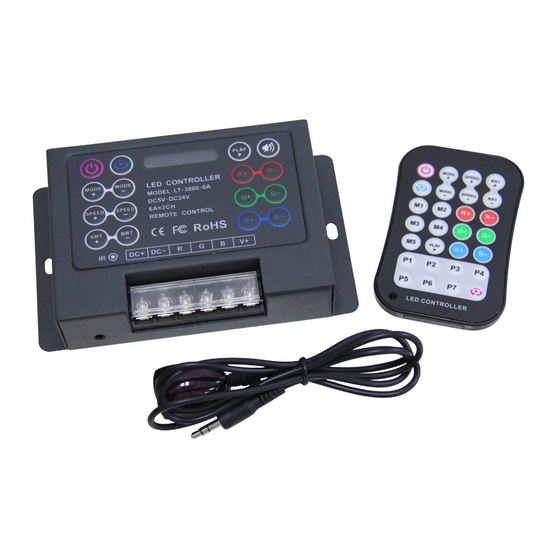

User Instructions Page 2 of 10 ， Forword， Thanks for choosing our LT-3800-5A Controller. Before installation and use, we strongly recommend you to read through this manual carefully. If device has been damaged during transport, please report it to your supplier immediately. - Page 3 User Instructions Page 3 of 10 Product Brief LT-3800-5A RGB controller is a unique DIY version as well as a powerful combination that can control color changes of LED lights with 4-pin 3-loop cables (common anode), built-in 18 modes with touch...
- Page 4 LT -3800-5A Multi-function LED Controller User Instructions Page 4 of 10 Can choose changing speed separately and adjust the brightness of each mode. Can rest at current color and color depth by selecting PAUSE function. Working with our LT-3060, can expand power unlimitedly. Ⅲ.
- Page 5 LT -3800-5A Multi-function LED Controller User Instructions Page 5 of 10 Dimension of IR remote Ⅳ. Conjunction diagram...
- Page 6 LT -3800-5A Multi-function LED Controller User Instructions Page 6 of 10 Ⅴ, Operating instructions 1, Instructions of controller and remote’s keys: Instruction of controller’s buttons Instruction of IR remote’s buttons...
- Page 7 LT -3800-5A Multi-function LED Controller User Instructions Page 7 of 10 2. Detailed key functions Sign Button Description Turn on/off the controller ON /OFF Any button can start the controller at off status. Press this button will rest at current color, it will PAUSE continue to change if press again.
- Page 8 LT -3800-5A Multi-function LED Controller User Instructions Page 8 of 10 Cycle play the 8 pre-setup modes in IR remote PLAY+ controller. 1.Press single R, G, B key continuously to change the brightness of RGB LED. Dimming 2. In single R, G or B dimming status, press BRT+/BRT- key to increase/decrease the brightness.of current LED Note:...
- Page 9 LT -3800-5A Multi-function LED Controller User Instructions Page 9 of 10 3-color Red, green and blue Brightness and skipping 3-color skipping speed adjustable 7-color Red, green, blue, Brightness and skipping yellow, purple, cyan, speed adjustable white 7-color shipping White color White（with all red, Brightness and strobe...
- Page 10 LT -3800-5A Multi-function LED Controller User Instructions Page 10 of 10 Ⅷ. Exception Handles Malfunction Causation Settle 1. No power from plug 1、 Check the socket 2. Power supply 2、 Check the malfunction, No light protection works re-power on 3. Incorrect connection or 3、...
