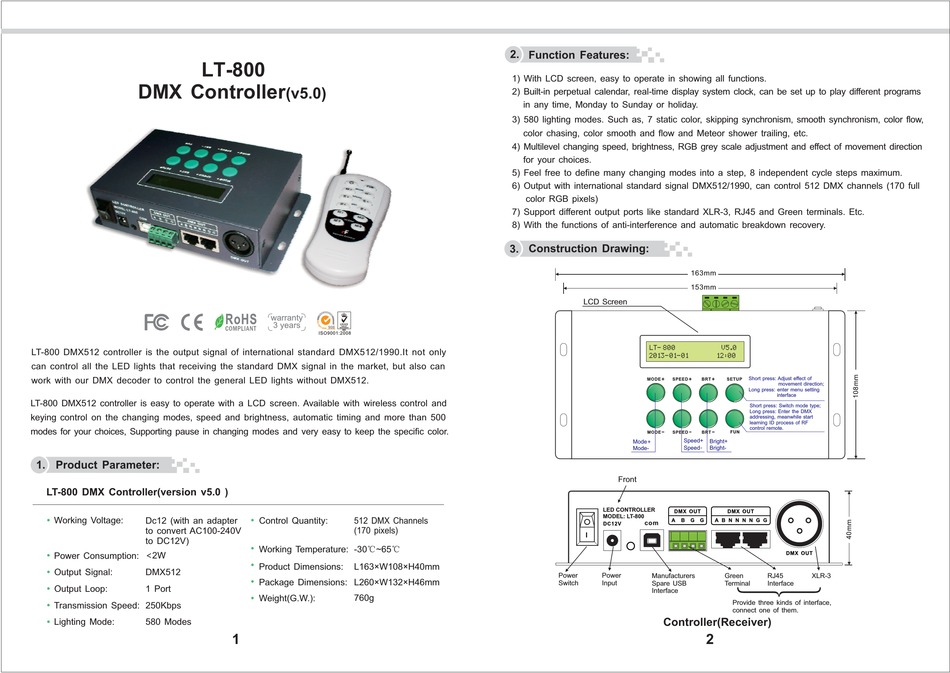

Ltech LT-800 Quick Start Manual

LT-800
DMX Controller

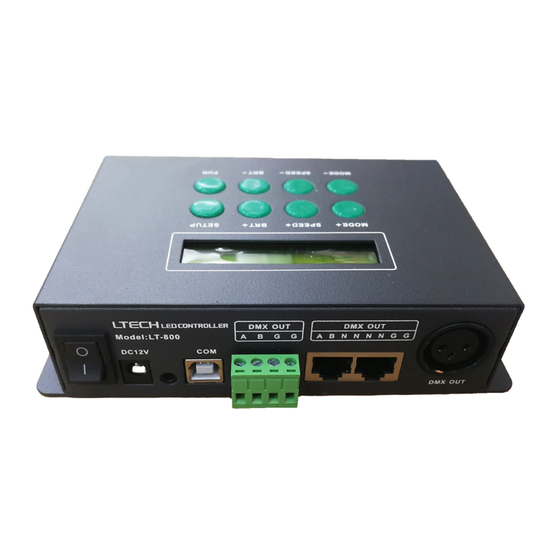

LT-800 DMX512 controller is the output signal of international standard DMX512/1990.It not only
can control all the LED lights that receiving the standard DMX signal in the market, but also can
work with our DMX decoder to control the general LED lights without DMX512.
LT-800 DMX512 controller is easy to operate with a LCD screen. Available with wireless control and
keying control on the changing modes, speed and brightness, automatic timing and more than 500
modes for your choices, Supporting pause in changing modes and very easy to keep the specific color.
1. Product Parameter:
LT-800 DMX Controller( version v5.0 )
Working Voltage:
Dc12 (with an adapter
to convert AC100-240V
to DC12V)
<2W
Power Consumption:
Output Signal: DMX512
Output Loop: 1 Port
Transmission Speed: 250Kbps
Lighting Mode: 580 Modes
(v5.0)
Control Quantity: 512 DMX Channels
(170 pixels)
℃ ℃
Working Temperature: -30 ~65
Product Dimensions: L163×W108×H40mm
Package Dimensions: L260×W132×H46mm
Weight(G.W.): 760g
1

2. Function Features:

1) With LCD screen, easy to operate in showing all functions.
2 Built-in perpetual calendar, real-time display system clock, can be set up to play different programs )
in any time, Monday to Sunday or holiday.
static
3 580 lighting modes. Such as, 7 ) color, skipping synchronism, smooth synchronism, color flow,
color chasing, color smooth and flow and Meteor shower trailing, etc.
4 Multilevel changing speed, brightness, RGB grey scale adjustment and effect of movement direction )
for your choices.
5 Feel free to define many changing modes into a step, 8 independent cycle steps maximum. )
6 Output with international standard signal DMX512/1990, can control 512 DMX channels (170 full )
color RGB pixels)
7 Support different output ports like standard XLR-3, RJ45 and Green terminals. Etc. )
8 With the functions of anti-interference and automatic breakdown recovery. )

3. Construction Drawing:

LCD Screen
LT- 800
2013-01-01
+ Speed+
Mode
Speed-
Mode-
Front
LED CONTROLLER
MODEL: LT-800
com
Power Power Manufacturers
Switch Input Spare USB
Interface
Controller(Receiver)
163mm
153mm
V5.0
:
12 00
Short press: Adjust effect of
movement direction;
Long press: enter menu setting
interface
Short press: Switch mode type;
Long press: Enter the DMX
addressing, meanwhile start
learning ID process of RF
control remote.
FUN
Bright+
Bright-
Green RJ45 XLR-3
Terminal Interface
Provide three kinds of interface,
connect one of them.
2
