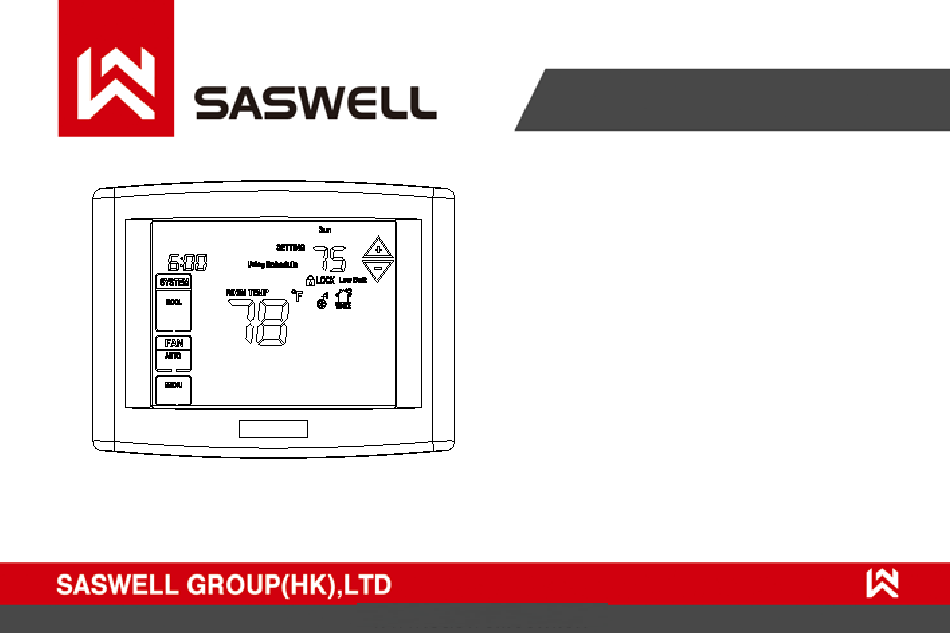

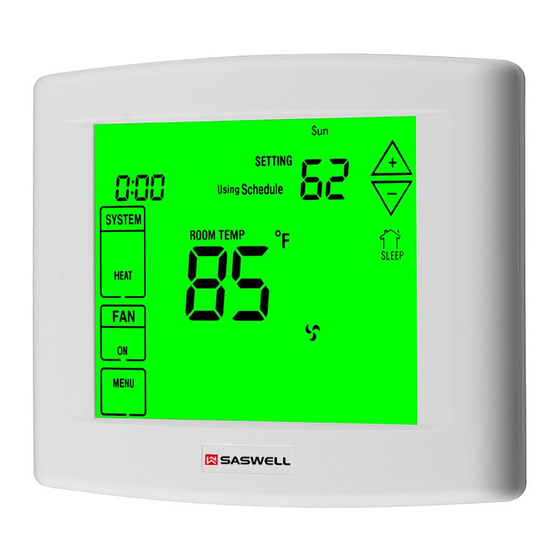

SAS6000UTK-7
OPERATING
INSTRUCTION
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAS6000UTK-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Saswell SAS6000UTK-7

Summary of Contents for Saswell SAS6000UTK-7

  • Page 1 SAS6000UTK-7 OPERATING INSTRUCTION...

  • Page 2: Specification

    This manual apply for SAS6000UTK-7,used with Single Stage,Multi-Stage,Heat pump SPECIFICATION  Power Supply ……………………… Dual Power 24VAC (18-30VAC,50/60Hz) or Battery Powered  Terminal Load…………………………1.0 A per terminal, 2.0A maximum total load  Set point Temperature Range………….41℉ to 95℉(5℃ to 35℃) ...

  • Page 3: Important Safety Information

     The screen displays the set temperature, the room temperature and current time simultaneously  Fan switch with on and auto  Auto change over  Permanent user setting retention during power loss, no batteries are required,  Optional 7 day programming and non-programmable ...

  • Page 4: Keyboard, Display And Switch Descrioption

    KEYBOARD, DISPLAY AND SWITCH DESCRIOPTION Touch Screen Thermostat Figure 1...

  • Page 5: Home Screen Description

    Home Screen Description Date of Week Set Temperature Temperature Up/Down Time of the day used for modifying set point System Switch Low Battery Indication Fan Swtich Menu key for entering different modes Keypad lockout Room Indication Temperature Figure 2...
  • Page 6 (12) (14) (13) (15) (16) (11) (24) (23) (22) (17) (21) (18) (19) (20) (10) Figure 3...
  • Page 7 Press day(s) to set program schedule “Hold Until” indicates the time when a temporary hold period will end Press to select system type Press to select fan operation Press “MENU” to display first function menu of button (6) (7) (8) (9) (10) Press “DONE”...
  • Page 8 schedule (12) Press UP and DOWN for modifying set point (13) “Days” displays during steps in setting vacation duration days or count back days of vacation duration days “Am” indicate current time clock is in the morning. “Pm” indicates current time clock is in the afternoon (14) Press UP and DOWN for setting current time clock or setting time in programming or changing selections in configuration menu or setting the time when a temporary hold period will end...

  • Page 9: Installation

    (20) “TECHNICIAN SET UP: USE UP AND DOWN FOR SURRENT SELECTION AND NEXT STEP PREVIOUS STEP KEY TO THE NEXT PREVIOUS STEP” displays to help technician how to operate in configuration mode (21) Indicate current status of the thermostat (22) “Chg Filter”...

  • Page 10: Battery Replacement

    Battery replacement Install fresh batteries immediately when the Low Batt warning begins flashing. The warning flashes about 60 days before batteries are depleted. Even if the warning does not appear, you should replace batteries once a year, or before leaving home for more than 1 month To replace batteries, set system to OFF, remove thermostat from wall and install the batteries in the rear along the 2 AA Batteries Front Panel...

  • Page 11: Wiring Diagram

    WIRING DIAGRAM Figure 5 Wiring guide...
  • Page 12 1H/1C System (1 transformer) 1H/1C System (2 transformer) Power 【1】 Power (cooling transformer) 【1,2】 (RH+RC joined by jumper) Power (heating transformer) 【1,2】 Heat Relay Heat relay Compressor contactor Compressor contactor Fan relay Fan relay 24VAC common/remote sensor 【3,4】 24VAC common/remote sensor 【3,4】 C/S1 C/S1 Remote sensor...
  • Page 13 1H/1C Heat Pump (no auxiliary heat) 2H/2C Heat Pump (no auxiliary heat) Power (cooling transformer) 【1,2】 Power 【1】 （RH+RCjoined by jumper）【1,2】 (RH+RC joined by jumper) Cool relay 1 Compressor relay Changeover valve energized in heating Changeover valve energized in heating Changeover valve energized in cooling Changeover valve energized in cooling Compressor relay 2...

  • Page 14: Power Supply

    2H/1C Heat Pump (with auxiliary heat) 3H/2C Heat Pump (with auxiliary heat Equipment monitor 【5】 Equipment monitor 【5】 Power 【1】 Power 【1】 (RH+RC joined by jumper) (RH+RC joined by jumper) Compressor relay 1 Compressor relay Emergency heat replay 【6】 Emergency heat replay 【6】 Auxiliary heat repay (Heat 2) 【6】...

  • Page 15: Configuration Menu

    CONFIGURATION MENU The configuration menu allows you to set certain thermostat operating characteristics to your system or personal requirements. To enter the configuration menu, switch off the thermostat Press system until OFF blink Press DONE to save changes...
  • Page 16 1) Press MENU for displaying main menu button, Press OTHER for display other menu button Press OTHER Press MENU for displaying other for displaying main menu button menu button 2) Press CONFIG for entering configuration menu, change setting according to following figure. For resume factory default setting, press RESET and then confirm by pressing DONE.
  • Page 17 Press UP and DOWN for change setting Display menu item Press CANCEL Press DOWN to exit to main to confirm and home screen exit Press NEXT Press PREVIOUS Press RESET STEP changing to STEP changing to for resume to next menu item previous menu factory default item...
  • Page 18 Press Up and Display factory DOWN Press Comments default To select NEXT SYSTEM Select control system 1H,2H,HP1,HP2 STEP (2H) HA: Gas heating, Furnance NEXT BLowER controls blower HA,HE STEP (HA) HE: Electric heating. Thermostat controls blower NEXT HA: Fossil fuel backup heat AxMOdE HA,HE STEP...
  • Page 19 NEXT CCYCLE First cooling cycle rate FA, SL STEP (FA) NEXT EMER Emergency heating rate FA, SL STEP (FA) NEXT Select compressor lockout DELAy STEP delay NEXT LIGHT Select backlight display 1,2, 3 STEP NEXT Select Temperature CALIbR +4 TO -4 STEP Calibration NEXT...
  • Page 20 NEXT Select filter replacement run FILTER 00 – 12 STEP (00) time NEXT UVLAMP Select UV lamp replacement UO or UF STEP (UF) run time NEXT CLOCK Selection of time scale 24,12 STEP (24) NEXT SENSOR Remote sensor option 0,1,2,3 STEP NEXT HPLOCK...
  • Page 21 1.System type option 1H: 1 heat/1 cool conventional 2H: 2 heat/2 cool conventional HP1: 1 compressor heat pump HP2: 2 compressors or 2 speed compressor heat pump 2.Fan control option HA: Gas heating. Furnace controls blower HE: Electric heating. Thermostat controls blower 3.
  • Page 22 Select OF to deactivate the intelligent recovery function. Intelligent recovery function doesn’t activate when program setting to non-programmable. 7.First heating cycle rate FA: Fast rate, heating will activate 0.6℉ below set point SL: Slow rate, heating will activate 1.2℉ below set point 8.First cooling cycle rate FA: Fast rate, cooling will activate 1.2℉above set point SL: Slow rate, cooling will activate 1.7℉...
  • Page 23 12. Select temperature recalibration This feature allows you to adjust the displayed room temperature up to 4º higher or lower. Your thermostat can be accurately calibrated to match your previous thermostat. The current or adjusted room temperature will be displayed on the display. 13.
  • Page 24 1.Press MENU button for displaying main button 2.Press OTHER button for displaying other button 3.Press INFO to inquiry for the count back change filter time 4.When “Chg Filter” is displayed, RESET button will be shown when inquiry for count back time. Press RESET and then press DOWN to reset the timer.
  • Page 25 in Home screen. Press INFO for inquiry for the outside temperature. 2: Outdoor control sensor (See Menu item 21 Heat pump temperature lockout) 3: Indoor sensor. If 3 is selected and the thermostat is installed with an indoor remote sensor, display will show the read temperature from the indoor sensor.
  • Page 26 item 20) is set 2. 0: No auxiliary heating temperature lockout 40,45,50,55,60℉: heat pump auxiliary heating temperature lockout. ( See menu item 22 explains how it work) 23. Select audible beeper On/off Select YES, thermostat will beep when any button touched Select NO, thermostat will turn off the voice 24.

  • Page 27: Operating Your Thermostat

    OPERATING YOUR THERMOSTAT Press SYSTEM option to your requirement Press FAN option to your requirement Press CANCEL to Press DONE to save disregard current and exit setting and exit Choose the Fan Setting (Auto or On) Fan Auto is the most commonly selected setting and runs the fan only when the heating or cooling system is on. Fan On selection runs the fan continuously for increased air circulation or to allow additional air cleaning Choose the System Setting (Cool, Off, Heat, Emer, Auto) Press the SYSTEM button to select:...
  • Page 28 Auto: Auto Changeover is used in areas where both heating and cooling may be required on the same day. When SYSTEM button set to AUTO, the thermostat automatically select heating or cooling depending on the indoor temperature. Heat and cool settings must be over the dead ban value which is set at Auto changeover dead ban (configuration menu item 5).
  • Page 29 Permanent Hold Override Press HOLD to permanently adjust the temperature. This will turn off the program schedule. Press HOLD Adjust temperature Whatever temperature you set will be maintained 24 hours a day, until you manually change it, or press RUN SCHED to cancel “Hold’...
  • Page 30 Vacation Hold Override This feature can suspend the program schedule for extended period of days. Press HOLD for 5 seconds. Press HOLD Press RUN SCHED for 5 seconds to resume program schedule Press to select number Adjust temperature of days Press △...
  • Page 31 Temporary Hold Override Press to set time Adjust temperature Inquiry for outside temperature Press △or▽ to immediately adjust the temperature. This will temporarily override the temperature setting for the current time period. The new temperature will be maintained until the time you set. When the timer expires, the program schedule will resume and the temperature to the level you’ve programmed for the current time period.
  • Page 32 Press DONE to resume Press DONE to resume Shows when indoor temperatur indoor temperatur there outside sensor display display is either not installed Inquiry for filter count back time or damaged This operation is only available when filter replacement time is set. Configuration menu item 17 explains the way for inquiry for the count back time.
  • Page 33 Screen cleaning Press CLEAN DISPLAY to lock the screen for cleaning. The screen will remain locked for 30 seconds so you can clean the screen without changing any setting. Press CLEAN DISPLAY After 30 seconds, press DONE to resume normal Screen lock timer operation, or press CLEAN DISPLAY again if you (count back 30 seconds)

  • Page 34: Special Feature

    Special feature Intelligent Recovery: See configuration menu item 6- Intelligent Recovery operation. Compressor protection: See configuration menu item 10- Select compressor lockout delay Heat Pump Temperature Lockout: See configuration menu item 21-Heat pump compressor lockout temperature PROGRAMMING Set Current Time clock and Day of the week Set current day Press MENU for displaying main menu button.

  • Page 35: Adjust Program Schedules

    Adjust program schedules Press MENU button to display main menu button. Press SET SCHED to enter set program mode. Press SET SCHED to set program Select day(s) to set program schedule Select days to set program schedule. It can be a single day the week or a group of days of the week Select HEAT or COOL for program...
  • Page 36 Select 4 different time period for setting program schedule.WAKE, LEAVE, RETURN, SLEEP. When viewing the program, you can view the preset program schedule by selecting the day and the time period. Select day(s) to set program schedule Press time period Select HEAT or for setting program COOL for program...
  • Page 37 Adjust time and set temperature for selected time period by pressing △or▽ Press DONE to save and exit (or press CANCEL to exit without saving changes) Press RESET and confirm by DONE to resume to factory default program schedule setting. Select day(s) to set program schedule Adjust set temperature for...

  • Page 38: Factory Default Pre-Program

    Factory Default Pre-program The thermostat is programmed with the energy saving settings shown in the table below for all days of the week. If this program suits your needs, simply set the thermostat clock and press the RUN button. The table below shows the factory set heating and cooling schedule for all days of the week Wake Up Leave For Work...

  • Page 39: Worksheet For Re-Programming 7 Day Program

    Worksheet for Re-programming 7 day program Heating Wake Up Leave For Work Return Home Go To Bed Program (Morning) (Day) (Evening) (Night) 6:00 70℉ 8:00 62℉ 17:00 70℉ 22:00 62℉ 6:00 70℉ 8:00 62℉ 17:00 70℉ 22:00 62℉ 6:00 70℉ 8:00 62℉...

  • Page 40: Customer Assistance

    CUSTOMER ASSISTANCE After reading this guide, if you have any question about the operation of your thermostat,please contact your installer or Energy Utility company or service provider.

  • Page 41: Fcc Warning

    FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
