ACTIVAL
General
™
ACTIVAL

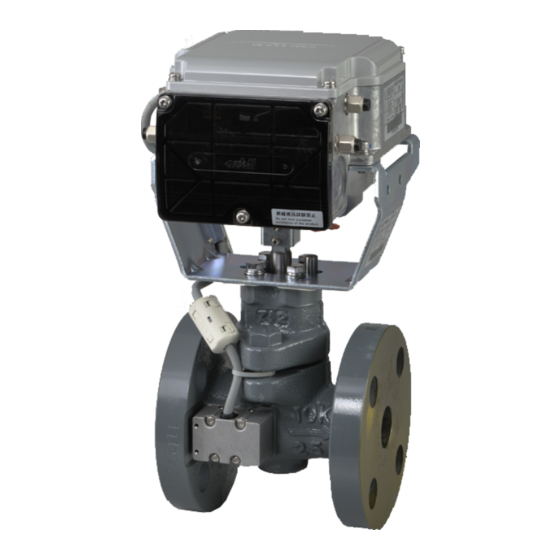

Flow Measurement and Control Valve, Model
FVY5130J/FVY5140J/FVY5150J, is a series of motorized
two-way valves with flanged-end connection. DN15 to DN80
rotary valve and actuator are integrated in a single unit.
In combination with the functions of a control valve, Model
FVY5130J/FVY5140J/FVY5150J measures and controls flow.
Model FVY5130J/FVY5140J/FVY5150J thus enables to control
temperature for air conditioning by controlling chilled/hot water
volume and to measure chilled/hot water flow.
For such a high functionality, compact size and simple
installation of Model FVY5130J/FVY5140J/FVY5150J are
incomparable.
3 kinds of control signals are available to operate the Model
FVY5130J/FVY5140J/FVY5150J.
- 4-20 mA DC input:
Provides proportional control in combination with a DDC
™
controller. (e.g., Infilex
- 2-10 V DC input:
Provides proportional control in combination with a DDC controller. (e.g., Infilex
- 0-10 V DC input:
Provides proportional control in combination with a DDC controller.
Flow data stored in the Model FVY5130J/FVY5140J/FVY5150J is retrieved via RS-485 communication (Modbus protocol). The
retrieved flow data is effective for energy-saving facility operation.
Notes
∗ JIS: Japanese Industrial Standards
Features
•
Compact and lightweight:
Rotary valve actualizes small body and light weight.
•
Valve and actuator integrated in a single unit.
•
Model FVY5130J/FVY5140J/FVY5150J holds flow data
effective for maintenance and energy-saving facility
operation.
The
data
communication (Modbus protocol).
•
Valve for chilled/hot water control applicable to large Cv
value, high rangeability, and low leakage.
•
Durable actuator with low power consumption.
IMPORTANT:
Do not use the data measured by Model FVY5130J/FVY5140J/FVY5150J for charging or dealing purposes.
™
Flow Measurement and Control Valve
Standalone Model
(JIS 10K / FC200)
GC Model WY5111, Model R35/R36)
∗ DDC: Direct Digital Control
is
retrieved
via
RS-485
™
AC Model WY5117)
•
Flow control/position control operation selectable:
For flow control, flow characteristic is selectable (equal
percentage or linear). For position control, flow
characteristic is equal percentage.
•
In
combination
QY5010S1000) and the insertion-type pipe temperature
sensor (Model TY7830) or the temperature sensor for
pipe surface (Model TY7820), pressure, temperature,
and flow can be displayed on the Display Panel.
•
CE Marking certified product:
Models FVY5130J, FVY5140J, and FVY5150J conform
to all the applicable standards of CE Marking.
1
AB-7042
Specifications/Instructions
with
Display
Panel
(Model
Advertisement
Table of Contents
Related Manuals for Azbil ACTIVAL FVY5130J
Summary of Contents for Azbil ACTIVAL FVY5130J
- Page 1 AB-7042 Specifications/Instructions ™ ACTIVAL Flow Measurement and Control Valve Standalone Model (JIS 10K / FC200) General ™ ACTIVAL Flow Measurement and Control Valve, Model FVY5130J/FVY5140J/FVY5150J, is a series of motorized two-way valves with flanged-end connection. DN15 to DN80 rotary valve and actuator are integrated in a single unit. In combination with the functions of a control valve, Model FVY5130J/FVY5140J/FVY5150J measures and controls flow.
-
Page 2: Safety Instructions
This product is targeted for general air conditioning. Do not use this product in a situation where human life may be affected. If this product is used in a clean room or a place where reliability or control accuracy is particularly required, please contact Azbil Corporation’s sales representative. - Page 3 AB-7042 CAUTION (2/2) • Use full gaskets for the flat face flanges. Failure to do so might damage the valve or cause fluid leakage. • When installing the product with flange gasket, do not allow the flange gasket to go inside the pipe. Doing so might cause incorrect measurement and control of flow.
-
Page 4: Model Numbers
AB-7042 Model Numbers Model FVY5130J/FVY5140J/FVY5150J is the model for the valve and actuator integrated into a single unit. The model number label is attached to the yoke. Base Actuator Valve Valve Actuator ⎯ model control rating/ size/Cv Description type number signal material value... -
Page 5: Valve Specifications
AB-7042 Specifications For weight, refer to the table shown in the section Dimensions. Valve and actuator (as a single unit) specifications Item Specification Rated operating condition Transport/storage conditions (packaged) Environmental conditions -20 °C to 50 °C -20 °C to 70 °C Ambient temperature (Do not allow process fluid to freeze.) Ambient humidity... -
Page 6: Actuator Specifications
AB-7042 Actuator specifications Item Specification 24 V AC ± 15 %, 50 Hz/60 Hz Power supply Power consumption 8 VA 63 ± 5 sec (50 Hz) / 53 ± 5 sec (60 Hz) Timing 4-20 mA DC input (Input impedance: 250 Ω) Control signal Model FVY5130J Model FVY5140J... -
Page 7: Measuring Range And Accuracy
AB-7042 Measuring range and accuracy IMPORTANT: Flow measuring accuracy shown in the below is for the valve sensor measuring 7 to 17 °C and 45 to 65 °C ranges, 0.1 to 0.8 MPa pipe pressure, and 0.03 to 0.3 MPa differential pressure. Without these ranges, the flow rate measuring accuracy may lower. - Page 8 AB-7042 (2/2) Item Specification Pressure Measuring range 0 MPa to 1.0 MPa* measuring ± 0.5 %FS (factory preset) * Accuracy -10 °C to 100 °C Temperature Measuring range measuring ± 1.0 °C (factory preset) in the 0 °C to 80 °C measuring range* Accuracy (within 0 °C to 80 °C measuring range, at -25 °C to 40 °C temperature difference between measuring temperature and ambient temperature)
-
Page 9: Wire Specifications
AB-7042 Wire Specifications Item Specification Length* Connection ⎯ Power JIS CVV, JIS IV M3.5 screw connection 0.75 mm , 1.25 mm , 2.0 mm ® Control signal, DI (Cooling/heating switch JIS CVV, JIS IV, KPEV , JCS* CVV-S 50 m M3.5 screw connection signal), pulse output 0.75 mm... - Page 10 AB-7042 Dimensions Flow direction indication N × φh Valve sensor cable Valve sensor (in valve sensor cover) Valve size Weight φC (mm) φD (mm) φh (mm) Model number H (mm) (mm) L (mm) (mm) t (mm) (DN) (kg) FVY51X0J001X FVY51X0J002X FVY51X0J004X 82.5 10.0...
-
Page 11: Parts Identification
AB-7042 Parts Identification Valve details Top cover Top cover Terminal cover Actuator Knockout hole Terminal cover Pointer Yoke Joint Bonnet O-ring Gland packing Stem Spring Valve body Plug Seat ring Heat insulation Figure 2. Parts identification: Valve details Actuator details (Connectors, ports, terminals, and LED) Reset switch Connector for Pt100 input Row T1: Supply water temperature... -
Page 12: Installation Location
AB-7042 Installation Precautions for installation Installation location CAUTION CAUTION • Installation and wiring must be performed by • Do not use the product in an atmosphere qualified personnel in accordance with all containing oxidizing gas, explosive gas, etc. ... -
Page 13: Mounting Position
AB-7042 Mounting position Model FVY5130J/FVY5140J/FVY5150J can be mounted in any position ranging from upright to sideways (90° tilted). Note that the Model FVY5130J/FVY5140J/FVY5150J must be installed with the valve sensor vertically positioned above the valve body when being tilted. It is also installable on the vertical upflow pipe. (See Fig. 5.) However, the Model FVY5130J/FVY5140J/ FVY5150J must be installed always in upright position outdoors. - Page 14 AB-7042 Factory preset position The actuator shaft is positioned at 100 % (in fully open position) for shipment. The shaft is thus completely turned clockwise, and the pointer points at ‘100’. (See Fig. 6.) Pointer Figure 6. Pointer position for shipment Manually opening/closing valve IMPORTANT: •...
-
Page 15: Wiring Procedure
AB-7042 Wiring CAUTION • Installation and wiring must be performed by qualified personnel in accordance with all applicable safety standards. • Before wiring and maintenance, be sure to turn off the power to the product. Failure to do so might cause electric shock. IMPORTANT: •... - Page 16 AB-7042 5) Connect the wires of each line. After connecting the wires, lightly pull them from the wiring ports so that minimum wire slack remains inside the actuator. Too long wire slack inside the actuator may block the terminal cover to close or may hold down the reset switch and interrupt the operation.
- Page 17 AB-7042 Wires connection of Display Panel Terminal Wire color* Description 12 V DC R B W R: RED Black B: BLK White AP-bus (+) W: WHT Green AP-bus (-) G: GRN Note: ∗ Wire color of the Display Panel shown in the above table is the wire colors of the Figure 16.
-
Page 18: Precautions For Connection
AB-7042 Precautions for connection RS-485 communication (See Figs. 26 and 27.): • Pass the cable of RS-485 communication through a wiring port (knockout hole) on the other side of the wiring port for power supply cable. Attach the optional cable gland with three ports (Model DY7000A1000) to the wiring port to share the wiring port with signal lines. -
Page 19: Connection Examples
AB-7042 Connection examples Controller Isolator* (e.g. Model R35/R36TC0) Isolator* Controller Model FVY5130J Model FVY5130J (e.g. Model R35/R36TC0) (4-20 mA input) (4-20 mA input) Isolator* Isolator* Controller Power Power Model FVY5130J Model FVY5130J Power (e.g. Model R35/R36TC0) (4-20 mA input) (4-20 mA input) Notes: Notes: ∗1 Provide an isolator for the controller not internally isolated. - Page 20 AB-7042 Slave (Model R series) Master Isolator* Controller Model FVY5150J (e.g. Third party (0-10 V input) controller) Slave (Model FVY51X0J: this product) Figure 26. Connection example: 3-wire RS-485 communication Isolator* Power Model FVY5150J (0-10 V input) Notes: ∗1 Provide an isolator for the controller not internally isolated. ∗2 Terminals 2, 6, and 8 of the product are internally connected.
- Page 21 AB-7042 Cable Gland with Three Ports Attaching the cover to the base Cable gland with three ports (Model DY7000A1000) is Attach the cover to the base and fix them by locking the 3 recommended to attach to a wiring port (knock out hole) of latches.
- Page 22 AB-7042 2) Connect the seal connectors (optional) to the cover of 6) Lead the wires (sheath stripped part of cables) through the cable gland. the wiring port (where the base of the cable gland is attached) of the product. Then, attach the cover of the IMPORTANT: cable gland to the base.
-
Page 23: Inspection And Troubleshooting
If your problem is not solved by the corresponding action, please contact Azbil Corporation near you. • Be sure to completely close the terminal cover and the top cover. - Page 24 Figure 35. Check of the valve position detecting accuracy ACTIVAL is a trademark of Azbil Corporation in Japan or in other countries. KPEV is a registered trademark of Furukawa Electric Co., Ltd. Specifications are subject to change without notice.
