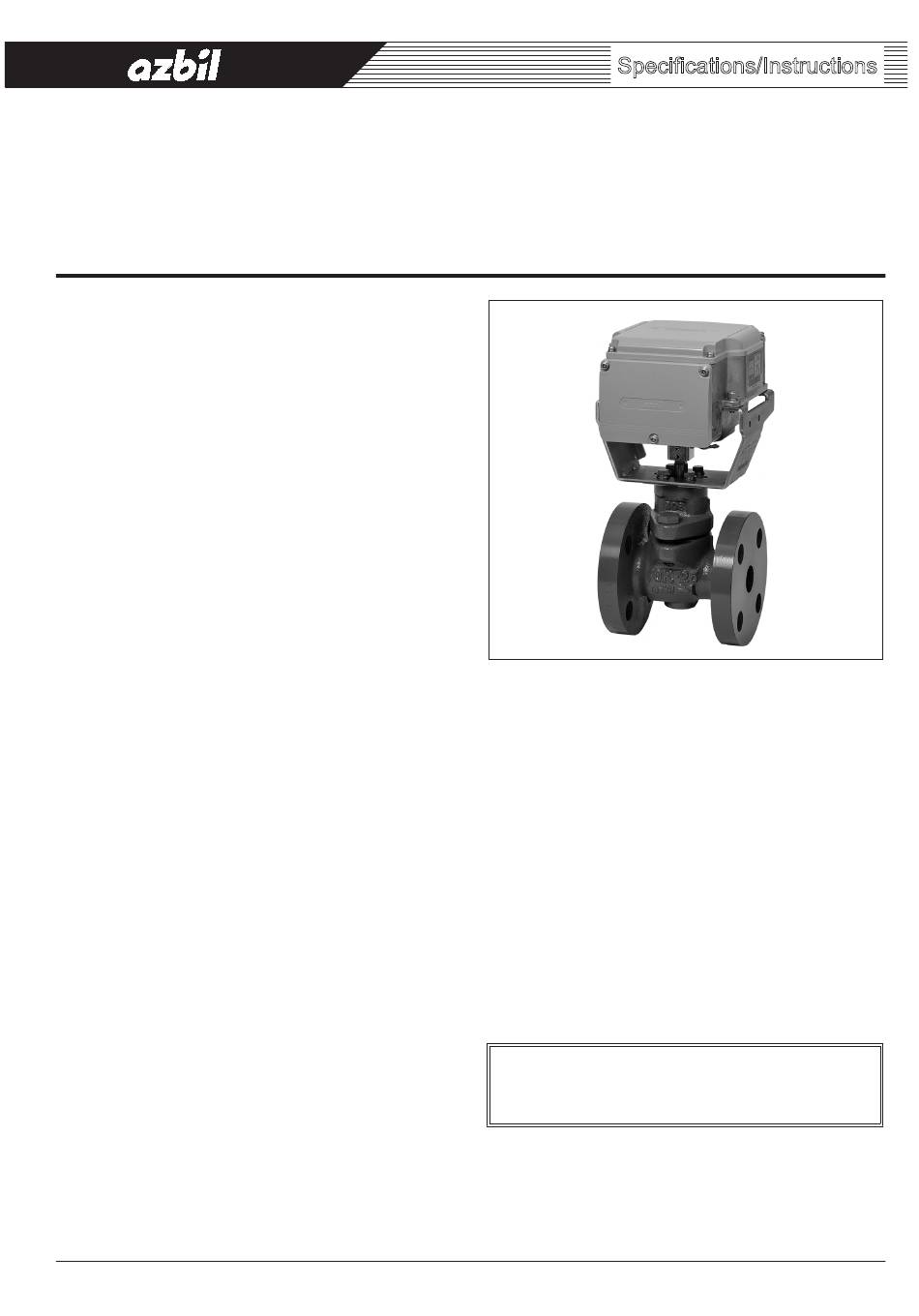

Azbil ACTIVAL VY51 Series Specifications & Instructions

Motorized Two-way Valve with
„ Overview

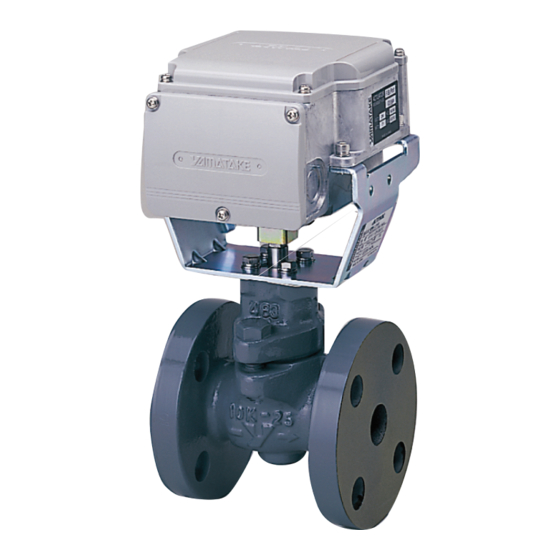

ACTIVAL Model VY51_ _ is a series of motorized two-
way rotary valves, DN15 (1/2") to DN80 (3") , with
flanged-end connection. The valve and actuator are
integrated in a single unit.
The valve body rating corresponds to JIS 10K.
The actuator has a reversible synchronous motor, which
operates at a low voltage of 24 V AC.
There are following four control signals available.
• Nominal 135 Ω feedback potentiometer
Provides proportional control in combination with a
DDC controller. (e.g., Infilex GC Model WY5111)
• Nominal resistance 135 Ω input
Provides proportional control in combination with
a proportionally controlled electric controller. (e.g.,
Neostat Model TY900_Z, insertion type Thermostat
Model TY9800)
• 4–20 mA DC input
Provides proportional control in combination with
a DDC controller. (e.g., Infilex GC Model WY5111,
Model R35/R36)
• 2–10 V DC input
Provides proportional control in combination with a
DDC controller. (e.g., Infilex AC Model WY5117)
„ Features
• Compact and lightweight
• Valve and actuator integrated in a single unit
• Conforms to IP54 (dust-proof, splash-proof)
Can be installed in AHU.
Note: Waterproof connectors are required to assure IP54.
• A variety of control input signals available
• Durable actuator with low power consumption
• 2–10 V DC output with feedback signal
Only for the 4–20 mA DC input type (Model VY513_)
and the 2–10 V DC input type (Model VY514_) .
• Equal percentage flow characteristic
ACTIVAL™
Flanged-end Connection
(JIS 10K / FC200, SCS13A)
Specifications/Instructions
• Valve for water/steam control applicable to
high differential pressure, large Cv value, high
rangeability, and low leakage.
IMPORTANT
• If you want to use this product combined with a third
party's controller, please contact Azbil corporation.
Notes:
- AHU: Air Handling Unit
- DDC: Direct Digital Control
- JIS: Japanese Industrial Standards
