Motorized Two-Way Valve with Flanged-End Connection
<4-20 mA DC Input with 4-20 mA DC Feedback Output>
General
TM
ACTIVAL

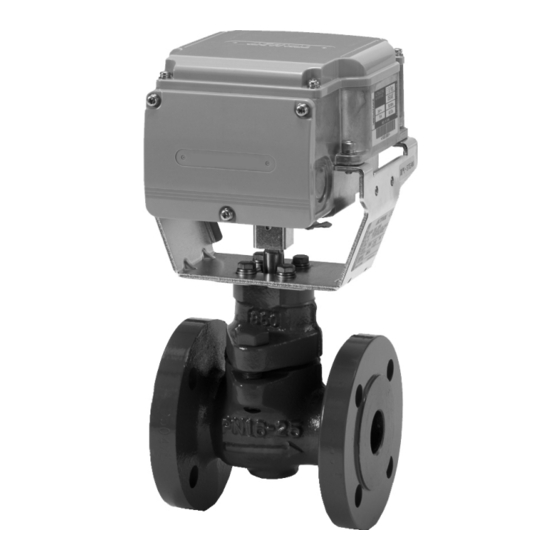

Model VY519XJ is a series of motorized two-
way valves with flanged-end connection. Rotary valve and
actuator are integrated in a single unit.
Valve size ranges from DN15 (1/2") to DN80 (3"), and valve
body rating corresponds to ISO PN16.
Actuator has a reversible synchronous motor, which operates
at a low voltage of 24 V AC.
4-20 mA DC input control signal provides proportional control
in combination with a PLC (e.g., Model R35/R36).
* PLC: Programmable Logic Controller
Features
Compact and lightweight:
•
Rotary motor actualizes small body and light weight.
•
Valve and actuator integrated in a single unit:
Pre-assembled body requires no adjustment.
Valve for chilled/hot water control and for steam control
•
applicable to high differential pressure, large Cv value,
high rangeability, and low leakage.
Durable actuator with low power consumption.
•
Equal percentage flow characteristics.
•
•
4-20 mA DC output available for position feedback.
•
Open/close changeover for input signal failure:
Actuator fully opens/closes valve in case that the control
signal is not input to the actuator. (Default: Fully open)
•
Direction changeover of control action:
Open/close action by 4-20 mA DC input signal is
reversely controllable.
Normal action 4 mA: 0 % to 20 mA: 100 %
Reverse action 20 mA: 0 % to 4 mA: 100 %.
(Default: Normal action)
* Although our company name changed from Yamatake Corporation to Azbil Corporation on April 1, 2012, our former logo remains on this product.
TM
ACTIVAL
(PN16 / GG-20)
•
Adjustable dead band*:
Dead band width can be narrowed to more precisely
operate valve actuator.
* Actuator is not operated by input signal changed less than a
certain amount. This amount of change is called dead band.
•
CE Marking certified:
ACTIVAL Model VY51 conforms to all the applicable
standards of CE Marking.
1
AB-7054
Specifications/Instructions
Advertisement
Table of Contents
Related Manuals for Azbil ACTIVAL VY519XJ Series
Summary of Contents for Azbil ACTIVAL VY519XJ Series
- Page 1 Normal action 4 mA: 0 % to 20 mA: 100 % Reverse action 20 mA: 0 % to 4 mA: 100 %. (Default: Normal action) * Although our company name changed from Yamatake Corporation to Azbil Corporation on April 1, 2012, our former logo remains on this product.
-
Page 2: Safety Instructions
If this product is used in a clean room or a place where reliability or control accuracy is particularly required, please contact Azbil Corporations’ sales representative. Azbil Corporation will not bear any responsibility for the results produced by the operators. -
Page 3: Model Numbers
• Use shielded cable for the ACTIVAL with small dead band. Noise may affect the signal transmission causing operation error, otherwise. • To control ACTIVAL with a third-party controller, please consult with Azbil Corporations’ sales personnel. Model Numbers Model VY519XJ00XX is the model for the valve and actuator integrated into a single unit. -
Page 4: Valve Specifications
AB-7054 Specifications For weight, refer to the table shown in the section Dimensions. Valve specifications Item Specification Model Two-way valve with flanged-end connection (raised face flange), proportional control Body pressure rating PN16 (Max. working pressure: 1.6 MPa) End connection PN16 flanged-end (equivalent to ISO 7005-2: 1988) Size, Cv, Close-off ratings Model number Nominal size... - Page 5 AB-7054 Valve and actuator (as a single unit) specifications Item Specification Environmental conditions Transport/storage Rated operating condition Limit operating condition conditions (packaged* Ambient temperature* -20 °C to 50 °C -20 °C to 60 °C -20 °C to 70 °C (Fluid temperature 0 °C to 150 °C) -20 °C to 40 °C (Fluid temperature 150 °C to 175 °C) Ambient humidity...
-
Page 6: Parts Identification
AB-7054 Dimensions Min. 300 Min. 500 (See Note.) N × φh ∗ Note: Leave a clearance of 100 mm if you do not open the top cover (to set the selector switches after the ACTIVAL is installed). Flow direction Valve size Weight Model number H (mm) - Page 7 AB-7054 Setting On the PCB (printed circuit board) of the actuator, the selector switches are provided. CAUTION Disconnect power from the product (including the optional devices) before performing any wiring, maintenance, • or setting the selector switches to prevent equipment damage. •...
-
Page 8: Installation
AB-7054 Installation Precautions for installation CAUTION • Installation and wiring must be performed by qualified personnel in accordance with all applicable safety standards. Install the product in the position as specified in this manual. Excessively tight connection of piping and •... -
Page 9: Heat Insulation
AB-7054 Piping Check that the model number of the product is what you ordered. The model number is shown on the label attached to • the yoke. • Install a bypass pipe and gate valves on the inflow, outflow, and bypass sides. Also, install a strainer with 40 or more meshes (with 80 or more meshes recommended for steam control) on the inflow side. - Page 10 AB-7054 Auxiliary switch / Auxiliary potentiometer (optional) IMPORTANT: • The auxiliary switch/potentiometer is installed on site. Refer to the instructions supplied with the auxiliary switch/potentiometer for installation. • Do not open the top cover except when adjusting the auxiliary switch/potentiometer. Close the top cover instantly after adjusting the auxiliary switch/potentiometer.
- Page 11 AB-7054 Wiring CAUTION Installation and wiring must be performed by qualified personnel in accordance with all applicable safety • standards. • Disconnect power from the product (including the optional devices) before performing any wiring, maintenance, or setting the selector switches to prevent equipment damage. •...
- Page 12 AB-7054 To keep IP54 protection (dust-proof and splash-proof), Use a water-proof connector for the ACTIVAL in a high-humidity environment or outdoor location. • Be sure to completely close the terminal cover and the top cover. • Waterproof the wiring port. - For cable connection, use a water-proof connector.
- Page 13 AB-7054 Connection Examples (Connection to Azbil Corporations’ R series controller) Connection to Model R35TC0/R36TC0 Connection to Model R35TC0/R36TC0 (Parallel operation) Isolation Isolation transformer transformer Power Power supply supply + 13 + 13 Model R35TC0/R36TC0 Model R35TC0/R36TC0 Isolator Isolator Position indicator...
- Page 14 AB-7054 Internal Connection of Auxiliary Switch / Auxiliary Potentiometer Auxiliary switch Part No. 83165274-001 N.C. Common N.O. N.C. Common N.O. Switches A and B actuating position: Adjustable between 0 % (fully closed) and 100 % (fully open) Figure 13. Internal connection of Part No. 83165274-001 Auxiliary potentiometer Part No.
-
Page 15: Inspection And Maintenance
Visually inspect the fluid leakage of the valve and the actuator operations every six months. If any of the problems described in Table 2 are found, take corresponding actions shown in the table. If your problem is not solved by the corresponding action, please contact Azbil Corporation near you. Table 1. Inspection items and details... -
Page 16: Trademark Information
AB-7054 Trademark information: ACTIVAL is a trademark of Azbil Corporation in Japan or in other countries. Specifications are subject to change without notice. Building Systems Company http://www.azbil.com/ Rev.2.0 Jan. 2015 AB-7054...
