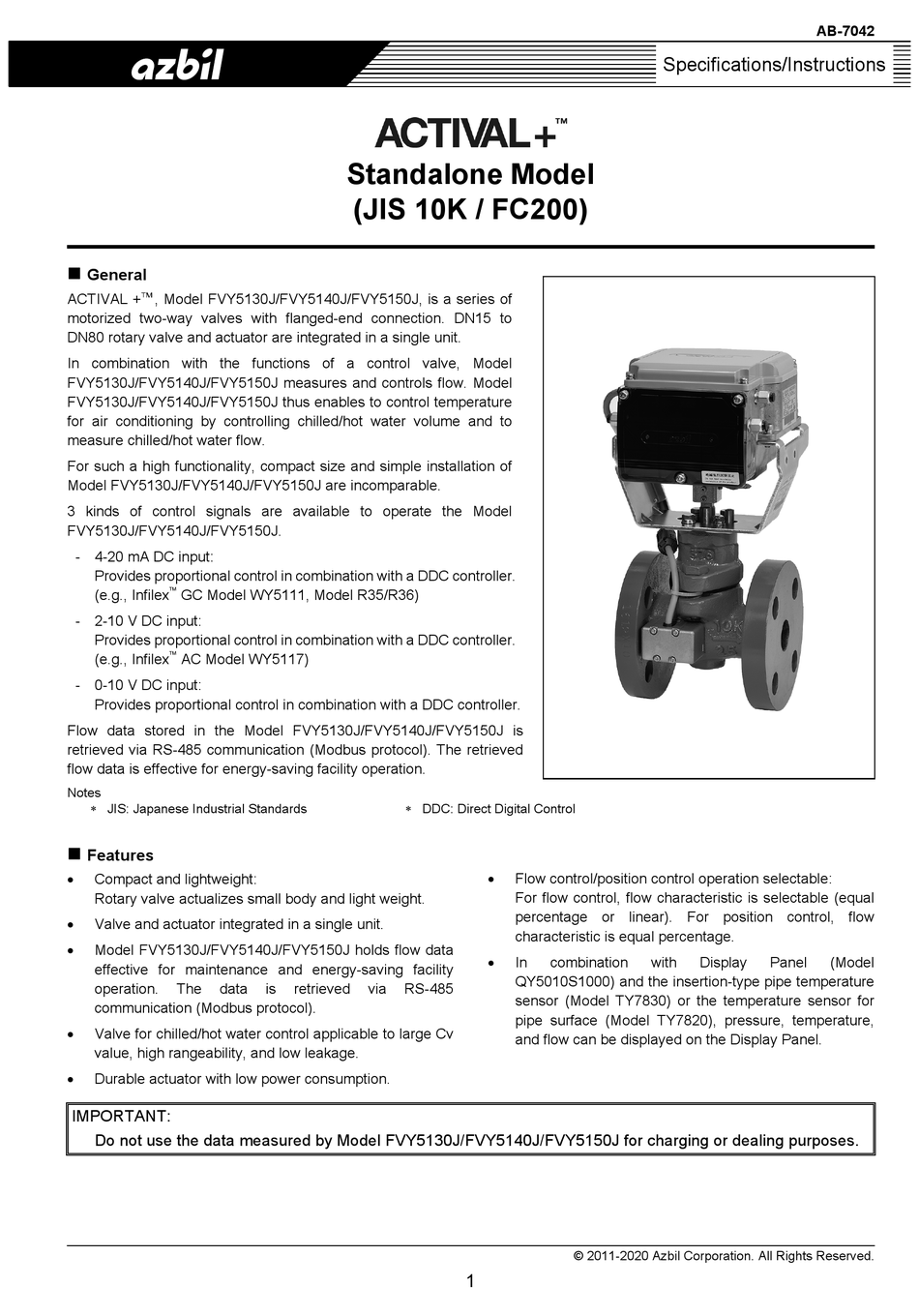

General

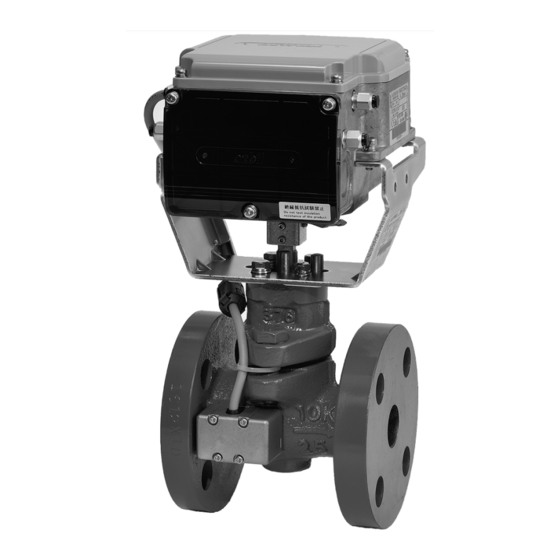

ACTIVAL +, Model FVY5130J/FVY5140J/FVY5150J, is a series of
motorized two-way valves with flanged-end connection. DN15 to
DN80 rotary valve and actuator are integrated in a single unit.
In combination with the functions of a control valve, Model
FVY5130J/FVY5140J/FVY5150J measures and controls flow. Model
FVY5130J/FVY5140J/FVY5150J thus enables to control temperature
for air conditioning by controlling chilled/hot water volume and to
measure chilled/hot water flow.
For such a high functionality, compact size and simple installation of
Model FVY5130J/FVY5140J/FVY5150J are incomparable.
3 kinds of control signals are available to operate the Model
FVY5130J/FVY5140J/FVY5150J.
- 4-20 mA DC input:
Provides proportional control in combination with a DDC controller.
(e.g., Infilex
GC Model WY5111, Model R35/R36)
- 2-10 V DC input:
Provides proportional control in combination with a DDC controller.
(e.g., Infilex
AC Model WY5117)
- 0-10 V DC input:
Provides proportional control in combination with a DDC controller.
Flow data stored in the Model FVY5130J/FVY5140J/FVY5150J is
retrieved via RS-485 communication (Modbus protocol). The retrieved
flow data is effective for energy-saving facility operation.
Notes
 JIS: Japanese Industrial Standards
Features
Compact and lightweight:
Rotary valve actualizes small body and light weight.
Valve and actuator integrated in a single unit.
Model FVY5130J/FVY5140J/FVY5150J holds flow data
effective for maintenance and energy-saving facility
operation.
The
data
communication (Modbus protocol).
Valve for chilled/hot water control applicable to large Cv
value, high rangeability, and low leakage.
Durable actuator with low power consumption.
IMPORTANT:
Do not use the data measured by Model FVY5130J/FVY5140J/FVY5150J for charging or dealing purposes.
Standalone Model
(JIS 10K / FC200)
 DDC: Direct Digital Control
is
retrieved
via
RS-485
Flow control/position control operation selectable:
For flow control, flow characteristic is selectable (equal
percentage or linear). For position control, flow
characteristic is equal percentage.
In
combination
QY5010S1000) and the insertion-type pipe temperature
sensor (Model TY7830) or the temperature sensor for
pipe surface (Model TY7820), pressure, temperature,
and flow can be displayed on the Display Panel.
© 2011-2020 Azbil Corporation. All Rights Reserved.
1
AB-7042
Specifications/Instructions
with
Display
Panel
(Model

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTIVAL+ FVY5130J and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Azbil ACTIVAL+ FVY5130J

  • Page 1 Display Panel. value, high rangeability, and low leakage.  Durable actuator with low power consumption. IMPORTANT: Do not use the data measured by Model FVY5130J/FVY5140J/FVY5150J for charging or dealing purposes. © 2011-2020 Azbil Corporation. All Rights Reserved.
  • Page 2: Safety Instructions

    When installing this product, hold it in the proper please contact Azbil Corporation’s sales representative. position and securely fasten it to the pipes.  Azbil Corporation will not bear any responsibility for the Excessive tightening or improper installation results produced by the operators. position may damage the valve.
  • Page 3: Model Numbers

    AB-7042 IMPORTANT:  This product is applicable only to chilled/hot water control. If the product is used to control any other medium such as brine or air, flow cannot be measured or controlled.  Install the valve so that the flow direction of process fluid agrees with the arrow indicated on the valve body. If the flow direction is opposite to the arrow, correct measurement and control of flow is not assured.
  • Page 4 AB-7042  Options For options, separate order is required. Item Specification Note 7 mm to 9 mm Seal connector Part No. 83104346-003 9 mm to 11 mm Part No. 83104346-004 11 mm to 13 mm Part No. 83104346-005 4 mm to 6 mm Part No.
  • Page 5: Valve Specifications

    AB-7042  Specifications For weight, refer to the table shown in the section Dimensions.  Valve and actuator (as a single unit) specifications Item Specification Rated operating condition Transport/storage conditions (packaged) Environmental conditions -20 C to 50 C -20 C to 70 C Ambient temperature (Do not allow process fluid to freeze.) Ambient humidity...
  • Page 6: Actuator Specifications

    AB-7042  Actuator specifications Item Specification 24 V AC  15 %, 50 Hz/60 Hz Power supply Power consumption 8 VA 63  5 sec (50 Hz) / 53  5 sec (60 Hz) Timing 4-20 mA DC input (Input impedance: 250 ) Control signal Model FVY5130J Model FVY5140J...
  • Page 7: Measuring Range And Accuracy

    AB-7042  Measuring range and accuracy (1/2) Item Specification Model number Nominal size Cv value Max. set flow Flow rate Setting range measuring FVY5130J0011/FVY5140J0011/FVY5150J0011 DN15 (1/2”) 10 l/min FVY5130J0012/FVY5140J0012/FVY5150J0012 DN15 (1/2”) 25 l/min FVY5130J0013/FVY5140J0013/FVY5150J0013 DN15 (1/2”) 60 l/min FVY5130J0021/FVY5140J0021/FVY5150J0021 DN25 (1”) 100 l/min FVY5130J0022/FVY5140J0022/FVY5150J0022 DN25 (1”)
  • Page 8 AB-7042 (2/2) Item Specification Pressure Measuring range 0 MPa to 1.0 MPa* measuring Accuracy of  0.5 %FS (factory preset) * the displayed pressure 0 C to 80 C Temperature Measuring range measuring  1.0 C (factory preset) in the 0 C to 80 C measuring range* Accuracy (within 0 C to 80 C measuring range, at -25 C to 40 C temperature difference between measuring temperature and ambient temperature)
  • Page 9: Wire Specifications

    AB-7042  Wire Specifications Item Specification Length* Connection  Power JIS CVV, JIS IV M3.5 screw connection 0.75 mm , 1.25 mm , 2.0 mm ® Control signal, DI (Cooling/heating switch JIS CVV, JIS IV, KPEV , JCS* CVV-S 50 m M3.5 screw connection signal), pulse output 0.75 mm...
  • Page 10: Parts Indication

    AB-7042  Parts Indication  Valve details Top cover Top cover Terminal cover Actuator Knockout hole Terminal cover Pointer Yoke Joint Bonnet O-ring Gland packing Stem Spring Valve body Plug Seat ring Heat insulation Figure 2. Parts indication: Valve details ...
  • Page 11: Notes For Installation

    AB-7042  Installation  WARNING When handling or transporting any heavy product (more than 18 kg), carefully move the product with a hand truck or  the like, or with 2 or more people. Careless lifting or accidental dropping of the product may result in injury or product damage. ...
  • Page 12: Mounting Position

    AB-7042  Mounting Position  Install the valve so that fluid flows in the direction pointed by the arrow on the valve body, and keep the valve orientation as described below. Orientation of the actuator cannot be changed.  The product can be mounted with any position from upright to sideways (max. 90-degree inclination) and flow direction is from bottom to top.
  • Page 13 AB-7042 3) Fully open the valve and flush it out with the maximum flow rate. When fluid flows for the first time, it is to clean out the foreign substances and refuse in the pipes. The valve is set to fully open when it is shipped from the factory. ...
  • Page 14 AB-7042  Manually opening/closing valve IMPORTANT:  Before opening or closing the valve manually, turn off the power. If the valve is manually opened or closed while the power 24 V AC active, the actuator may break down.  Do not manually open or close the valve more than 100 % or less than 0 % scale. 1) Turn off the power.
  • Page 15: Wiring Procedure

    AB-7042  Wiring  CAUTION Provide a circuit protector (e.g., a fuse or circuit breaker) for the power source.  Failure to do so may cause a short circuit leading to fire or device failure. Install, wire, and use this product under the conditions specified by this manual. ...
  • Page 16 AB-7042 3) Refer to Figs. 3 and 11 and correctly connect the wires to the M3.5 screw terminals. Note that the wires of the temperature sensor, Display Panel, and RS-485 communication lines are connected to the connectors. Control signal (Cooling/heating 24 V AC cable Pulse output input...
  • Page 17 AB-7042 3) Unplug the 6-pin connector for temperature sensor (Pt100 input) from the actuator socket, and connect the sheath stripped wires (3-core cable of the temperature sensor (Pt100 input)) to the connector. Insert a slotted screwdriver (with 2.5  0.4 mm blade tip) into a square hole of the connector for clamp release.
  • Page 18 AB-7042 3) Unplug the 6-pin connector for RS-485 communication from the actuator socket, and connect the sheath stripped wires to the connector. Insert a slotted screwdriver (with 2.5  0.4 mm blade tip) into a pocket on the top/bottom of the connector for clamp release.
  • Page 19 AB-7042 Internal isolation: Only the pulse output and the RS-485 communication are internally isolated. Isolator therefore is required to connect a non-isolated device to the control signal input and DI (Cooling/heating switch signal) of the product. Solid line: Isolated, Dashed line: Not isolated Power T1 (Supply water temperature) T2 (Return water temperature)
  • Page 20: Connection Examples

    AB-7042  Connection examples Controller Isolator* (e.g. Model R35/R36TC0) Isolator* Controller Model FVY5130J Model FVY5130J (e.g. Model R35/R36TC0) (4-20 mA input) (4-20 mA input) Isolator* Isolator* Controller Power Power Model FVY5130J Model FVY5130J Power (e.g. Model R35/R36TC0) (4-20 mA input) (4-20 mA input) Notes: Notes:...
  • Page 21 AB-7042 Slave (Model R series) Master Isolator* Controller Model FVY5150J (e.g. Third party (0-10 V input) controller) Slave (Model FVY51X0J: this product) Figure 27. Connection example: 3-wire RS-485 communication Isolator* Power Model FVY5150J Notes: (0-10 V input) 1 Provide an isolator for the controller not internally isolated. 2 Terminals 2, 6, and 8 of the product are internally connected.
  • Page 22 AB-7042   Cable Gland with Three Ports Attaching the cover to the base Cable gland with three ports (Model DY7000A1000) is Attach the cover to the base and fix them by locking the 3 recommended to attach to a wiring port (knock out hole) of latches.
  • Page 23 AB-7042 2) Connect the seal connectors (optional) to the cover of 6) Lead the wires (sheath stripped part of cables) through the cable gland. the wiring port (where the base of the cable gland is attached) of the product. Then, attach the cover of the IMPORTANT: cable gland to the base.
  • Page 24: Maintenance

    - For cable connection, use a water-proof connector. If your problem is not solved by the corresponding action, In accordance with the diameter of the cable used, select please contact Azbil Corporation near you. a suitable waterproof connector from ■ “ Model Numbers,” ● “Options”...
  • Page 25 AB-7042 Table 1. Inspection items and details Inspection item Inspection interval Inspection detail  Visual inspection Semiannual Fluid leakage from the gland and the flange face  Loosened bolts  Valve and actuator damages  Operating status Semiannual Unstable open/close operation ...
  • Page 26 AB-7042 This blank page was added for page layout purposes.
  • Page 27 AB-7042 This blank page was added for page layout purposes.
  • Page 28 AB-7042 ACTIVAL and ACTIVAL + are trademarks of Azbil Corporation in Japan or in other countries. KPEV is a registered trademark of Furukawa Electric Co., Ltd. This product complies with the following Electromagnetic Compatibility (EMC). EMC: EN61000-6-2, EN55011 Class A Specifications are subject to change without notice.
