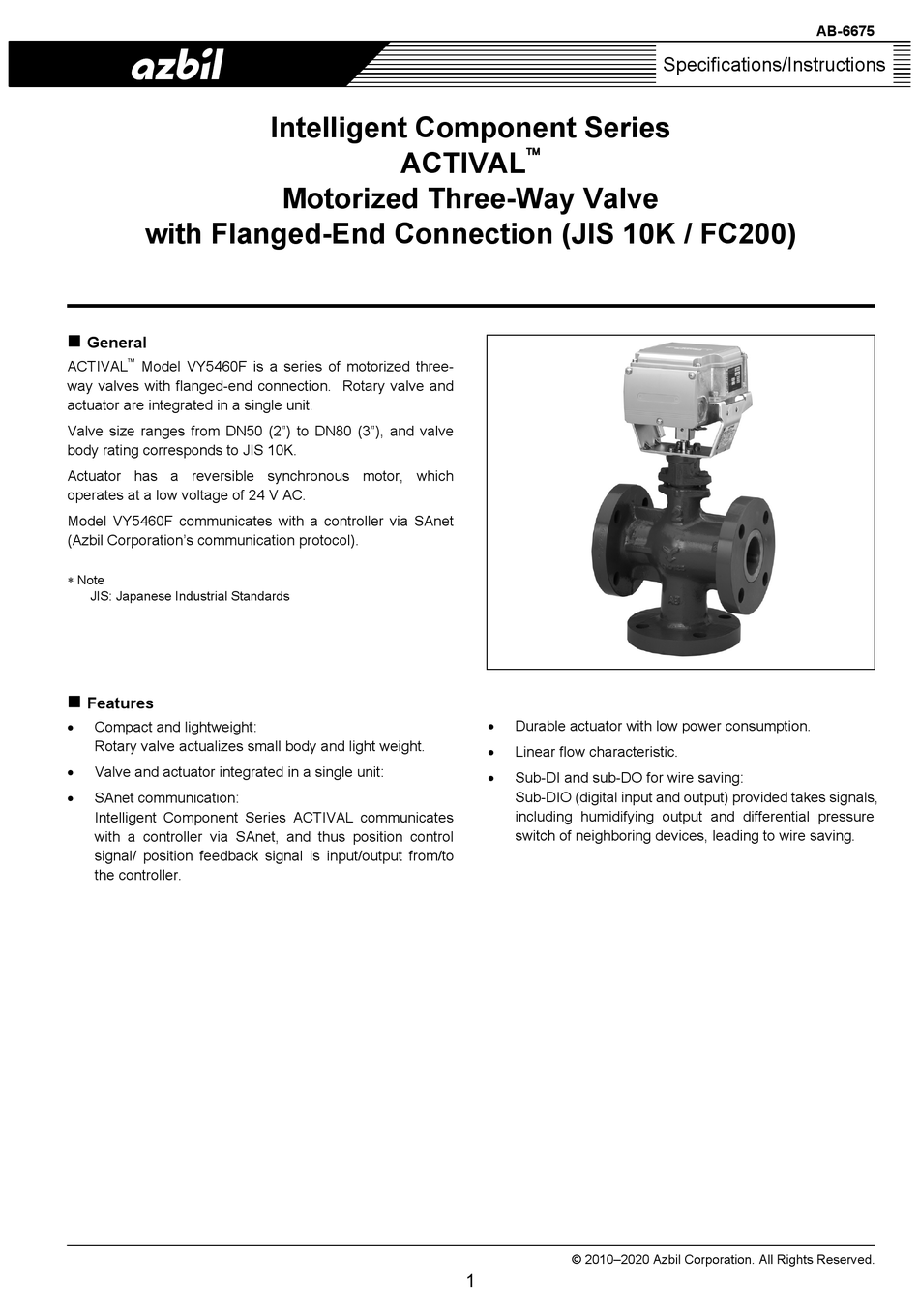

with Flanged-End Connection (JIS 10K / FC200)
General
ACTIVAL

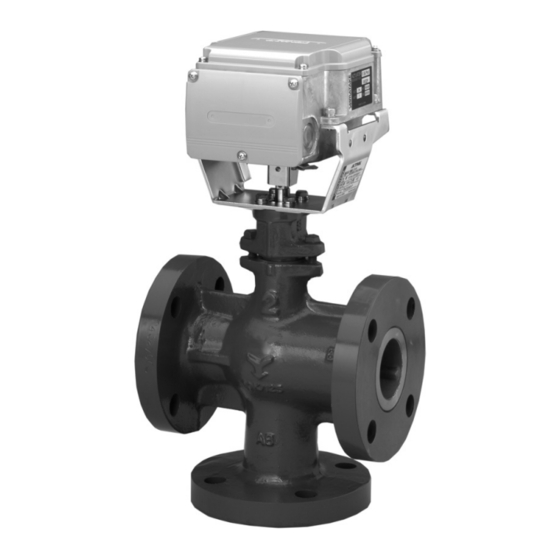

Model VY5460F is a series of motorized three-
way valves with flanged-end connection. Rotary valve and
actuator are integrated in a single unit.
Valve size ranges from DN50 (2") to DN80 (3"), and valve
body rating corresponds to JIS 10K.
Actuator has a reversible synchronous motor, which
operates at a low voltage of 24 V AC.
Model VY5460F communicates with a controller via SAnet
(Azbil Corporation's communication protocol).
Note
JIS: Japanese Industrial Standards
Features
Compact and lightweight:
Rotary valve actualizes small body and light weight.
Valve and actuator integrated in a single unit:
SAnet communication:
Intelligent Component Series ACTIVAL communicates
with a controller via SAnet, and thus position control
signal/ position feedback signal is input/output from/to
the controller.
Intelligent Component Series
ACTIVAL
Motorized Three-Way Valve
Durable actuator with low power consumption.
Linear flow characteristic.
Sub-DI and sub-DO for wire saving:
Sub-DIO (digital input and output) provided takes signals,
including humidifying output and differential pressure
switch of neighboring devices, leading to wire saving.
© 2010–2020 Azbil Corporation. All Rights Reserved.
1
AB-6675
Specifications/Instructions
Advertisement
Table of Contents
Related Manuals for Azbil ACTIVAL Intelligent Component Series
Summary of Contents for Azbil ACTIVAL Intelligent Component Series
- Page 1 Intelligent Component Series ACTIVAL communicates including humidifying output and differential pressure switch of neighboring devices, leading to wire saving. with a controller via SAnet, and thus position control signal/ position feedback signal is input/output from/to the controller. © 2010–2020 Azbil Corporation. All Rights Reserved.
-
Page 2: Safety Instructions
When piping this product, be sure there is no please contact Azbil Corporation’s sales representative. foreign matter in the pipes. Azbil Corporation will not bear any responsibility for the If foreign matter remains in the pipes, the product results produced by the operators. may break down. -
Page 3: System Configurations
AB-6675 System Configurations Client PC BACnet NC-bus (Max. 25 units and 500 m, but extendable up to 1000 m with the repeater module.) Infilex Model WY5117C SC-bus (Max. 50 units and 1000 m) Infilex Model WY5122 ... -
Page 4: Model Numbers
AB-6675 Model Numbers Model VY5460F00XX is the model for the valve and actuator integrated into a single unit. The model number label is attached to the yoke. Actuator/valve Actuator Valve Base model Description Control Rating/ Nominal Type number signal material... -
Page 5: Valve Specifications
AB-6675 Specifications For weight, refer to the table shown in the section Dimensions. Valve specifications Item Specification Model Three-way valve with flanged-end connection, proportional control Body pressure rating JIS 10K (Max. working pressure: 1.0 MPa) Model number Nominal size Close-off ratings Size, Cv, Close-off rating. -
Page 6: Actuator Specifications
AB-6675 Actuator specifications Item Specification 24 V AC 15 %, 50 Hz/60 Hz Power supply Power consumption 10 VA 63 5 sec (50 Hz) / 53 5 sec (60 Hz) Timing Control signal SAnet Sub-DI Input type Potential free (dry) contact input (contact input) Voltage, current... -
Page 7: Wire Specifications
AB-6675 Valve and actuator (as a single unit) specifications Item Specification Transport/storage conditions Environmental conditions Rated operating condition Limit operating condition (packaged* -20 C to 50 C -20 C to 60 C -20 C to 70 C Ambient temperature* Ambient humidity 5 %RH to 95 %RH Vibration... -
Page 8: Parts Indication
AB-6675 Dimensions Min. 300 Min. 300 Min. 600 Min. 300 Min. 300 N h C Note: Leave enough clearance for maintenance and wire connection after installation. 600 mm or more clearance is recommended. Flow direction Install the product in a location where address setting inside the cover can visually be checked. -
Page 9: Installation
AB-6675 Installation Precautions for installation WARNING When handling or transporting any heavy product (more than 18 kg), carefully move the product with a hand truck or the like, or with 2 or more people. Careless lifting or accidental dropping of the product may result in injury or product damage. ... -
Page 10: Mounting Position
AB-6675 Mounting position The ACTIVAL can be mounted in any position ranging from upright to sideways (90 tilted). The ACTIVAL should be installed with its actuator vertically positioned above the valve body. (See Fig. 7.) However, the ACTIVAL must be installed always in upright position outdoors. - Page 11 AB-6675 Application examples For diverting valve application For mixing valve application Figure 9. Example of diverting valve application Figure 10. Example of mixing valve application Installation examples For diverting valve installation For mixing valve installation Upright Upright 90 tilted 90...
- Page 12 AB-6675 Procedure to change the actuator mounting position IMPORTANT: Do not change the combination of the valve, yoke, and actuator. Set the ACTIVAL (actuator and valve) in 100 % position when changing the mounting position. If the valve in 0 % position is assembled with the actuator in 100 % position, the actuator puts torque on the closed valve, and the gear of the actuator gets damaged.
- Page 13 AB-6675 Wiring WARNING Before wiring, be sure to turn off the power to this product. Failure to do so may result in electric shock or device failure. Be sure to ground this product with a ground resistance of less than 100 Ω. ...
- Page 14 AB-6675 2) Unscrew the 3 setscrews (M4 10) of the terminal cover and remove the terminal cover, as shown in Fig. 16. Setscrews Terminal cover 1. Unscrew the setscrews. 2. Remove terminal cover. Terminal block Ground terminal Figure 16. Terminal cover removal 3) Correctly connect the wires to the terminals with M3.5 screw terminal lugs, referring to Fig.
- Page 15 - In accordance with the diameter of the cable used, select a suitable waterproof connector from “Model Numbers,” “Options” - To daisy-chain the SAnet line, use the SAnet cable gland with three ports and the seal connector Azbil Corporation supplies.
- Page 16 AB-6675 IMPORTANT: While the terminal cover is removed, do not touch the terminal block or allow anything to touch the terminal block. If the service pin switch is kept pressed for longer than 5 seconds, the mode will be switched and operation error (data point trouble) will be occurred.
-
Page 17: Manual Operation Mode
AB-6675 System Indication Label A part of the product code label can be a system indication label. Clip the part, and write down the name of the system, host controller number of the system, SAnet line number, and address. Then attach the part, as the system indication label, to a location where you can easily check. -
Page 18: Maintenance
Visually inspect the fluid leakage of the valve and the actuator operations every six months. If any of the problems described in Table 4 are found, take corresponding actions shown in the table. If your problem is not solved by the corresponding action, please contact Azbil Corporation near you. Table 3. Inspection items and details... - Page 19 AB-6675 This blank page was added for page layout purposes.
- Page 20 AB-6675 ACTIVAL and savic-net are trademarks of Azbil Corporation in Japan or in other countries. BACnet is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE). KPEV is a registered trademark of Furukawa Electric Co., Ltd.
