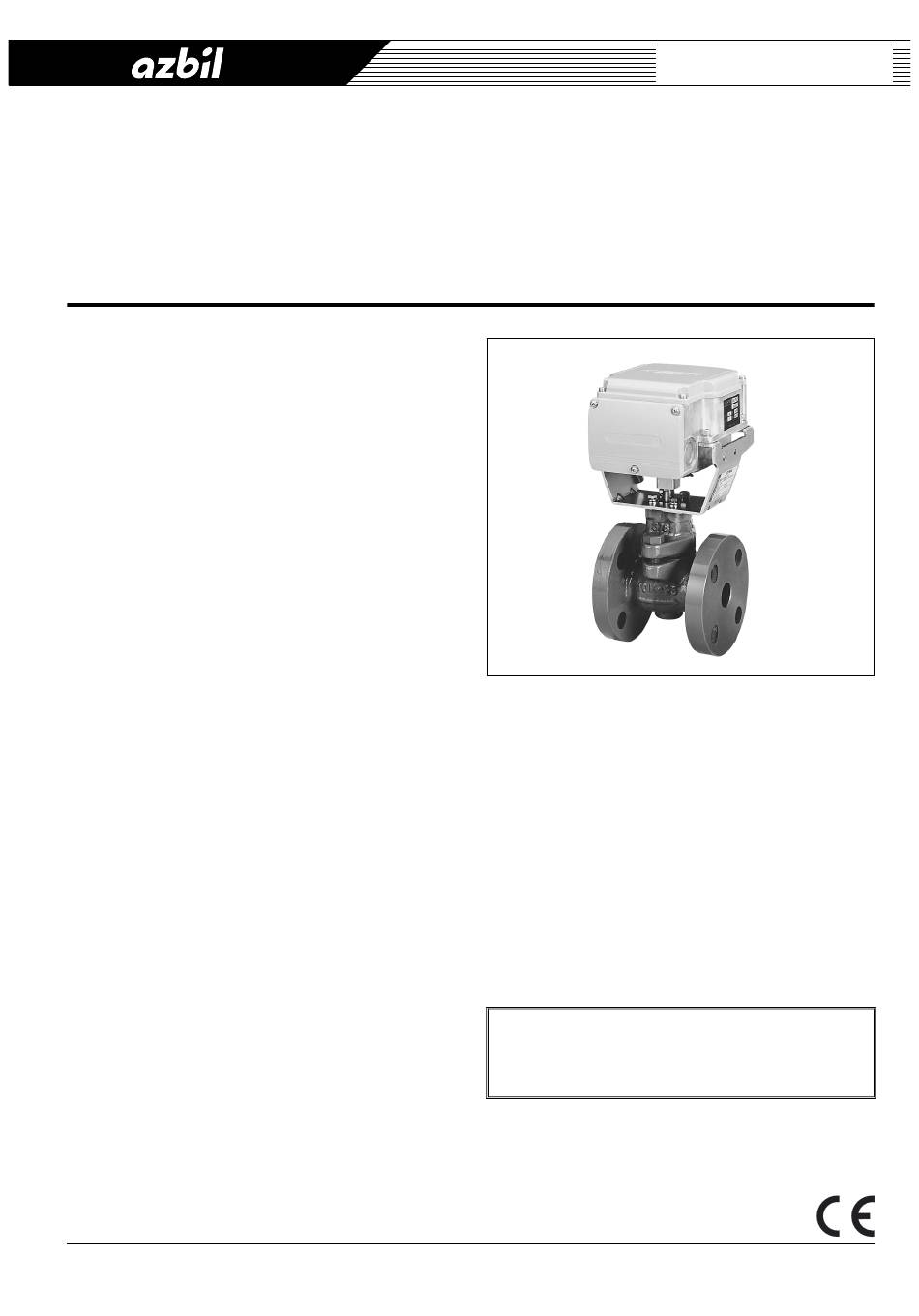

Azbil ACTIVAL Specifications & Instructions

Motorized Two-Way Valve with Flanged-End Connection
General
ACTIVAL Model VY51XXJ is a series of motorized two-way
valves with flanged-end connection. The valve and actuator
are integrated in a single unit.
The valve body rating corresponds to JIS 10K.
The actuator has a reversible synchronous motor, which
operates at a low voltage of 24 V AC.
4 kinds of control signals are available to operate the
ACTIVAL.
1. Nominal 135 Ω feedback potentiometer:
Provides proportional control in combination with a DDC
™
controller. (e.g., Infilex
2. Nominal resistance 135 Ω input:
Provides proportional control in combination with a
proportionally controlled
™
Neostat Model TY900XZ)
3. 4-20 mA DC input:
Provides proportional control in combination with a DDC
controller. (e.g., Infilex
R35/R36)
4. 2-10 V DC input:
Provides proportional control in combination with a DDC
™
controller. (e.g., Infilex
Features
•
Compact and lightweight:
Rotary motor actualizes small body and light weight.
•
Valve and actuator integrated in a single unit.
Pre-assembled body requires no adjustment.
•
A variety of control signals available:
- Nominal 135 Ω feedback potentiometer
- Nominal 135 Ω resistance input
- 4-20 mA DC input
- 2-10 V DC input
•
Valve for water/steam control applicable to high
differential pressure, large Cv value, high rangeability,
and low leakage.
ACTIVAL
(JIS 10K / FC200, SCS13A)
GC Model WY5111)
electric controller. (e.g.,
™
GC Model WY5111, Model
AC Model WY5117)
™
∗ Notes
DDC: Direct Digital Control
JIS: Japanese Industrial Standards
•
Durable actuator with low power consumption.
•
Equal percentage flow characteristics.
•
2-10 V DC output (for position feedback) available with
4-20 mA DC input type and 2-10 V DC input type.
IMPORTANT:
To control ACTIVAL with a third-party controller,
please consult with Azbil Corporation's sales
personnel.
1
AB-6464
Specifications/Instructions
