Motorized two-way valve with flanged-end connection for high differential pressure application

Advertisement

Quick Links

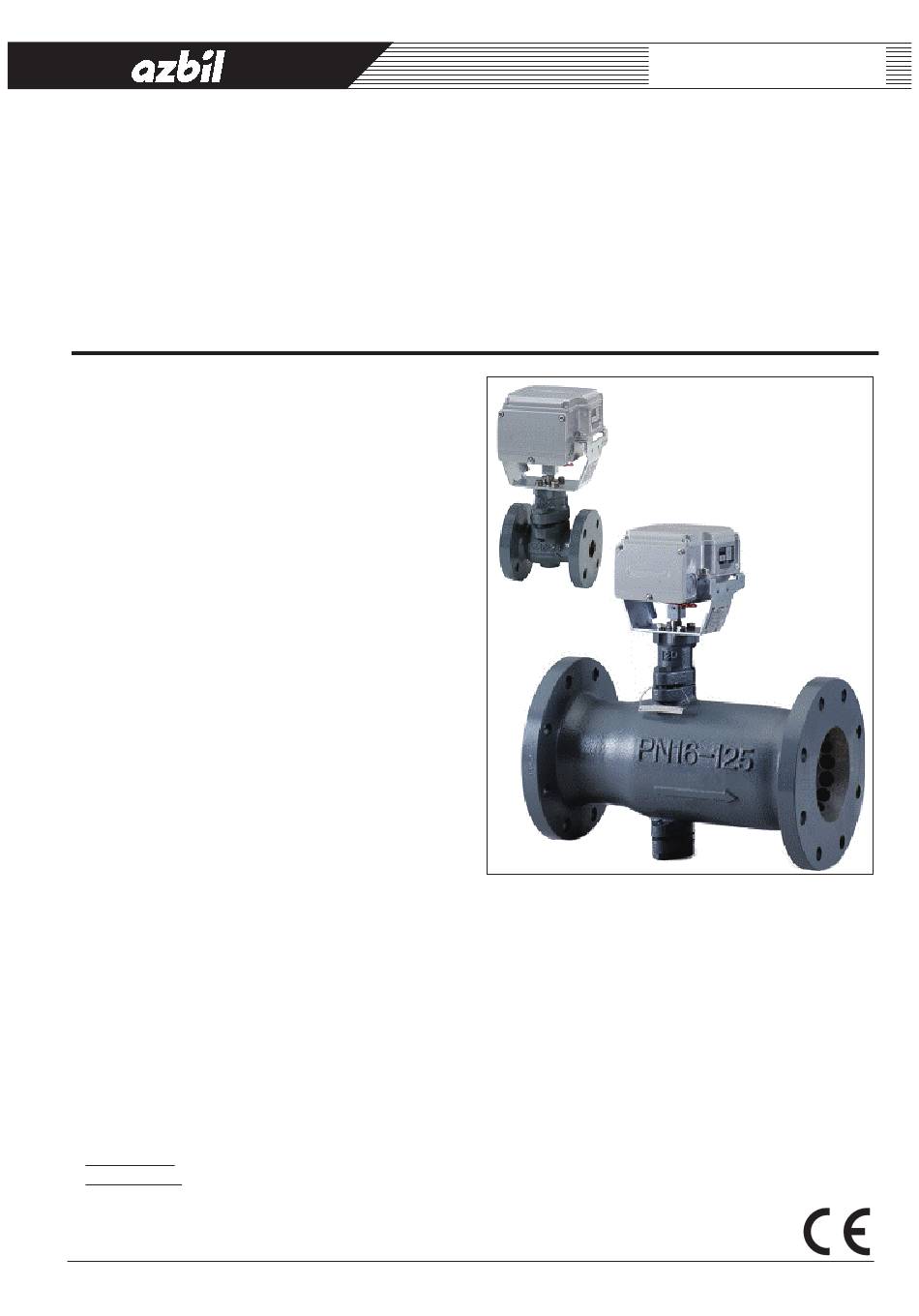

Motorized Two-Way Valve with Flanged-End Connection
for High Differential Pressure Application
<4-20 mA DC Input with 4-20 mA DC Feedback Output>
(ANSI Class125 equivalent / Gray cast iron)*
 General
ACTIVAL™ Model VY5199J for high differential pressure
application is a series of motorized two-way valves with
flanged-end connection. Rotary valve and actuator are
integrated in a single unit.
Valve size ranges from
1
" to 6".
1
/
2
Actuator has a reversible synchronous motor, which
operates at a low voltage of 24 V AC.
4 to 20 mA DC input control signal provides proportional
control in combination with a single loop controller (e.g.,
Model SDC35/SDC36).
 Features
• Applicable to high differential pressure applications:
Water flow is controlled inside the valve to prevent over
pressure drop, leading to cavitation erosion resistance.
(See Fig. 1.)
• Compact and lightweight:
Rotary motor actualizes small body and light weight.
• Valve and actuator integrated in a single unit:
Pre-assembled body requires no adjustment.
• Durable actuator with low power consumption
• Modified linear flow characteristics
• Valve applicable to high differential pressure, high Cv
value, wide rangeability, and low leakage
• 4 to 20 mA DC output available for position feedback.
• Open/close changeover for input signal failure:
Actuator fully opens/closes valve in case that the control
signal is not input to the actuator. (Default: Fully open)
• Direction changeover of control action:
Open/close action by 4 to 20 mA DC input signal is
reversely controllable.
Normal action 4 mA: 0 % to 20 mA: 100 %
Reverse action 20 mA: 0 % to 4 mA: 100 %.
(Default: Normal action)
* This product was designed and manufactured conforming to the ISO (International Organization for Standardization, PN16/GG-20).
ACTIVAL™
• Adjustable dead band*:
Dead band width can be narrowed to more precisely
operate valve actuator.
∗ Actuator is not operated by input signal changed less than a
certain amount. This amount of change is called dead band.
• CE Marking certified:
ACTIVAL Model VY5199J conforms to all the applicable
standards of CE Marking.
1
Specifications/Instructions
© 2015–2016 Azbil Corporation All Rights Reserved.
AB-7353-U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Actival VY5199J Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Azbil Actival VY5199J Series

  • Page 1 Normal action 4 mA: 0 % to 20 mA: 100 % Reverse action 20 mA: 0 % to 4 mA: 100 %. (Default: Normal action) * This product was designed and manufactured conforming to the ISO (International Organization for Standardization, PN16/GG-20). © 2015–2016 Azbil Corporation All Rights Reserved.
  • Page 2: Safety Instructions

    If this product is used in a clean room or a place where particularly high reliability or control accuracy is required, please contact our sales representative. Azbil Corporation will not bear any responsibility for the results produced by the operators.
  • Page 3  be burned. Temperature of some parts of the actuator becomes high. IMPORTANT: In case an Azbil Corporation product fails, you are required to provide your Equipment with safety design such as fool-proof design* , and fail-safe design* (anti-flame propagation design, etc.), whereby preventing any occurrence of physical injuries, fires, significant damage, and so forth.
  • Page 4: Model Numbers

    AB-7353-U  Mechanism of Cavitation Erosion Resistance ∗ Note: Fig.1 shows the image of 1 ” to 3'' valve model. 4'' to 6'' valve also has the cone as well. Refer to the section Dimensions for the image of 4'' to 6'' valve model. Cone Figure 1.
  • Page 5: Specifications

    AB-7353-U  Specifi cations For weight, refer to the table shown in the section Dimensions.  Valve specifi cations Item Specifi cation Model Two-way valve with fl anged-end connection proportional control ANSI Class125 equivalent (Max. working pressure: 230 psig) Class125 (ASTM A126 class B ASME 16.1-2010) at 32 to 347℉: 1 1/2"...
  • Page 6 AB-7353-U  Valve and actuator (as a single unit) specifications Item Specification Environmental conditions Transport/storage Rated operating condition Limit operating condition conditions (packaged* Ambient temperature* -4 to 122 °F (-20 to 50 °C) -4 to 140 °F -4 to 158 °F (Fluid temperature 32 to 302 °F (-20 to 60 °C) (-20 to 70 °C)
  • Page 7 AB-7353-U  Dimensions and Maintenance Clearance Valve size: 1 ” to 3'' 2.76" 2.76" Min. 12" 3.23" 3.35" (70 mm) (70 mm) (305 mm) (82 mm) (85 mm) Min. 20" (508 mm) (See Note.) N × h Dia. ∗ Note: Leave a clearance of 4"...
  • Page 8: Parts Identification

    AB-7353-U  Parts Identification Valve size: 1 " to 3'' Top cover Terminal cover Actuator Knockout hole Pointer Model number Joint VY5199JXXXX S-146 Yoke Gland packing O-ring Bonnet Stem Cone Valve body Seat ring Plug Valve size: 4'' to 6'' Top cover Terminal cover Pointer...
  • Page 9 AB-7353-U  Recommended Criteria to Prevent Cavitation Erosion Cavitation erosion is likely to occur in the case that the pressure ratio XF calculated by the following formula overreaches the criterion value. - Pv : Pressure ratio : Absolute pressure of valve inlet [psig (abs)] : Absolute pressure of valve outlet [psig (abs)] Pv: Saturated vapor pressure of fluid* [psig (abs)] ∗...
  • Page 10 AB-7353-U  Setting On the PCB (printed circuit board) of the actuator, the selector switches are provided.  WARNING • Before wiring, maintenance or setting the selector switches, be sure to turn off the power to the product  (including the optional devices). Failure to do so might cause electric shock or device failure. •...
  • Page 11 AB-7353-U  Installation  Precautions for installation  WARNING • Before wiring, maintenance or setting the selector switches, be sure to turn off the power to the product  (including the optional devices). Failure to do so might cause electric shock or device failure. ...
  • Page 12 AB-7353-U  Piping • Check that the model number of the product is what you ordered. The model number is shown on the label attached to the yoke. • Install a bypass pipe and gate valves on the inflow, outflow, and bypass sides. Also, install a strainer on the inflow side. •...
  • Page 13 AB-7353-U  Auxiliary switch (optional) IMPORTANT: • The auxiliary switch is installed on site. Refer to the instructions supplied with the auxiliary switch for installation. • Do not open the top cover except when adjusting the auxiliary switch. Close the top cover instantly after adjusting the auxiliary switch.
  • Page 14: Wiring Procedure

    AB-7353-U  Wiring  WARNING • Before wiring, maintenance or setting the selector switches, be sure to turn off the power to the product  (including the optional devices). Failure to do so might cause electric shock or device failure. •...
  • Page 15 AB-7353-U 2) Unscrew the 3 setscrews (M4 × 10) of the terminal cover and remove the terminal cover, as shown in Fig. 10. Set screws Terminal cover 1. Unscrew the setscrews. 2. Remove the terminal cover. Figure 10. Terminal cover removal 3) Correctly connect the wires to the terminals with M3.5 screw terminal lugs, referring to Figs 11 to 13.
  • Page 16 AB-7353-U  Connection Examples (Connection to Azbil Corporation's SDC series controller) Connection to Model SDC35TC0/SDC36TC0 Connection to Model SDC35TC0/SDC36TC0 (Parallel operation) Isolation Isolation transformer transformer Power Power supply supply + 13 + 13 Model SDC35/SDC36TC0 Model SDC35/SDC36TC0 Isolator Position indicator...
  • Page 17 AB-7353-U  Internal Connection of Auxiliary Switch  Auxiliary switch Part No. 83165274-001 N.C. Common N.O. N.C. Common N.O. Switches A and B actuating position: Adjustable between 0 % (fully closed) and 100 % (fully open) Figure 14. Internal connection of Part No. 83165274-001...
  • Page 18: Inspection And Maintenance

    If any of the problems described in Table 2 are found, take corresponding actions shown in the table. If your problem is not solved by the corresponding action, please contact Azbil Corporation near you. Table 1. Inspection items and details...
  • Page 19 AB-7353-U This blank page is added for page layout purposes.
  • Page 20 AB-7353-U ACTIVAL is a trademark of Azbil Corporation in Japan or in other countries. Specifications are subject to change without notice. Azbil North America, Inc. 9033 N. 24th Ave., Suite 6 Building Systems Company 1-12-2 Kawana, Fujisawa, Kanagawa Phoenix, AZ 85021...
