Two-way Ball Valve with Threaded-end Connection
General
ACTIVAL™ Model VY5302A is a two-way ball valve with
threaded-end connection (ISO 7-1: 1994). It proportionally
controls chilled/hot water for HVAC applications.
Model VY5302A has bronze valve body, stainless-steel ball
and stem, and the components exposed to process fluid are
made of other corrosion resistant materials.
Cv value and size variation of Model VY5302A are best
suited to HVAC control.
Model VY5302A is used in combination with the actuator
Model MY53X0A. Regarding the detailed information on the
actuator, refer to:
Specifications/Instructions of ACTIVAL Model MY53X0A
HVAC: Heating, ventilation, and air conditioning
ISO: International Organization for Standardization
Features
●
Compact and lightweight:
Valve can be installed in a restricted space such as
inside of a compact AHU.
●
Bronze valve body applicable to PN16.
●
Easy assembly with Model MY53X0A actuator using no
tool, and no adjustment required.
●
Equal percentage flow characteristic.
AHU: Air handling unit
IMPORTANT:
To control ACTIVAL with a third-party controller,
please consult with our sales person.
Model Numbers
Base model
Material
number
VY53
0
2A00
ACTIVAL™
Size/
Description
Cv
Two-way valve with
threaded-end connection
Bronze
Fixed
11
DN15 (1/2") / 2.5 in Cv
12
DN15 (1/2") / 4 in Cv
22
DN20 (3/4") / 6.3 in Cv
23
DN25 (1") / 10 in Cv
1
31
DN32 (1
/
") / 16 in Cv
4
1
41
DN40 (1
/
") / 25 in Cv
2
1
42
DN40 (1
/
") / 40 in Cv
2
51
DN50 (2") / 40 in Cv
Dimensions and Maintenance Clearance
min.120
(MY53)
DN
L
120
Model number
Valve size
VY5302A0011
DN15
VY5302A0012
DN15
VY5302A0022
DN20
VY5302A0023
DN25
VY5302A0031
DN32
VY5302A0041
DN40
VY5302A0042
DN40
VY5302A0051
DN50
Note:
* Rc: Internal tapered pipe thread complying with ISO 7-1: 1994.

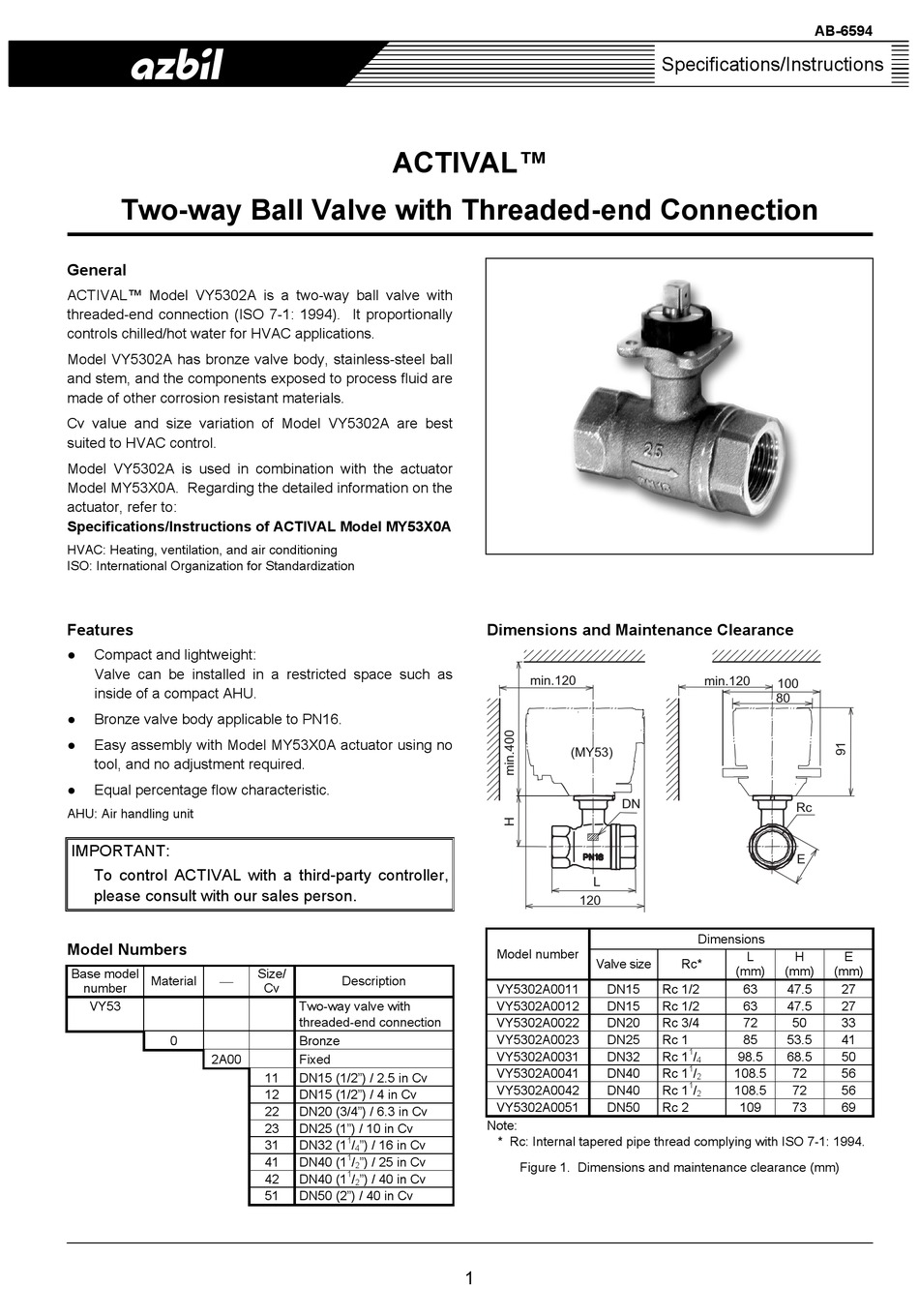

Figure 1. Dimensions and maintenance clearance (mm)
1
AB-6594
Specifications/Instructions
min.120
100
80
Rc
E
Dimensions
L
H
Rc*
(mm)
(mm)
(mm)
Rc 1/2
63
47.5
Rc 1/2
63
47.5
Rc 3/4
72
50
Rc 1
85
53.5
1
Rc 1
/
98.5
68.5
4
1
Rc 1
/
108.5
72
2
1
Rc 1
/
108.5
72
2
Rc 2
109
73
E
27
27
33
41
50
56
56
69
