SICK VMS4100 Operating Instructions Manual
Track and trace systems
Hide thumbs
Also See for VMS4100:
- Operating instructions manual (108 pages) ,
- Addendum to operating instructions (122 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SICK VMS4100
Summary of Contents for SICK VMS4100
- Page 1 O P E R A T I N G I N S T R U C T I O N S VMS4100/5100 Track and trace systems...
- Page 2 This document is an original document from SICK AG. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 3: Table Of Contents
Test instructions for market surveillance ......... 59 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 4 Replacing the photoelectric retro-reflective sensor (optional) ..107 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 5 10 Disposal ........................120 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 6: About This Document
This document is intended for qualified persons who operate the VMS4100/5100. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 7: Further Information
Illustrations may differ from the actual design. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 8: Safety Information
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 9: General Safety Notes
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 10: Sources Of Hazard
The software has been modified, customized, and/or tampered with without authorization. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 11: Rohs Directive
Important information and useful tips. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 12: Warning Symbols On The System Components
Disconnect before maintenance or repairs 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 13: System Description

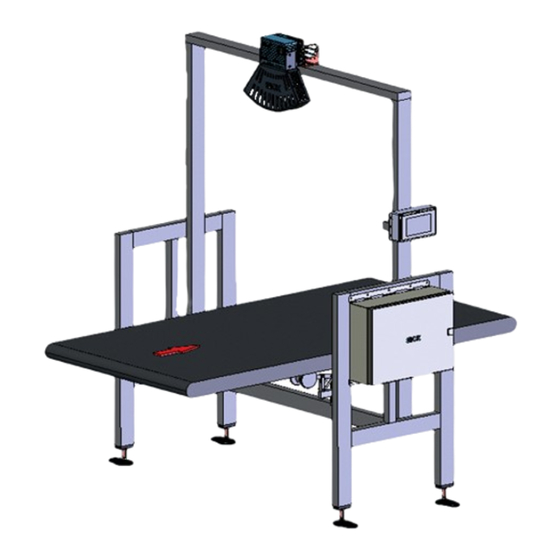

• 1 Deflector mirror for reducing the mounting height of the 2D LiDAR sensor 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 14: System Components
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 15 NOTE! These operating instructions describe the system variant without the deflector mirror. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 16: Lms4X21 2D-Lidar Sensor
(version history). 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 17: Incremental Encoder
• The photoelectric retro-reflective sensor trigger is available as an option. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 18: Cabinet
SIM2000 alibi memory, which is required for legal-for-trade verification. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 19 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 20: Expanding The System With A Reading Station
• Identification data and dimensional values are issued together to the higher-level system. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 21: Triggering The Recording Of Measured Values
• Measurement ends when the object leaves the scanning line. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 22 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 23: Operating Modes
Fig. 12: Minimum distance: 50 mm 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 24: Singulated" Operating Mode With Additional "Touching/Side-By-Side", "Singulation Verification" (Siv) Function
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 25 Fig. 15: Objects touching along an edge 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 26 Fig. 18: Required height difference for objects on top of one another: typically ≥ 30 mm 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 27 Fig. 19: Required gap for non-cubic objects (side-by-side): typically ≥ 50 mm 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 28: Touching/Side-By-Side" Operating Mode (Cubic Only)
Fig. 21: Gap between the side-by-side objects ≥ 50 mm 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 29 Fig. 23: Offset of touching objects: ≥ 75 mm 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 30 Fig. 24: Prohibited transport of objects on top of one another 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 31: Determining Measurement Results And Outputting Data
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 32 • The dimensional values for the detected objects cannot be calculated. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 33: Data Output
• The measurement results are also displayed on the LFT display. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 34 • Issue depends on the triggering mode selected. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 35: Additional Function
2D LiDAR sensor to the object surface via the CAN bus. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 36: Nominal Operating Conditions
Side” Operating condition 3) 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 37 Side” Operating condition 6) 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 38 Offset of the touching objects: ≥ 75 mm 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 39: Dynamic Scale Value Switchover
Identification label for scale interval value 2 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 40 The following table shows the scale interval values based on each respective measured object dimension. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 41: Legal For Trade Operation
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 42 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 43 Metrology information label with affixed type label 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 44 Metrology information label with affixed type label 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 45 Metrology information label with affixed type label 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 46 Metrology information label with affixed type label 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 47: Security Seal
Security seal on the connection of the mounting bracket and mounting frame 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 48 Security seal on the system mount / mirror holder point of contact 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 49 NOTE! The guard also prevents the DIP switch from shifting. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 50 Fig. 45: Securing connected sensors and I/Os of the SIM2000 system controller in the VMS5100 MID 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 51 (front side in this example) in the VMS5100 MID 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 52 Security seal on the male connector 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 53: Alibi Memory And Firmware
Micro SD card containing the firmware (included with delivery). 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 54 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 55 • It is interlocked by turning the calibration switch to the zero position. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 56: Lft Display
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 57 Fig. 59: LFT display – display of the parameter checksum history 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 58 • Enter a date to define a starting date for displaying the data sets. The display is automatically updated. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 59: Test Instructions For Market Surveillance
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 60 Enter a date to limit the period for the displayed data sets. This list is updated automatically. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 61 Tap the HISTORY button to call up current and older versions for a component. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 62 (“maintenance provider report”). 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 63: System Requirements For Legal For Trade Operation
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 64: Mounting Requirements
Aperture angle: 70° 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 65 • LFT measurements over the belt gap are not permitted. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 66: Object Requirements
Black with shiny tape 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 67 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 68: Mounting
Do not change the angle settings. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 69 Fig. 68: Dowel pins and locating holes 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 70: Mounting The Incremental Encoder
(bottom side of conveyor belt). 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 71: Mounting The Photoelectric Retro-Reflective Sensor Trigger (Optional)
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 72: Mounting The Cabinet
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 73: Electrical Installation
EN 60950 or ES1 EN 60368-1). 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 74: Connection Overview
Weighing station (optional) Data connection 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 75: Cabinet With Ethernet Switch
Weighing station (optional) Data connection 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 76: Connection To The Voltage Supply
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 77: Connection For The Ethernet Switch (Set Up At The Factory) - Cabinet With Ethernet Switch Only
Tab. 10: Connection for the Ethernet switch (set up at the factory) 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 78: Connection Of The 2D Lidar Sensor
Tab. 11: Connection for the 2D LiDAR sensor on the SIM2000 system controller 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 79: Cabinet With Ethernet Switch
Tab. 12: Connection for the 2D LiDAR sensor on the SIM2000 system controller / Ethernet switch 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 80: Connection For The Lft Display (Set Up At The Factory)
Tab. 13: Connection for the LFT display on the SIM2000 system controller / power supply unit 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 81: Cabinet With Ethernet Switch
Tab. 14: Connection for the LFT display on the Ethernet switch / power supply unit 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 82: Connecting The Incremental Encoder
• The connection with terminal 7 (24 V) can be omitted. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 83: Connection For The Photoelectric Retro-Reflective Sensor Trigger (Optional)
• The connection with terminal 7 (24 V) can be omitted. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 84: Connection For The Customer Interface
Ethernet or Gbit interface. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 85: Commissioning
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 86: Configuring The System With Sopas
Connection to the Ethernet switch 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 87: Installing Sopas
Perform the installation. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 88: Assigning Ip Addresses
If it is not, change the IP address of the configuration PC accordingly. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 89 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 90 Click Next to confirm each of the configured search settings, and click Finish to complete. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 91 2D LiDAR sensor is not yet known in the SOPAS project. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 92 PC. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 93 Add the device with port 2111 to the SOPAS project. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 94: Opening The Configuration Interface
SOPAS. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 95 Use the tabs to open the functional areas of the configuration. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 96: Logging Into The Device
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 97: Maintenance And Repair
Tab. 19: Maintenance intervals 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 98: Monitoring And Cleaning Work
Replace any damaged connecting cables immediately. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 99: Cleaning The 2D Lidar Sensor
Avoid any movements that could cause scratches or abrasions on the front screen. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 100: Cleaning The Deflector Mirror
Let the mirror dry. Do not wipe the mirror dry! 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 101: Checking The Incremental Encoder Components
Check that the photoelectric sensor and reflector are aligned correctly at regular intervals. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 102: Cleaning The Cabinet
Reattach the covers the right way up and press them down until they click into place. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 103: Replacing Components
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 104 The manufacturer will arrange for the system to be reverified after the replacement of a component. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 105: Replacing The Deflector Mirror
Check that the deflector mirror is aligned correctly. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 106: Replacing The Incremental Encoder Components
Screw the M12 plug connector onto the male connector on the measuring wheel encoder. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 107: Replacing The Photoelectric Retro-Reflective Sensor (Optional)
Check that the object detection photoelectric sensor is operating correctly. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 108: Fault Diagnosis
Tab. 20: Fault indication on the 2D LiDAR sensor 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 109: Sim2000 Fault Indication
Tab. 21: Fault indication on the SIM2000 system controller 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 110: Fault Indication On The Photoelectric Retro-Reflective Sensor Trigger
Tab. 22: Fault indication on the photoelectric retro-reflective sensor trigger 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 111: Checks On The Sim2000
Tab. 23: Checking triggering on the SIM2000 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 112: Checking The Incremental Encoder
Tab. 24: Checking incremental signals on the SIM2000 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 113: Checking The Can Cabling
Tab. 25: Checking CAN cabling on the SIM2000 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 114: Detailed Fault Analysis
NOTE! Please contact SICK Support for a more detailed analysis of the fault situation. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 115: Technical Data
= 0.1 m/s to ≤ 3 m/s 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 116 Tab. 26: Technical data for the VMS4100/5100 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
-
Page 117: Dimensional Drawings
Fig. 100: LMS4x21 dimensional drawing with laser protective cover 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 118: Dimensional Drawings For The Cabinet
Fig. 101: Dimensional drawing for cabinet of VMS4100/5100 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 119: Compliance With Eu Directives
8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... -
Page 120: Disposal
Liquid in the LC displays. 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice... - Page 121 DISPOSAL 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 122 DISPOSAL 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 123 DISPOSAL 8023994-17I6/2020-03-19|SICK O R I G I N A L O P E R A T I N G I N S T R U C T I O N S | VMS4100/5100 Subject to change without notice...
- Page 124 Phone +36 1 371 2680 Phone +386 591 788 49 E-Mail office@sick.hu E-Mail office@sick.si India South Africa Phone +91 22 4033 8333 Phone +27 11 472 3733 Further locations at www.sick.com E-Mail info@sick-india.com E-Mail info@sickautomation.co.za SICK AG | Waldkirch | Germany | www.sick.com...
