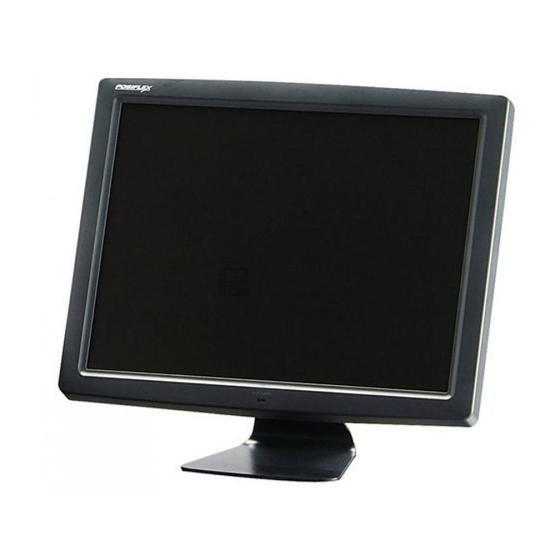

LM-2010 / 2010A / 2110 / 2110A
LCD Monitor
User's Manual
I.
FEATURES
• Light weight and high luminance LCD monitor for industrial and
commercial use
• Application covers POS, POIS (Kiosk), factory Automation etc.
• High quality 10.4" TFT LCD panel with scaling up function for full screen
display
• Supports display resolution up to 800 x 600 pixels
• Tilt adjustable construction
• Spill proof and easy maintenance structure allowing easy cleaning
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions manual, may cause interference to radio
communications. It has been tested and found to comply with limits for a Class A digital device
pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection
against interference when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his own expense will be
required to take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other
than the authorized technicians. The user should consult his/her dealer for the problem happened.
Warranty voids if the user does not follow the instructions in application of this merchandise. The
manufacturer is by no means responsible for any damage or hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user to utilize the LCD Monitor LM-2010/2010A/2110/2110A
series. This series is a 10.4" LCD monitor of long endurance industrial standards. The LM-
2010/2010A is a upgrade kit particularly designed for Posiflex hybrid terminal HT series host
system.
The manufacturer of the LM-2010/2010A/2110/2110A series heartily apologizes to the
user for reserving the right to change or to modify this manual without notice due to the rapid and
constant progress and improvement on science and technology. The user may always obtain the
most up to date information through any of our web sites: http://www.posiflex.com.tw, http:
//www.posiflex.com, http://www.posiflexusa.com.
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Posiflex Technologies, Inc..
Other brand and product names are trademarks and registered trademarks and service marks
of their respective owners.
P/N: 19670900030
Downloaded from ManualMonitor.com Manuals
© Copyright Posiflex Technologies, Inc. 2009
Rev. B0
Part 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX LM-2010
Summary of Contents for POSIFLEX LM-2010
- Page 1 This manual assists the user to utilize the LCD Monitor LM-2010/2010A/2110/2110A series. This series is a 10.4” LCD monitor of long endurance industrial standards. The LM- 2010/2010A is a upgrade kit particularly designed for Posiflex hybrid terminal HT series host system.
-
Page 2: Model Numbers
Insert the power adaptor to the wall socket and the LM-2110 / 2110A is ready for work. 3. For LM-2010 / 2010A, following actions shall be taken to install it onto HT systems with power for HT systems disconnected and also reference of the manuals of the HT systems. - Page 3 Please note that for LM-2010 / 2010A with a 2-digit system revision number, the screw holes on support bracket base look like the below left picture and the LM-2010 / 2010A can be fixed to straight backward of the HT or PB system.
- Page 4 OSD functions (On Screen Display adjustment). The OSD window will pop up on the screen. On top part of this window is a Posiflex logo with the OSD firmware version indicated to its lower right. Below this area is a row of icons for main OSD menu.
- Page 5 setting is pressed within a period of time (about 5 seconds to 1 minute as programmed) the OSD window will disappear with all the adjusted parameters saved. Explanations on items in sub menu are as below. “BRIGHTNESS / CONTRAST ADJUST SUBMENU”: There are 3 icons in this submenu: Press “OSD”...
- Page 6 among separate color adjust, 4200K, 5000K, 6500K, 7500K, 9300K and exit. “SEPARATE COLOR ADJUST”: When this item is selected, there will be 3 adjustment indication bars between the main menu area and the video signal mode. Press “NXT” button to select among the 3 colors Red, Green and Blue respectively. Press “+”...
- Page 7 the main menu area and the video signal mode. Press “+” or “-” button to adjust the pixel synchronization phase for best picture display. Press “OSD” button to save the current setting and return to “Geometry adjust submenu”. “HORIZONTAL POSITION”: When this item is selected, there will be only the horizontal position icon with an adjustment indication bar under it between the main menu area and the video signal mode.
-
Page 8: Supported Display Modes
window downward. Press “-” to go upward. Press “OSD” button to save the current setting and return to “OSD submenu”. “EXIT”: Return to “Tools submenu”. “RESET TO DEFAULT”: Pressing “OSD” button on this icon will set all parameters back to the status when the monitor left factory. “SMOOTHNESS / SHARPNESS ADJUST”: When this item is selected, there will be only the smoothness / sharpness adjust icon with an adjustment indication bar under it between the main menu area and... - Page 9 Part 9 Downloaded from ManualMonitor.com Manuals...
- Page 10 ĵ§i¨Ï¥ÎªÌ T31454 ³o¬O¥ÒÃþªº¸ê°T²£«~ ¡A ¦b©~¦íªºÀô ¹Ò¤¤¨Ï¥Î®É ¡A ¥i¯à·|³y¦¨®gÀW¤z ÂZ ¡A ¦b³oºØ±¡ªp¤U ¡A ¨Ï¥ÎªÌ·|³Q-n ¨D±Ä¨ú¬Y¨Ç¾A·íªº¹ïµ¦ ¡C Part 10 Downloaded from ManualMonitor.com Manuals...
