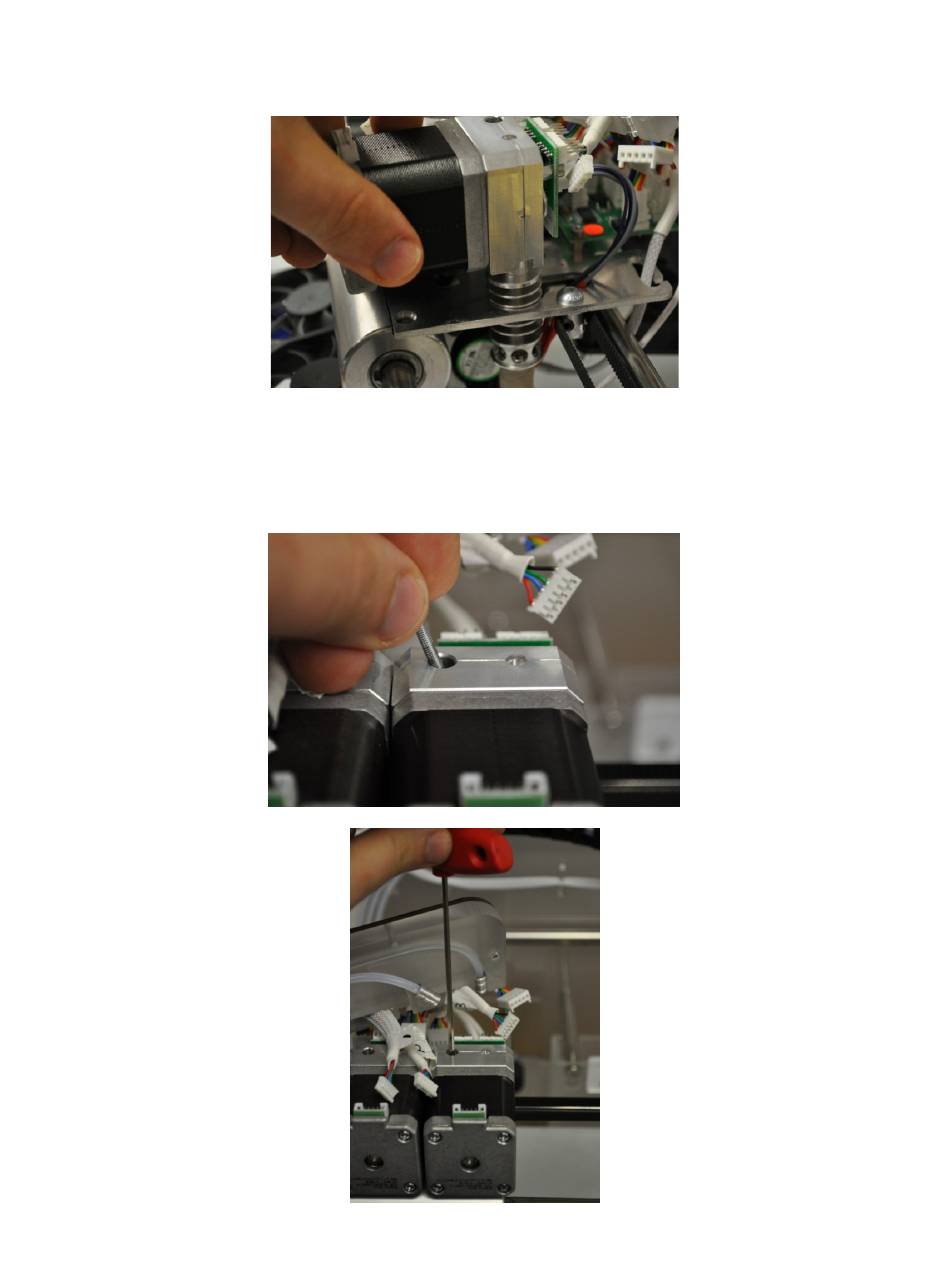

2. Place the Print Jet onto the Print Jet carriage plate as pictured, note the
locating standoff and corresponding hole present on the Print Jet
3. Ensure that the wires from the Print tip are orientated to travel straight up to
the Sensor board
4. Replace the M3 x 20 bolt into the hole as pictured and fasten. This must be
tight.
8
