3.4 Mounting for frame sizes FS2 and FS3

In the case of DA1 variable frequency drives with sizes FS2 and FS3, the
DX-NET-DEVICENET fieldbus connection needs to be installed on the bottom
of the variable frequency drive. To do this, use a flat-blade screwdriver to lift
off the cover at the marked cutout (without forcing it) and then remove the
cover by hand.
4 mm
1 2 3 4 5 6 7 8 9 10 11 12 13
COM
14 15 16 17 18
DC+ BR U V

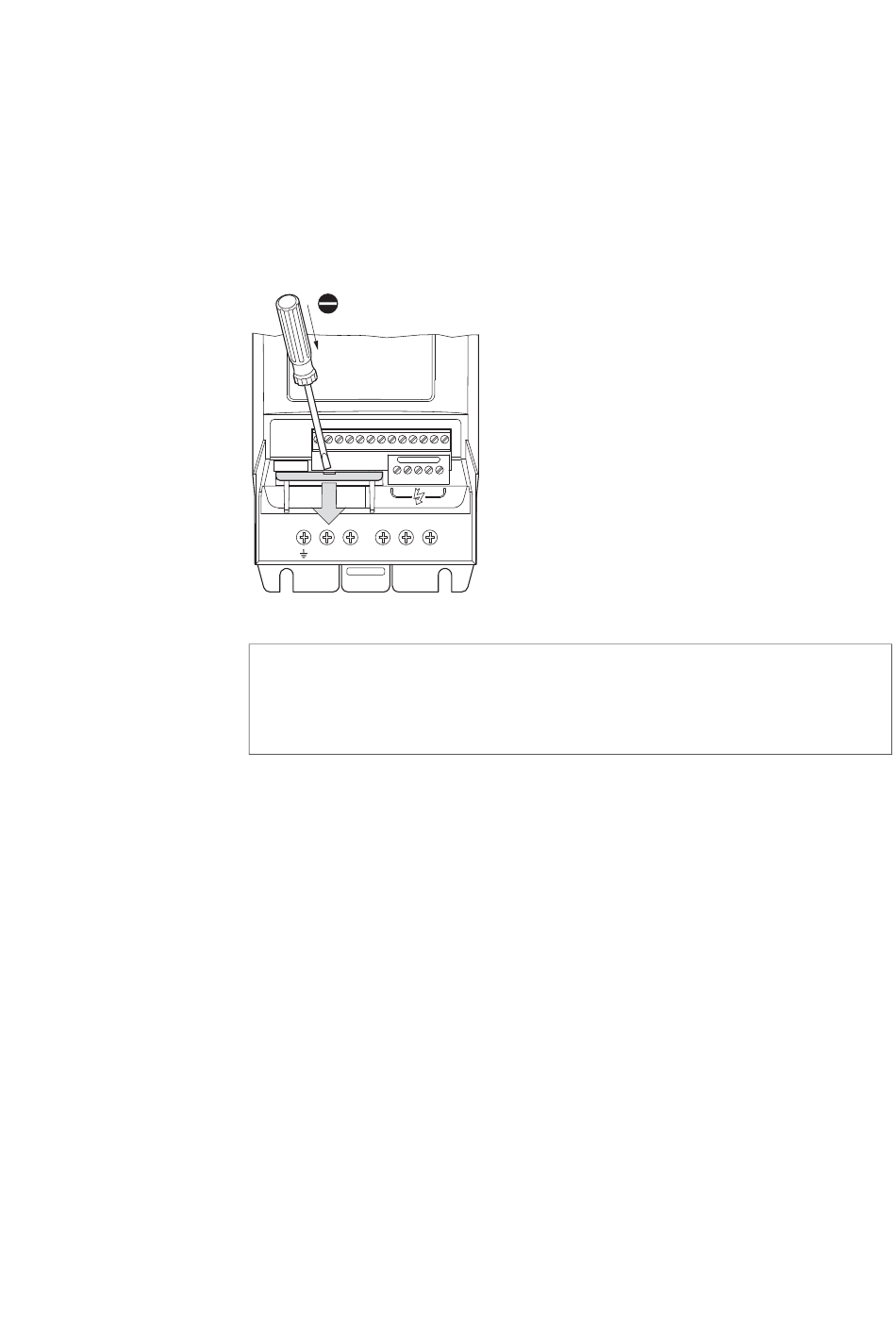

Figure 8: Opening the interface cover
NOTICE
Do not insert tools or other objects into the opened variable
frequency drive.
Ensure that foreign bodies do not enter the opened housing wall.
After doing so, you can insert the connection and secure it with the two
screws.
