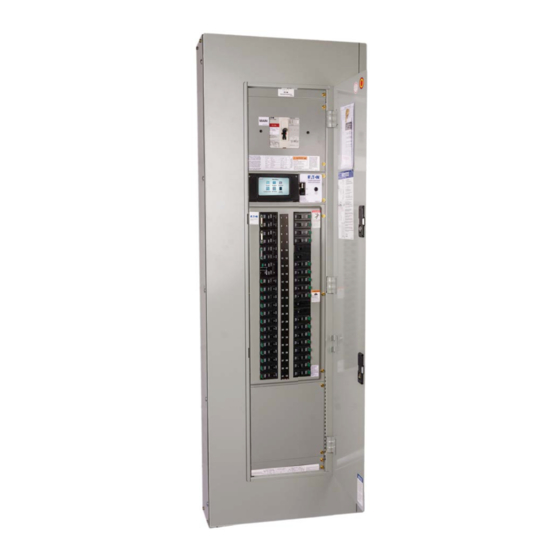

PRC-E Series
PRC-E Series Instruction Manual
Effective August 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRC-E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton PRC-E Series

Summary of Contents for Eaton PRC-E Series

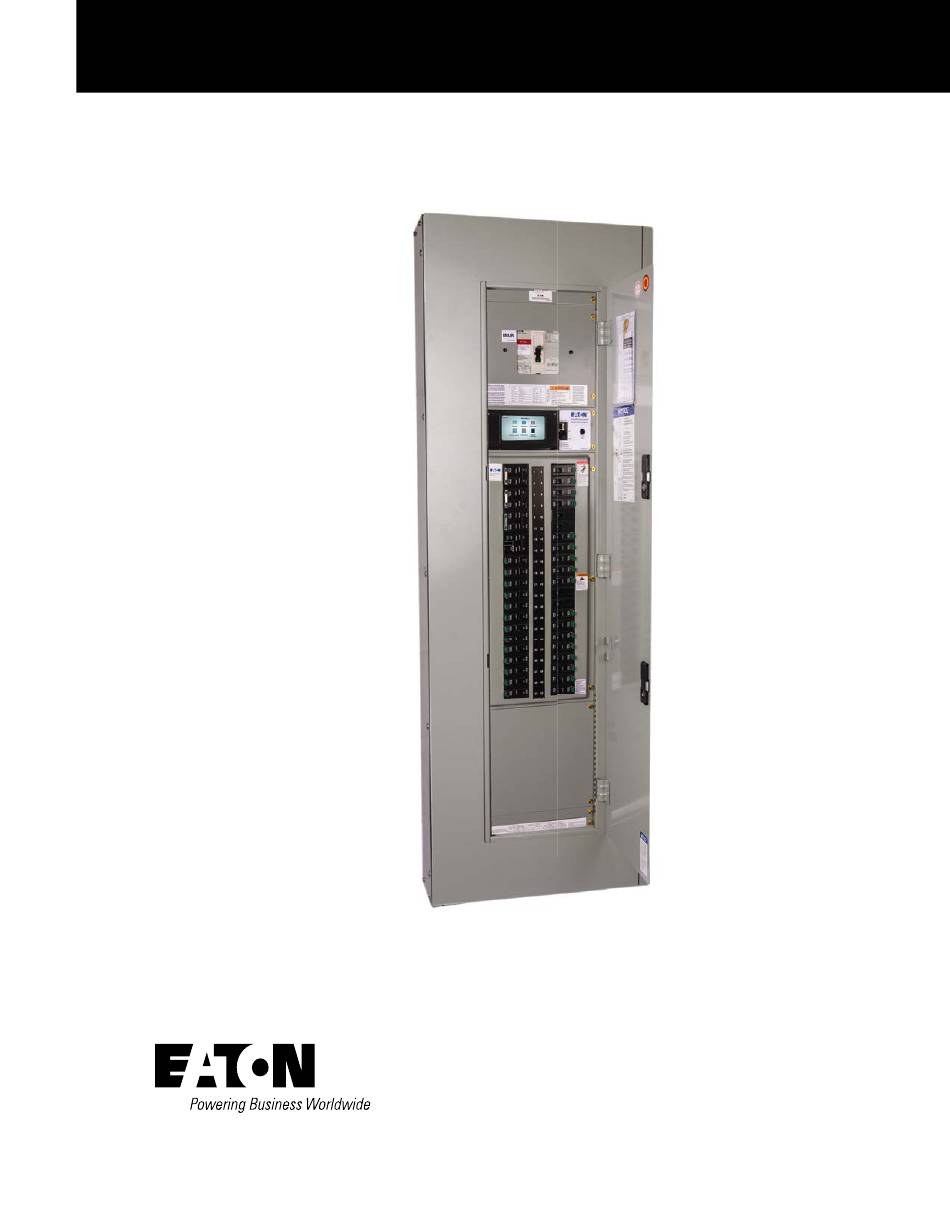

  • Page 1 PRC-E Series PRC-E Series Instruction Manual Effective August 2015...
  • Page 2 CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...

  • Page 3: Table Of Contents

    APPENDIX D—FIRMWARE UPDATES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 4 If further information is desired regarding the particular installation of the system, please contact your Eaton sales office The scope of this document is limited to the use of the ●...

  • Page 5: Introduction

    Breaker Control Bus (BCB) and solenoid operated controllable circuit breakers. PRC Expansion Panelboards (PRCEP) are designed to Breaker Control Bus (BCB) directly connect to PRC-E Series Master panelboards via Provides Control and Monitoring of Controllable controller SLAN communications. PRCEP includes Breaker...
  • Page 6 168 controllable circuit breakers. Pow-R-Command panelboard assemblies are configurable with a BCB on the left, right, or both sides of the panelboard to add flexibility in the system design. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...

  • Page 7: Controller Overview

    Ethernet Maintenance Port provides simple laptop ● ● connection using industry standard patch cable Figure 3 . PRC-E Series Controller Low Voltage Preconfigured Web pages or PRC software can be used Compartment ● ● to program, monitor, and override control using the...
  • Page 8 ● the presence of internal power to the controller. If this LED is not illuminated, check the “Internal” fuse in the low voltage wiring area of the PRC-E Series controller (see Figure 3 on page 3) PRCEP PRC-E Series Externally Mounted...

  • Page 9: Field Wiring Termination

    Figure 7 . PRC-E Series Wiring Panelboard control chassis The PRC-E Series Master Panelboard is shipped with an integral controller, which is pre-wired to the correct supply PRC-E voltage for the panelboard rating.

  • Page 10: Prc-E Series Externally Mounted Controller Cabinet

    The secondary leads are pre- It is recommended to use 16 AWG, 4-conductor cable with wired to the supply connector of the PRC-E Series 600 V insulation jacket (e.g., Alpha 1064) for interconnecting controller and inserted into the supply socket of BCB modules.
  • Page 11 Insulation heat-shrink tubing in lengths of 6 inches long are included in the panelboard parts bag. Cut this tubing The same type cable is used between the PRC-E Series in half and slip one length over the plug and cable prior externally mounted controller cabinet and the first BCB as is to plugging it into the BCB.
  • Page 12 PRC-E controller enclosure. This connector is found on the left and reference Figure 14 for positioning of the individual side of the PRC-E Series controller as shown in Figure 12. switches to achieve the required value. Be careful to observe the switch number as labeled so as to avoid Figure 12 .
  • Page 13 Figure 15 . Low Voltage Compartment Access Low voltage inputs and outputs Each PRC-E Series controller has a number of low voltage input and output connections. These general purpose points can be used for a variety of applications including...
  • Page 14 Reference PRCE 12 Vdc 500 mA maximum power supply connection within Input/Output drawing for field devices. the controller or from an external power source. Reference PRCE Input/Output drawing for field devices. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 15 PRC RS-485 (CNET) Belden 3105A Shielded twisted pair Up to max 80 mA sink or 40 mA source per output 0–10 V dimming fluorescent ballast or LED driver connection to analog output. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...

  • Page 16: Controller Network (Cnet) Overview

    The PRCSOC is connected to the PRC system via the CNET controller network (see Figure 18). Status and command The PRC-E Series controllers have RS-485 controller network signals are sent to the PRC system using Pow-R-Command (CNET) and Ethernet communications capabilities providing peer-to-peer protocol.
  • Page 17 EOL resistor in the controller. By default, the jumper is not connected. To add the resistor, place the jumper across the 5th set of posts marked with a “T” . See Figure 21 controller network jumpers. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...

  • Page 18: Ethernet Network

    Maintenance Port (refer to “Connecting personal computer to controller Maintenance Port” section on page 15 Once the controller is configured with required network parameters, a personal computer on the network can establish communications with the controller. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 19 IP address automatically. This can be done using MicrosoftT WindowsT by following these steps: Step 1 . Select “Start” Step 6 . Select “Internet Protocol Version” and “Properties” Step 2 . Select “Control Panel” PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 20 The PRC splash screen should open. In a few moments, configuration of Network IP of the PRC1500E and the the User Name and Password dialog will open. PRC2000E controllers using the Web pages. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...

  • Page 21: Lcd Programming

    ● ● Introduction The PRC-E Series controllers are equipped with a 2.25” x 3.75” resistive LCD touch screen. The touch screen has graphic icons that are used to navigate through the menus of the controller, input data, configure the controller, and initiate commands to control functionality.
  • Page 22 “Discover Breakers” action must be performed after the BCBs are correctly configured. For 42-circuits panelboards, the “Discover Breakers” action will automatically configure the BCBs so manual configuration is not necessary. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 23 See the list of panelboard panelboards, each BCB should have a unique address of 1–8. types and their descriptions for details. See the “BCB addressing” section on page 48. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 24 Tap the “Back” button. This will display the “Configuration” screen. Tap the “Back” button. Tap the “Discover Breakers” button in the left bottom corner of the screen. This will display the “Main Menu” screen. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 25 If the main handle is “OFF” , the status the “Breakers / Select Panelboard” screen. feedback will always be “OFF” . A green background indicates that the controllable circuit breaker has a feedback status of “OFF” . PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 26 “ON” but the feedback status is “OFF” . Override Handle “OFF” position No red stripe visible otee: The main handle of the controllable circuit breaker being in the “OFF” position can create the above condition. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 27 “OFF” or in-service for any reason, an individual controllable circuit breaker override should be done instead of a global panelboards override. Tap “Override OFF” button to override “OFF” all the controllable breakers in selected panelboard. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 28 This initializes the controllable circuit breaker handles in all connected panelboards to the “ON” position. You can visibly verify that all controllable circuit breaker handles are in the “ON” position. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 29 Tap the controllable circuit breaker number to be overridden. The yellow “Override” LED on the PRC-E controller otee: will turn off. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 30 The yellow “Override” LED on the PRC-E controller will illuminate indicating an override is active. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 31 Date/Time Icon under the “Configuration” screen. From the “Main Menu” screen, tap the “Configuration” icon. The “Description” is an alphanumeric input that can be up Tap the Date/Time icon. to 20 characters in length. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 32 “Save” button is tapped. Scrolling through Month/Year Tap the arrows beside the Month/Year; this will move the Setting the time month/year forward and backwards. To set an hour, Tap the hour entry field. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 33 This will display the tab for Location entry. If user requires manual date entry, tap the “Manual Dates” radio button. Tap the “Spring” date entry field, PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 34 Controller RS-485 CNET configuration If there is no city in the list in close proximity of your Each PRC-E Series controller must have a unique RS-485 location, manual coordinate inputs can be entered. You CNET address when networked with other PRC controllers.
  • Page 35 Tap the “Network” icon. configuration in this screen. The changes were accepted, but not yet saved in the controller until the red “Save” button is tapped. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 36 The changes were This will display the numeric keypad. accepted, but not yet saved in the controller until the Tap number buttons to input the SOAP port value. red “Save” button is tapped. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 37 To edit the Description of the group, tap the Description entry textbox or the ellipsis. An “OFF” group status is the group letter with a green background. This will display the alphanumeric keyboard. Tap character/numbers buttons to input chosen group description. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 38 Associate a circuit breaker with a group To associate a controllable circuit breaker to the selected group, tap the checkbox next to the target circuit breaker to add a checkmark. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 39 Listed in this screen are all the schedules for the selected group only. Some schedules may be listed on higher numbered otee: lines, scrolling down may be required to view all schedules. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 40 “From” time, and there is no “Until” time specified, so there will not be a reversal of the action. The “Days” field displays the days of the week that the schedule will activate. This includes Sunday(S), Monday(M), Tuesday(T), etc. and Holiday(H). PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 41 “Action” field, and can not be changed. 4-character text in the name textbox, for example, “B101” . The general “Schedules” configuration area allows combination entry of the multiple commands. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 42 “OFFSET” . The offsets are setup as hours and minutes; the “OFFSET” limit is 7 hours and 59 minutes. Available time options are: Absolute ● ● Before Sunrise ● ● After Sunrise ● ● Before Sunset ● ● After Sunset ● ● PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 43 Tap the AM/PM dropdown to and choose the required time. “OFFSET” hours required. “Absolute” will be displayed by default; if not, tap the Tap the “Enter” button. dropdown box and select “Absolute” from the list. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 44 “Save” button to save the changes. Tap the corresponding numbers to input the “From” hour required. Tap the “Enter” button. In “Edit Schedule” screen, tap the minutes entry box for the “From” time. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 45 “Save” button to save the changes. To leave the page without saving changes, just tap the “Back” button. The “Schedules” screen will now display the schedule with an “Action” , “Days” , and a “From” time with no “Until” time. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 46 A holiday can be selected for any month/day of the year and up to 30 holidays can be created in the PRC-E Series controller. A 20-character alphanumeric description can be added to designate the holiday. When a day is selected as a holiday, it is no longer considered a standard day of a week.
  • Page 47 BACnet configuration screen. These settings should be supplied by the BACnet integrator. From the “Main Menu” screen, tap the “Configuration” icon. Tap the “Holiday” line to delete. Tap the “BACnet” icon. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 48 The “Instance” is a unique identifier for the PRC-E controller on the BACnet system. The “Network” is a routing setting that signifies what part of the system this PRC-E Series controller will be associated. The Port is the communication port setting. This is used for the BACnet communications from the PRC-E Series controller.
  • Page 49 The Version” is the firmware version of the PRC Digital Switch. The “Type” is the number of buttons on the switch. The types available are 2-button (2-B), 4-button (4-B), and 6-button (6-B). PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...

  • Page 50: Web

    For further instruction, see the “Logging into the PRC-E Web Page” section of this document (see page 15). PC settings The PRC-E Series controller uses the TCP/IP protocol to Accessing the Web page from the Ethernet communicate on its Maintenance and Ethernet network network connection (PRC2000E only) ports.
  • Page 51 42-circuit panelboard. The odd addresses are assigned as left BCBs and the even addresses are assigned as right BCBs. To configure the panelboards: Click the “System Configuration” tab. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 52 In the Master and PRCEP Left PNL3 panelboards, each BCB should have a unique address of Right PNL3 1–8. See the “BCB Addressing” section of this document.0 Left PNL4 Right PNL4 PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 53 Editing the BCB panelboard configuration Click the BCB textbox to open the dropdown box. Click the “BCB address” button of the BCB that needs to be updated. Click “NONE” to remove BCB from this panelboard. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 54 To accept the panelboard configuration edits, click “Save Changes” . This will open the dropdown list. Once all the panelboard configuration edits are complete, the “Discover Breakers” command must be initiated. Click the “Discover Breakers” button. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 55 To edit the name, click the “Name” text box and type in the chosen text. The “Description” is an alphanumeric input that can be up to 20 characters in length. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 56 If the main handle is “OFF” , the status feedback will always be “OFF” . This screen displays the controllable circuit breaker address, name and commanded state. It also has manual control buttons for the selected circuit breaker. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 57 In the “Breakers” screen, the circuit number should now display “OFF” with a message in red stating “Out of have a white background denoting no override active on the Service” . circuit breaker. Click the “Close” button. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 58 “OFF” button to turn on the group or turn off the group Click the calendar tool button. respectively. All controllable circuit breakers associated with the group will follow the control of the group. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 59 Click the left/right arrows to move from month to month; click the up/down arrow beside the year to move from year to year. Then, click to choose the required date. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 60 This will open the textbox for edit. the changes. Input the time zone hours behind GMT. Once all the Location configuration edits are complete, click the “Save Changes” button to save the changes. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 61 Controller RS-485 CNET configuration Editing the controller “Address” Click the “Address” text or dropdown arrow. Each PRC-E Series controller must have a unique address when networked with other PRC controllers. The address range is 1 to 120. Also, a 4-character alphanumeric name...
  • Page 62 Web page data access. The default port is 8080 but can be edited. Click the “Soap Port” text box. This opens it for edit. Type in the chosen soap port for the controller. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 63 An “ON” group status is the group name with a red background. Click “OK” to accept the changes. An “OFF” group status is the group name with a green background. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 64 To turn OFF the group, click the “OFF” button. The number of circuit breakers associated will be displayed at the top of the Web page. The group status will show “OFF” . PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 65 This can be done as a one time day/date entry, a daily or weekly action, or a one-shot On or Off event. Click the “Input” textbox to open the dropdown list of digital and universal inputs. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 66 In the “Schedules” screen the “From” and “Until” times are displayed in the military format. When entering the time schedules in the “Edit Schedule” screen, the times are entered in the standard format (am/pm). PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 67 “B101 ON” . This example will turn On any circuit breaker with the name B101 at the “From” time and turn it Off at the “Until” time. Use the left/right arrows to navigate through the months. Click to choose the date required. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 68 This opens the textbox for editing. Enter the minutes required. Click the AM/PM dropdown to and choose the required time. Once the time schedule edits are complete, click the “OK” button to save the changes. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 69 “After Sunrise” in our example. If the ”Event” requires a relative start time, follow the “Setting Relative Sunrise/Sunset Schedule” procedure to enter proper “From” start time for the schedule. Click OK to accept the changes. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 70 This opens the box for edit. 30 holidays can be created in the PRC-E Series controller. Type the description of the holiday in the textbox. A 20-character alphanumeric description can be added to designate the holiday.
  • Page 71 BACnet system. Click the “Holiday” tab. The “Network” is a routing setting that signifies what part of the system this PRC-E Series controller will be associated. The Port is the communication port setting. This is used This opens the “Holidays” Web page.
  • Page 72 (PRCLOS) will be required. To create a control, click the “Controls” tab. This opens the “Control” list. Listed are controls created to command internal points, i.e., circuit breakers, groups, outputs, etc. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 73 This opens the box for editing. Input the number of minutes for the time delay. Scroll through and click to choose the two-wire input connected to the controller. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 74 If a Digital Switch does not show in the table, right-click the address line of the DS and choose “Refresh” in the context menu. This should repeat the search for the Digital Switch. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 75 Point” text box of the button to be programmed, this opens the textbox for edit. From this Web page, the DSN description, button actions for controlled points and button feedback can be programmed. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 76 On, it will be commanded Off, and if at the button press the point is Off, it will be commanded On. This opens the textbox for edit. Input the selected analog point address using the keyboard. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 77 This will be the set value of the analog output or the setpoint of the closed-loop feedback from the photocell. This opens the textbox for editing. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 78 Also a 0–10 V analog output is available on Click the dropdown list arrow beside the input box. each switch for dimming. To access the switch sensor input/output configuration, click the “Sensors” tab. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 79 ON and OFF in the host controller. Click the “Digital Point” dropdown arrow of the button to be programmed. This opens the dropdown list for a quick pick of the internal motion sensor input enabling. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 80 (AO) until the photo sensor status is ±1% of the setpoint. This adjustment is slowly ramped for a seamless transition. Setting sensor 1 as a analog Input Click the “Sensors” tab. Click the radio button beside photocell. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 81 To edit the “Default” feedback level value, click the “Default” input box. This opens the box for editing. Input the required numeric value for the default setpoint percentage for the feedback level from photocell at for power up. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...

  • Page 82: Appendix A-Breaker Control Bus (Bcb) Installation

    DISCONNECT THE MAIN POWER FROM THE PANELBOARD. THE FOLLOWING PROCEDURES REQUIRE REMOVAL OF PROTECTIVE The BCB is designed to fit easily into the Eaton PRL1a and COVERS AND SHIELDS RESULTING IN POSSIBLE EXPOSURE TO PRL2a panelboard models. The standard 1a/2a application...
  • Page 83 Pow-R-Line panelboard, make sure all circuit breaker pigtails are clear from any pinching or jamming. Tighten the top and bottom mounting screws. Finally, verify that any branch circuit wiring is clear of the newly installed component. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 84 Reverse the procedure described in Step 2 to replace the deadfront cover over the circuit breakers. Importante: Do not replace the trim, as additional connections to the BCB are required as described in the “Wiring” section of this document. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...

  • Page 85: Appendix B-Digital Switch

    Each pushbutton can be separately programmed to Ivory PRCDS2V switch controllable circuit breakers ON/OFF and/or control PRCDS4V Ivory light output levels when fluorescent or LED lighting fixtures Ivory PRCDS6V are equipped with 0–10 Vdc dimming circuitry. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 86 PIN 7: Brown/white—terminated to 24 Vac common ● ● Figure 35 . Digital Switch Address Rotary Switches PIN 8: Brown—terminated to 24 Vac common ● ● Figure 33 . Digital Switch Hardware Overview PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 87 120/277 Vac power supply connection. Make sure to connect to an unswitched branch circuit. The power injector does not need a network address. otee: Figure 37 . Typical PRC1000E/1500E/2000E Digital Switch Network (DSN) DSN Module Digital Switch Network Connector PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 88 Multiple Occupancy Sensors Single Occupancy Sensor Vdc (12 V) Require Switchpack VDC (12V) w/ Dry-Contact Input Additional Occupancy SP20-## Sensors. Blue (See sensor manuals Blue for further information) R BL R BL PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 89 ● ● and wire. Vibration: stationary application—NEMA Level A ● ● Figure 40 . Typical Cable Installation Kit Certifications FCC and UL approved ● ● Figure 39 . Digital Switch Labeling Example PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 90 Figure 42 . Typical Network Cable Tester ready to test your cables. Figure 41 . RJ-45 Connector and Standard T568B Cable Wiring PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...

  • Page 91: Appendix C-Bacnet Integration

    10.0.0.1 Port 47808 External (LAN) Priority* Internal (LAN) Priority* The BACnet configuration settings are supplied by the Step 2 . Click the “BACnet” tab within this Web page. Building Automation System integrator. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 92 101. The 42nd controllable circuit breaker in the first panelboard will be binary output 142. The second controllable circuit breaker in the third panelboard will be binary output 302, and so on. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 93 Analog Output Priority_Array Present_Value Analog Value Priority_Array Present_Value Device Miscellaneous characteristics Data link layer options: BACnet IP (Annex J) ● ● Segmentation capability: None ● ● Character sets supported: ANSI X3.4 ● ● PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...

  • Page 94: Appendix D-Firmware Updates

    Internet browser and typing the fixed IP address into browser address bar. The controller will prompt the user Press Enter key to continue to access the Upgrade Device for connection credentials required before performing the Firmware webpage. firmware upgrade. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 95 IP address of the controller you are trying to connect to (Figure 47): <xxx .xxx .xxx .xxx> Figure 47 . Connect to the PRC2000E/PRC1500E controllers through the Ethernet network Press Enter key to continue with the connection to the controller. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 96 Click on the Browse button to open the File Explorer (Figure 51). Figure 52 . Locate firmware update file PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 97 It is recommended to perform firmware upgrades after normal operating hours. Controller shall operate normally after the firmware upgrade is finished. PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 98 PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 99 PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com...
  • Page 100 Eaton is dedicated to ensuring that reliable, efficient and safe power is available when it’s needed most. With unparalleled knowledge of electrical power management across industries, experts at Eaton deliver customized, integrated solutions to solve our customers’ most critical challenges.
