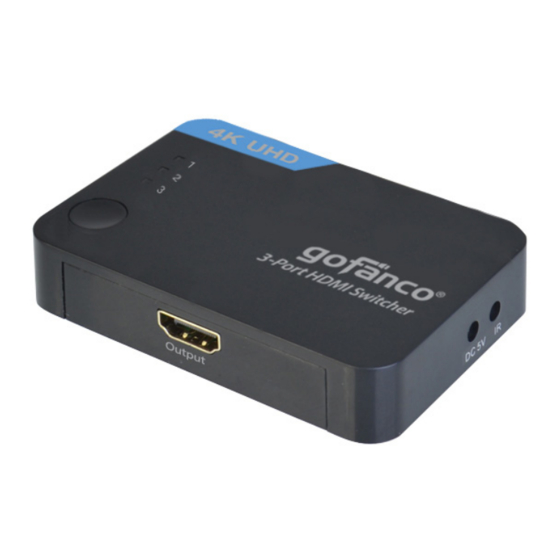

3-Port HDMI Switcher 4K
- Black
P/N: Switcher3P
G4-0026A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Switcher3P and is the answer not in the manual?

Questions and answers

Summary of Contents for gofanco Switcher3P

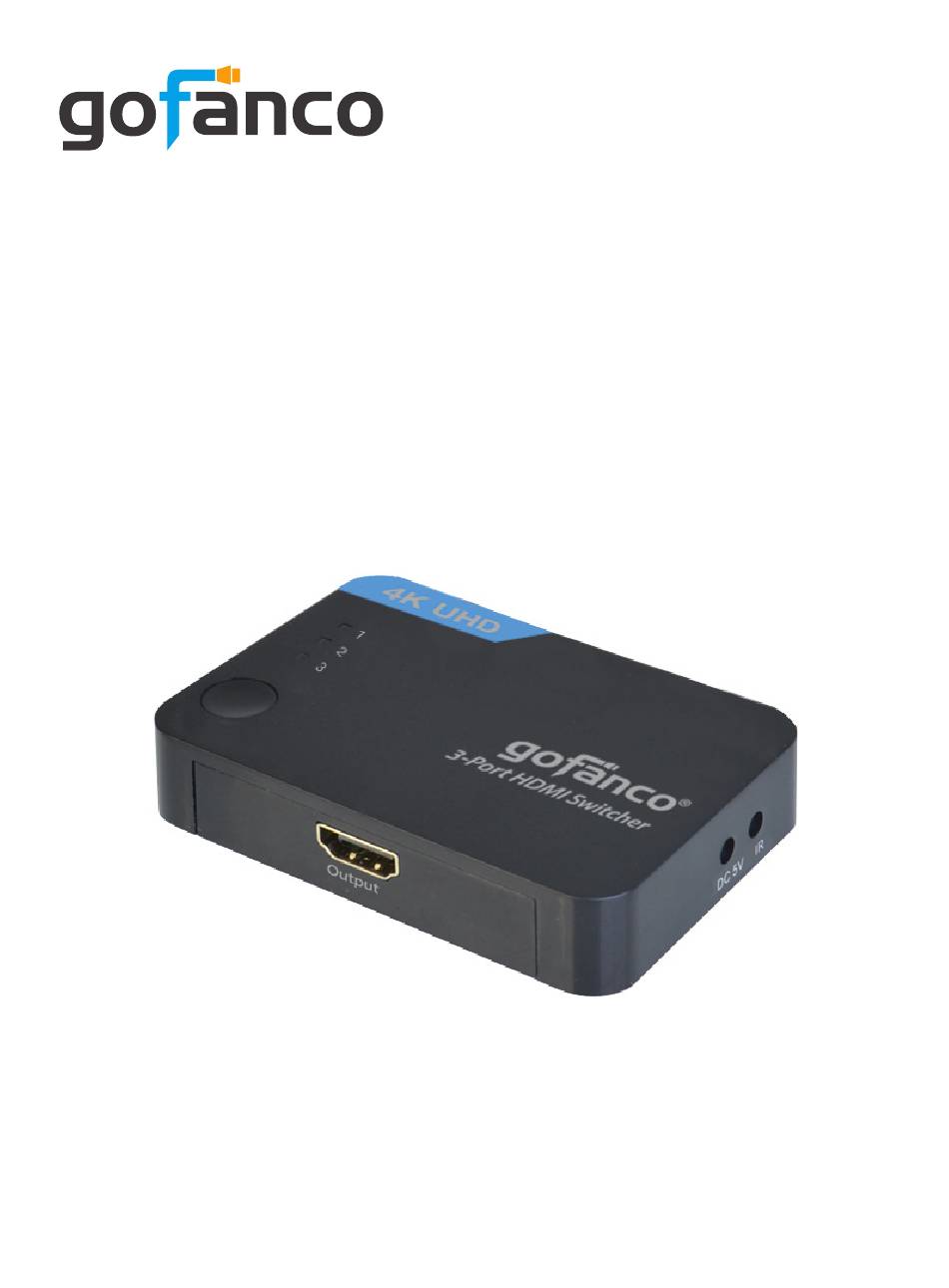

  • Page 1 ® 3-Port HDMI Switcher 4K - Black P/N: Switcher3P G4-0026A...
  • Page 2 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
  • Page 3 Introduction gofanco 3-Port HDMI Switcher 4K - Black (part# Switcher3P) allows any of the 3 HDMI sources to be displayed on one HDMI display and supports ultra-high resolution up to 4K. Specifications Spec. HDMI v1.4 Compliance HDCP 1.4, 36-bit deep Color, 3D Video bandwidth 10.2Gbps...
  • Page 4 Layout Input LEDs Switch IR port Power plug HDM output Figure 1: 3-Port HDMI Switcher 4K - Black • Input LEDs: On when input signals are detected • Switch: Select input source 1, 2, or 3 • HDMI output: Connects to an HDMI display or TV •...
  • Page 5 IR Remote Control Input Select Button Next Figure 3: IR Remote Control • Input Select Button: Select input source 1, 2 or 3 • Next: Select the next input source Figure 4: IR Receiver Extension cable...
  • Page 6 Hardware Installation 1. Power off all source devices and displays. 2. Connect up to 3 HDMI source devices to the switcher's HDMI input ports using HDMI cables (cables not included). 3. Connect your HDMI display to the switcher's HDMI Output with an HDMl cable (cable not included). 4.
  • Page 7 Blank page...
  • Page 8 ® Thank you for choosing gofanco www.gofanco.com...
