- Page 1 3-Port HDMI 2.0 Switch with Alexa User's Guide P/N: Switch3P-HD20 G4-0120A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports • Use the included DC5V power adapter only.
- Page 4 Package Contents • 3-Port HDMI 2.0 Switch with Alexa • Remote control • Power adapter • User's guide Installation Requirements HDMI source devices (computer, DVD player, XBOX, PS3, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) HDMI cables...
- Page 5 Layout Figure 1: Remote Control Press to select the previous source device Press to select the next source device Press 1/2/3 selects the source device directly Press to add the active input source into memory. The input source added to memory will be automatically selected whenever the switch restarts...
- Page 6 Figure 2: Back Panel HDMI Inputs 1-3: Connect your HDMI source devices here HDMI Output: Connect your HDMI display here Figure 3: Side Panel Power Jack: Connect the included 5V/1A power adapter here...

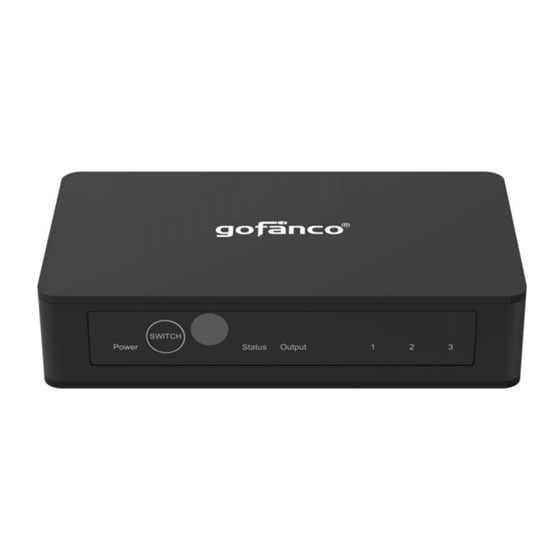

- Page 7 Figure 4: Front Panel Power LED: On when the switcher is powered on Switch: Quick press to switch between input devices. Long press to reset the WiFi signal 10. IR Receiver window: Receives IR signal from the included remote control 11.
- Page 8 Hardware Installation Power off all devices including your HDMI source(s) and HDMI display. Connect your HDMI source devices to the Switch's HDMI Input connectors with HDMI cables (HDMI cables not included). Connect your HDMI display to the Switch's HDMI output connector with an HDMI cable (HDMI cable not included).
- Page 9 Connection Diagram...
- Page 10 App Control Scan the QR code to download the Magic Home app from Google Play or Apple Store and install it. Open the Magic Home app, sign up for an account with your phone or email, then sign into the app. Select United States as the login area.
- Page 11 After entering the app, click Home icon located on the lower left of the screen and select Add Device, then select the Universal Remote icon. Hold down the Switch's Switch select button for 10 seconds to reset the WiFi module. Release the button when the WiFi Status LED starts to flicker quickly.
- Page 12 Select the WiFi to connect to, only 2.4GHz band is supported, guest mode is not recommended to avoid matching issues with between phone or other devices when using the app. Enter you password and click Next to continue. The WiFi status LED will flicker fast to slow and finally Off when pairing is complete.
- Page 13 Add the switcher to a room.
- Page 14 Amazon Alexa Control Go to https://alexa.amazon.com and log into your Amazon Alexa account or create your Amazon Alexa account before continuing with the setup. Note: An Amazon Alexa device is required. Activate and link the Magic Home Lite app. At the Amazon Alexa page, select Skills option and enter Magic Home Lite, then click Search.
- Page 15 Confirm #1 and #2, click Confirmed, and click Next. Select American region as default, regardless of which country you're in, and click Next.
- Page 16 Sign into your Magic Home account. The Magic Home app has been successfully linked and you can use Alexa voice control to switch source devices.
- Page 17 Alexa Voice Command List...
- Page 18 FAQ & Solutions There is no video output or audio and video display is not normal. 1) Check the power adapter connection and make sure the Switch's Power LED is on. 2) Check whether the HDMI cables are connected properly. 3) Check the TV is set to the correct HDMI input.
-
Page 19: Specifications
Specifications... - Page 20 We reserve the right to make changes without prior notice to a product or system described herein to improve reliability, function, or design. Thank you for choosing gofanco www.gofanco.com...
